Sony CDP-CE525 - Main Section Schematic Diagrams; Main Board Schematic (1;2)

– 23 – – 24 –
CDP-CE525

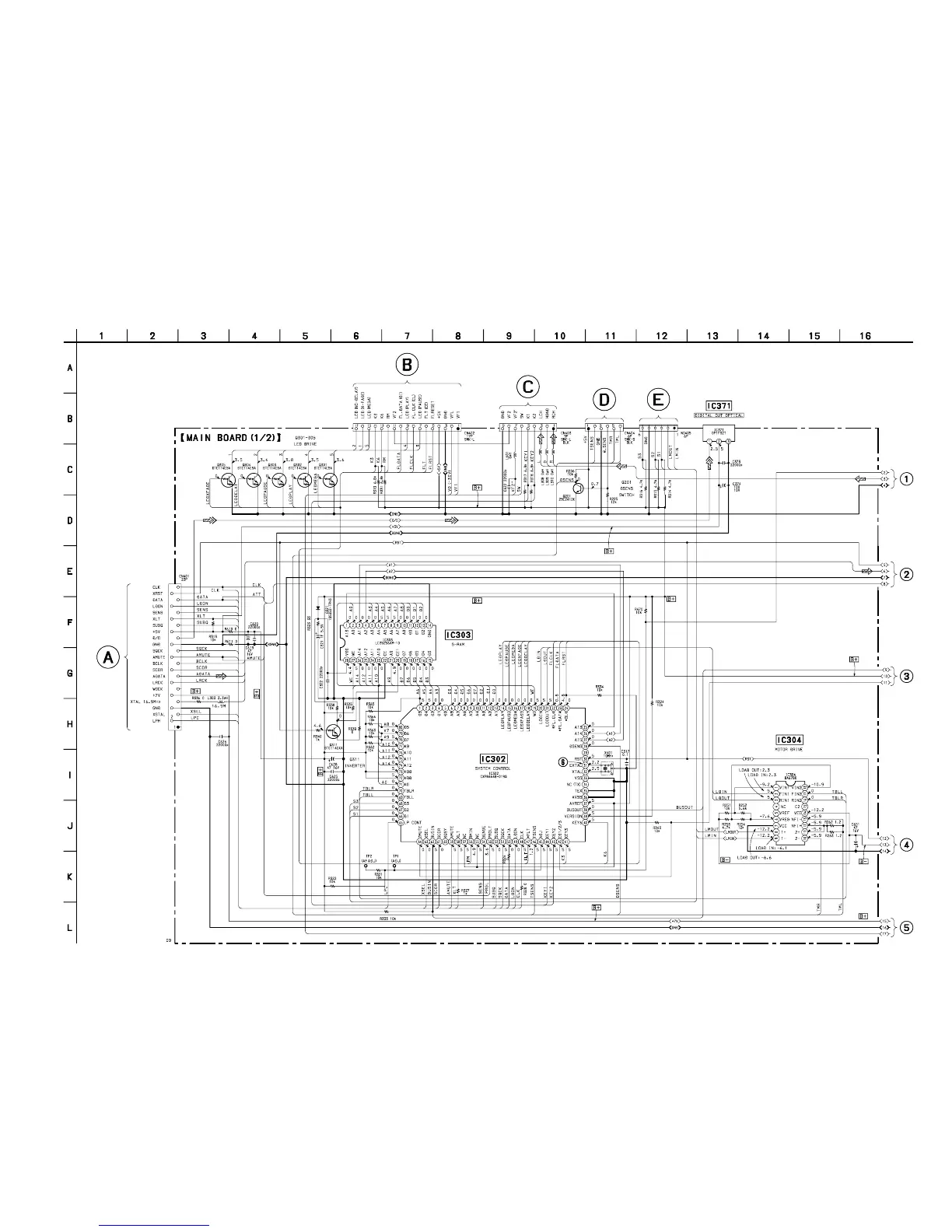

6-5. SCHEMATIC DIAGRAM – MAIN (1/2) SECTION –
• See page 16 for Waveforms.
• See page 35 for IC Pin Functions.
• See page 39 for IC Block Diagrams.
(Page 17)
(Page 29)
(Page 30)
(Page 27)
(Page 27)
(Page 25)
(Page 25)
(Page 25)
(Page 25)
(Page 25)
