Sony CDX-2250 - Chassis (T) Sub ASSY; Lever ASSY

– 13 –

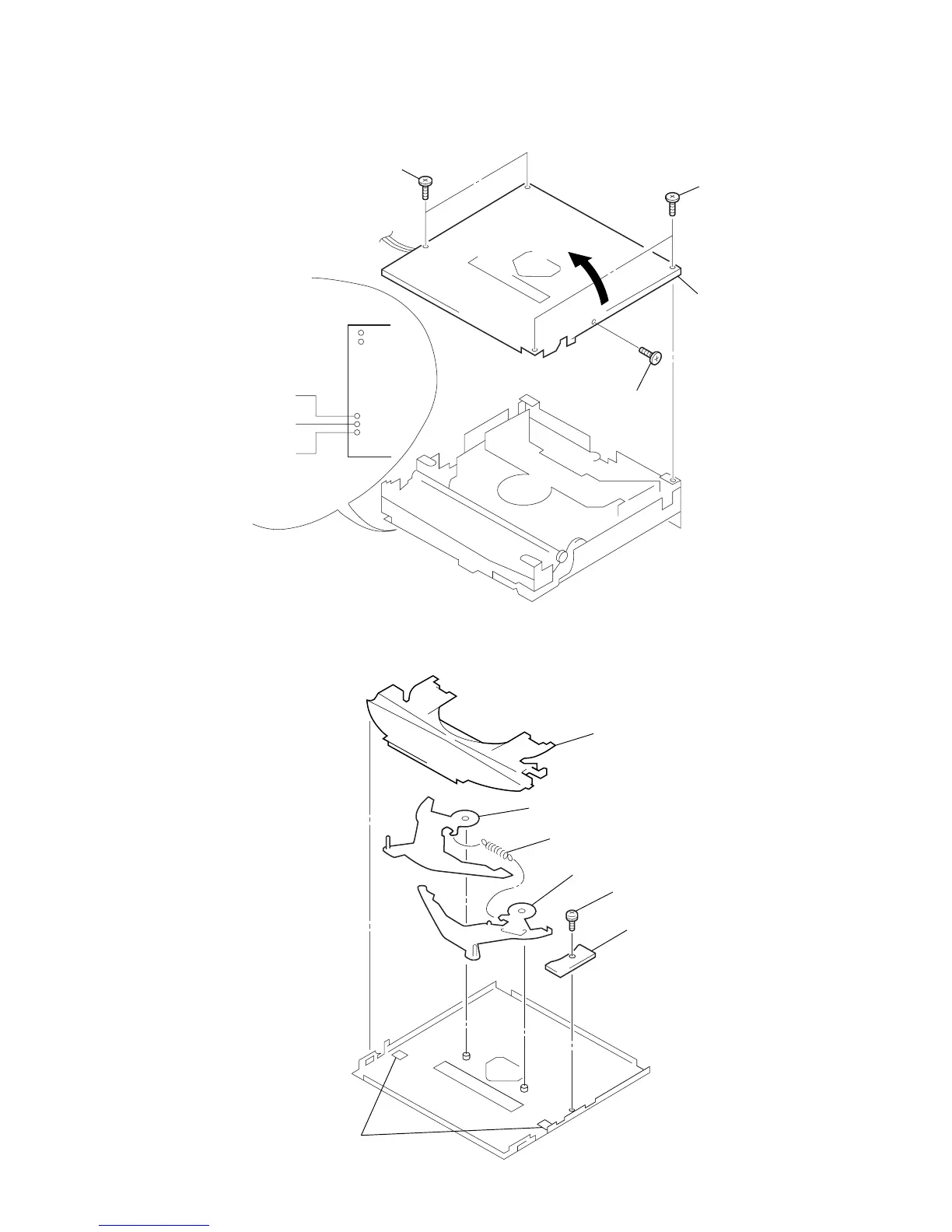

2-7. CHASSIS (T) SUB ASSY
2-8. LEVER ASSY
5 chassis (T) sub ass
y
2 P 2x3
4 P 2x3
3 P 2x3
1 Unsolder the
lead wires.
red
white
black
4 claws
2 DISCIN board
7 lever (L) assy
3 tension spring (LR)
6 lever (R) assy
5 guide (disc)
1 PS 2x4
