SECTION 5
EXPLODED VIEWS

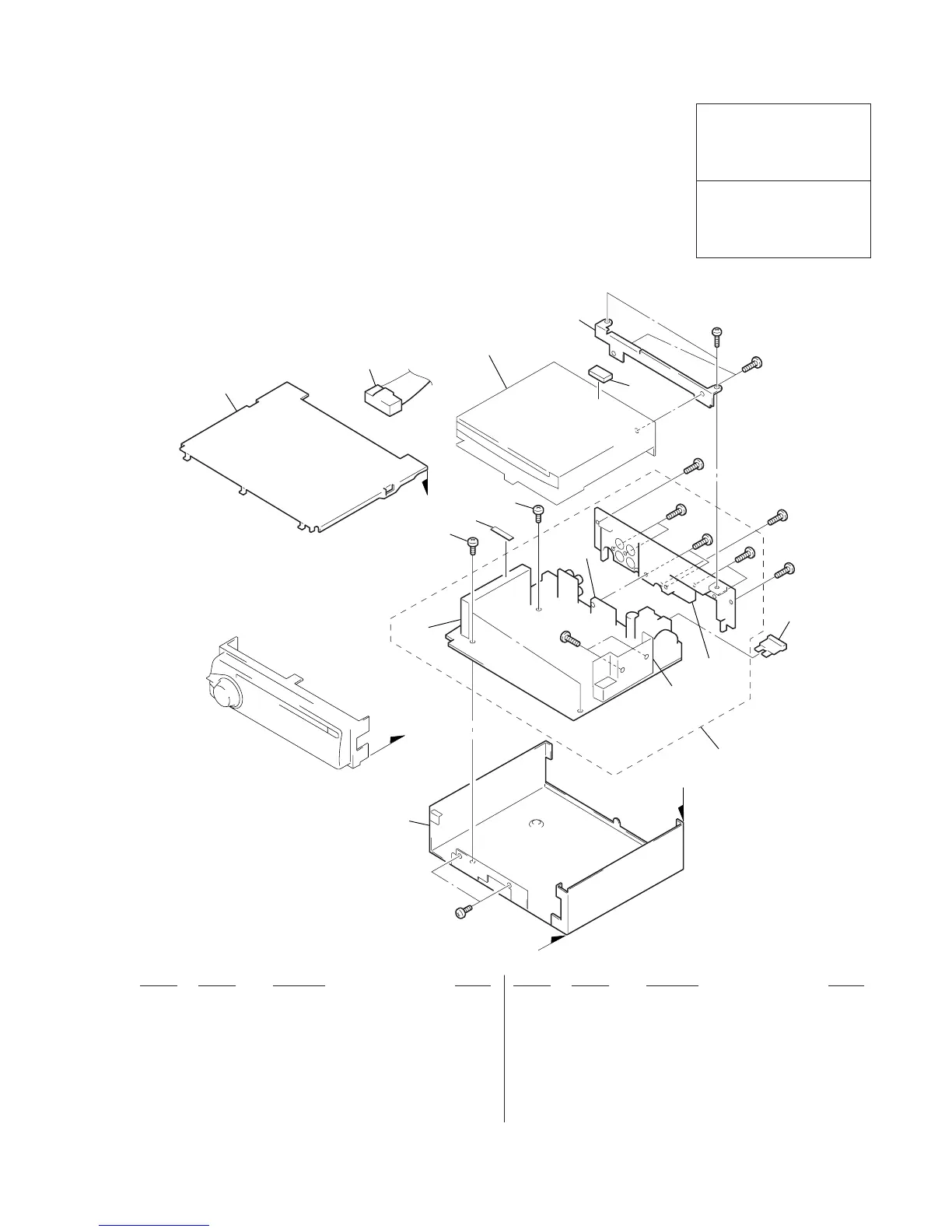

5-1. CHASSIS SECTION
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . . (RED)
ÂÂ
Parts color Cabinets color
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 7 3-030-849-01 HEAT SINK (T)
* 8 3-019-565-01 BRACKET (IC)
* 9 3-030-850-01 HEAT SINK (REG)
* 10 3-024-285-01 CUSHION (RUBBER)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TU01 A-3301-697-A TUNER ASSY
* 1 3-030-925-01 COVER
* 2 3-030-876-01 CHASSIS
3 1-769-786-81 CORD (WITH CONNECTOR) (POWER)
* 4 3-030-927-01 BRACKET (MD)
5 3-922-535-11 SCREW (+BTT)
* 6 A-3294-553-A MAIN BOARD, COMPLETE (CDX-2250)
* 6 A-3294-635-A MAIN BOARD, COMPLETE (CDX-3500)
