Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
• U : B+ Line.
• Power voltage is dc 14.4V and fed with regulated dc power
supply from ACC and BATT cords.
• C : panel designation.
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.

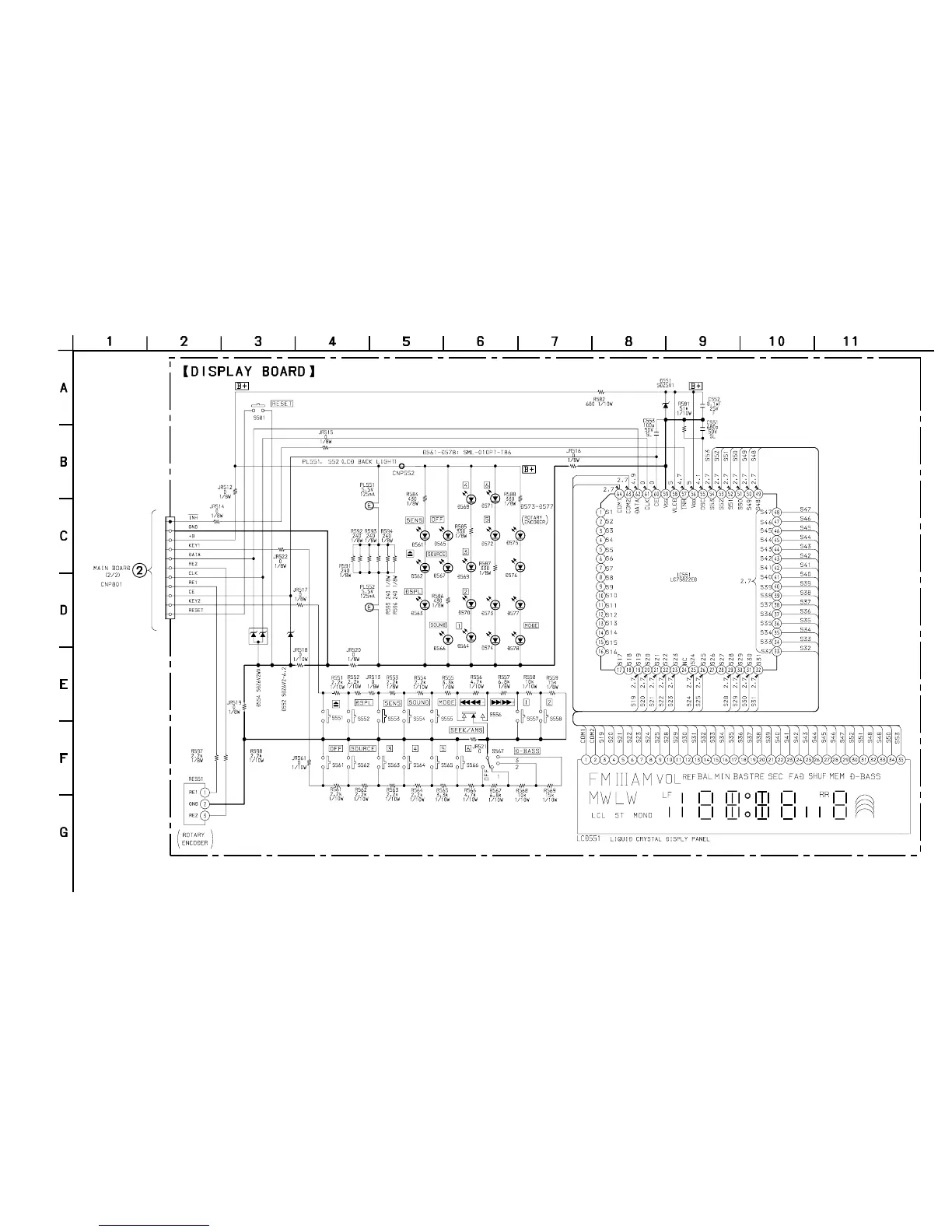

4-6. SCHEMATIC DIAGRAM — DISPLAY SECTION —
– 29 – – 30 –
CDX-2250/3500
(Page 36)
To Next Page
