Sony CDX-2250 - Schematic Diagram -CD Mechanism Section

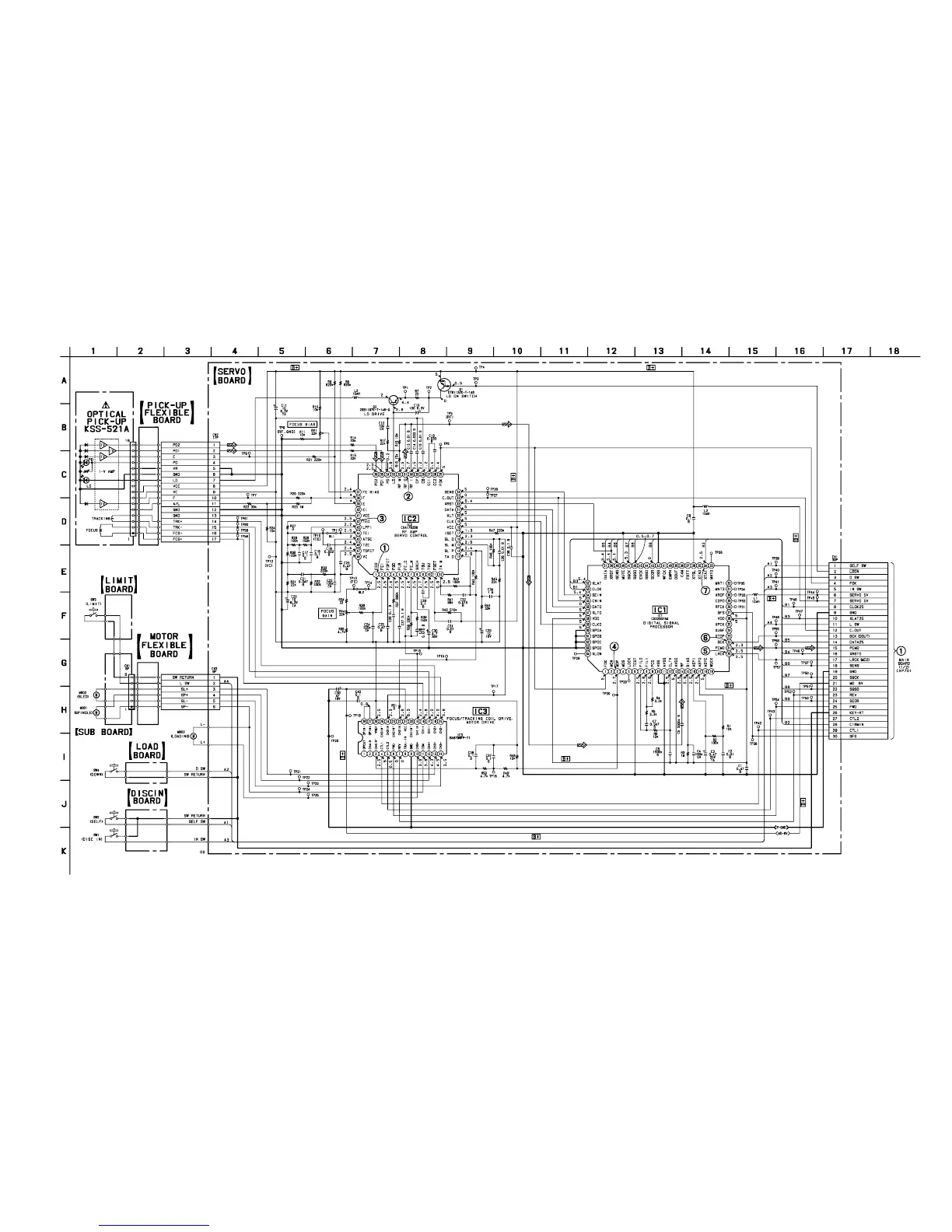

4-4. SCHEMATIC DIAGRAM — CD MECHANISM SECTION — • Refer to page 22 for Waveforms and Note and page 37 for IC Block Diagrams.
CDX-2250/3500
– 25 – – 26 –
(Page
33)
