Sony CDX-2250 - Printed Wiring Board -Main Section

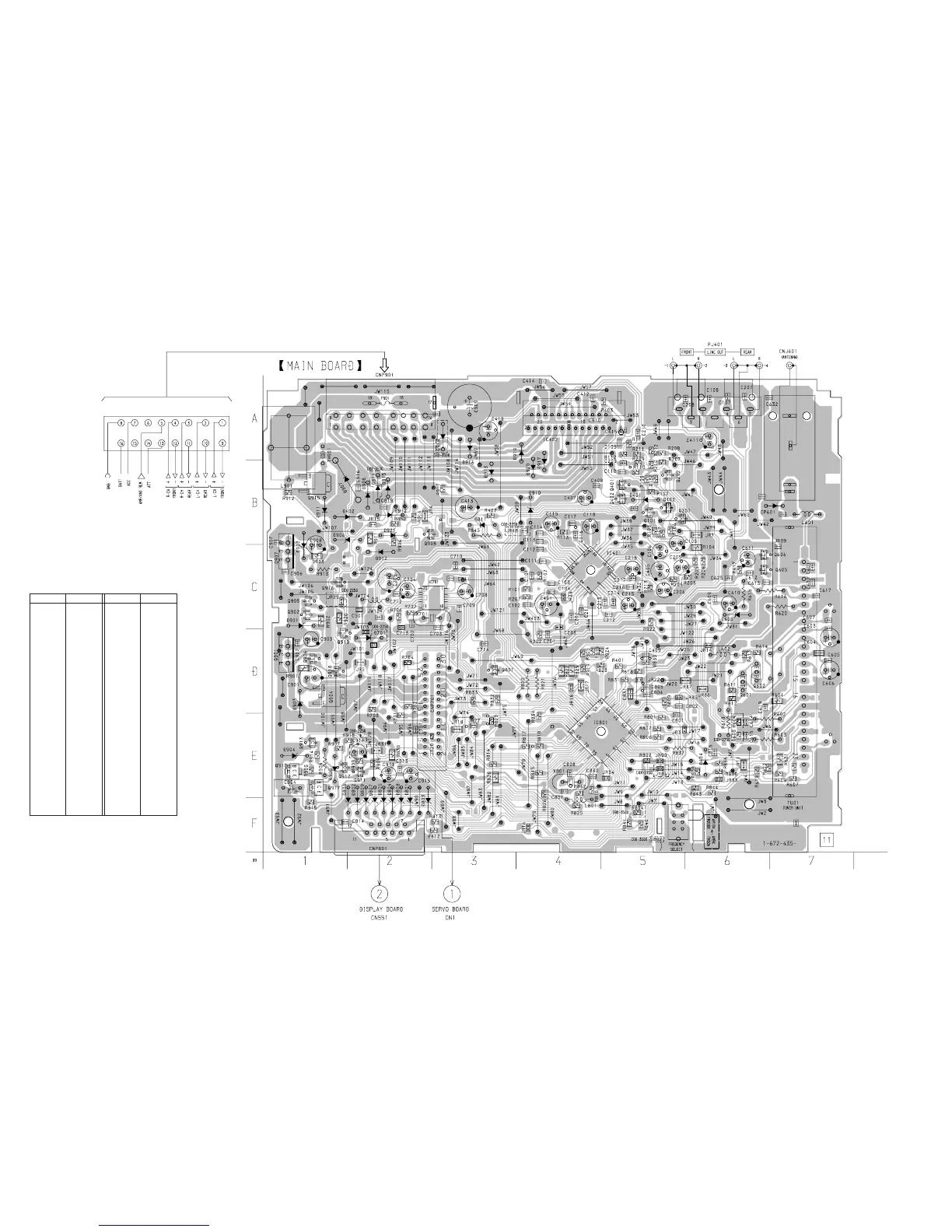

4-7. PRINTED WIRING BOARD — MAIN SECTION —
Ref. No. Location
• Semiconductor Location
Ref. No. Location
Note:
• X : parts extracted from the component side.
•
¢
: internal component.
• b : Pattern from the side which enables seeing.
• Abbreviation
CND : Canadian model.
– 31 – – 32 –
CDX-2250/3500
Q102 B-5
Q201 B-5
Q202 B-5
Q401 B-5
Q402 B-5
Q601 D-6
Q602 D-6
Q605 C-6
Q606 C-6
Q801 D-3
Q901 D-1
Q902 C-1
Q904 D-1
Q905 C-1
Q906 D-1
Q907 C-1
Q908 B-2
Q909 B-3
Q910 E-1
Q911 E-2
Q912 E-1
Q913 E-1
Q915 B-1
Q916 C-1
Q917 E-1
Q918 D-1
D401 B-5
D402 B-1
D604 E-6
D701 D-2
D811 B-3
D812 B-2
D901 C-1
D902 B-1
D903 D-1
D904 E-1
D905 E-1
D906 B-1
D907 B-1
D908 B-2
D910 B-4
D911 B-1
D914 B-2
D916 A-3
D917 B-4
D918 A-3
IC401 C-4
IC402 A-4
IC701 C-2
IC801 E-4
Q101 B-5
