SECTION 4
EXPLODED VIEWS
Ref. No. Part No. Description Remark

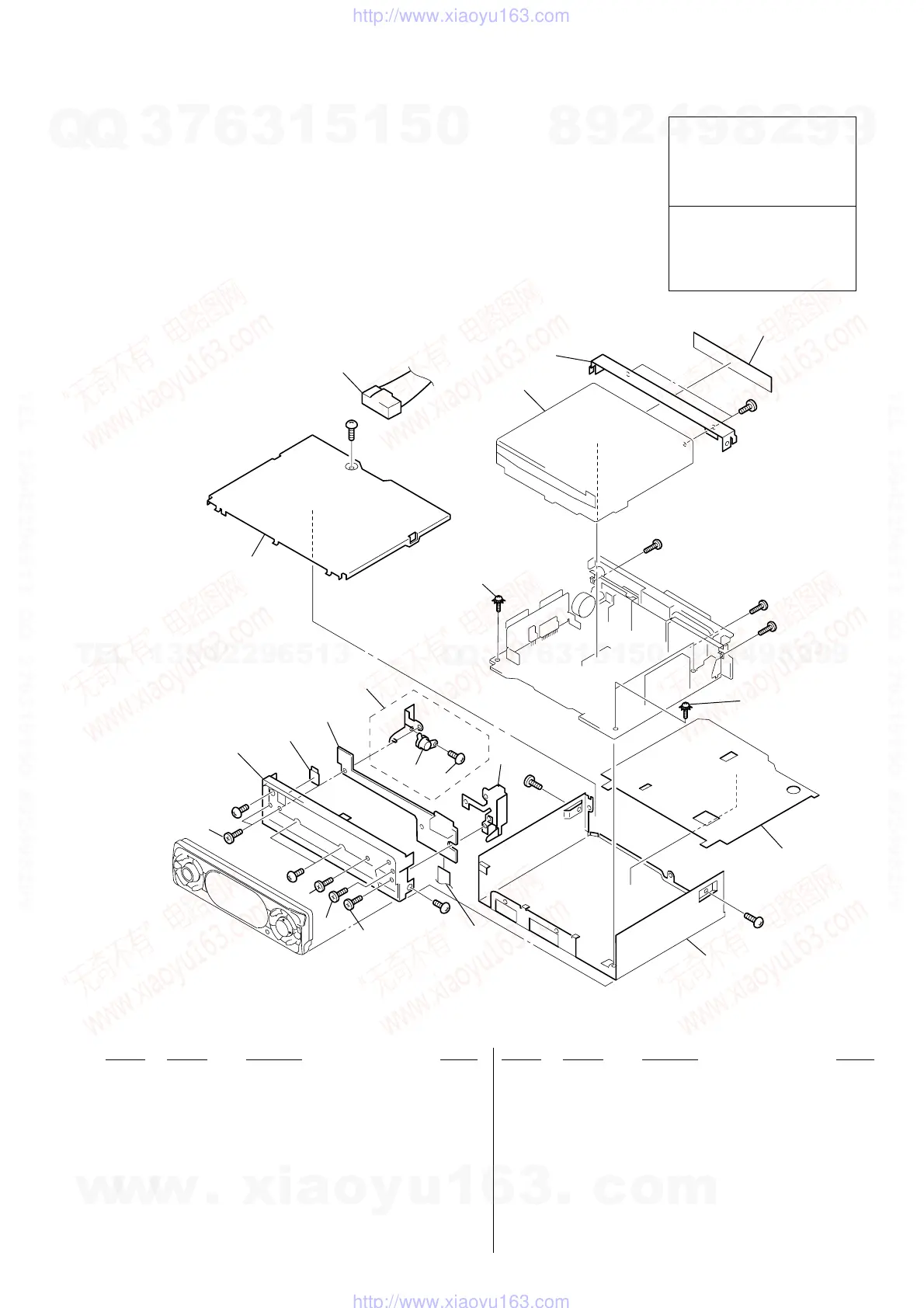

4-1. CHASSIS SECTION
Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
• Abbreviation
CND: Canadian model
RR
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
1 X-3381-275-1 PANEL ASSY, SUB
2 3-040-990-01 BUTTON (EJECT)
* 3 1-680-762-11 SUB (CD) BOARD
4 X-3376-699-6 GEAR ASSY
5 3-030-909-03 DAMPER, OIL
6 3-713-786-51 SCREW +P 2X3
7 X-3381-381-1 LOCK ASSY
8 3-223-782-21 COVER
9 1-776-207-82 CORD (WITH CONNECTOR) (POWER) (US,CND)
9 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP,UK)
10 3-041-012-11 BRACKET (CD)
* 11 3-227-287-01 SHEET, DUST PROTECTION
12 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
* 13 3-224-755-01 SHEET, INSULATING
14 3-223-781-21 CHASSIS
15 1-792-195-11 CABLE, FLEXIBLE FLAT (14 CORE) (CNP802)
16 3-047-812-01 SCREW (LOCK)
17 3-042-244-01 SCREW (T)
#1 7-685-790-01 SCREW +PTT 2.6X4 (S)
#2 7-685-792-09 SCREW +PTT 2.6X6 (S)
