CDX-CA700/CA700X

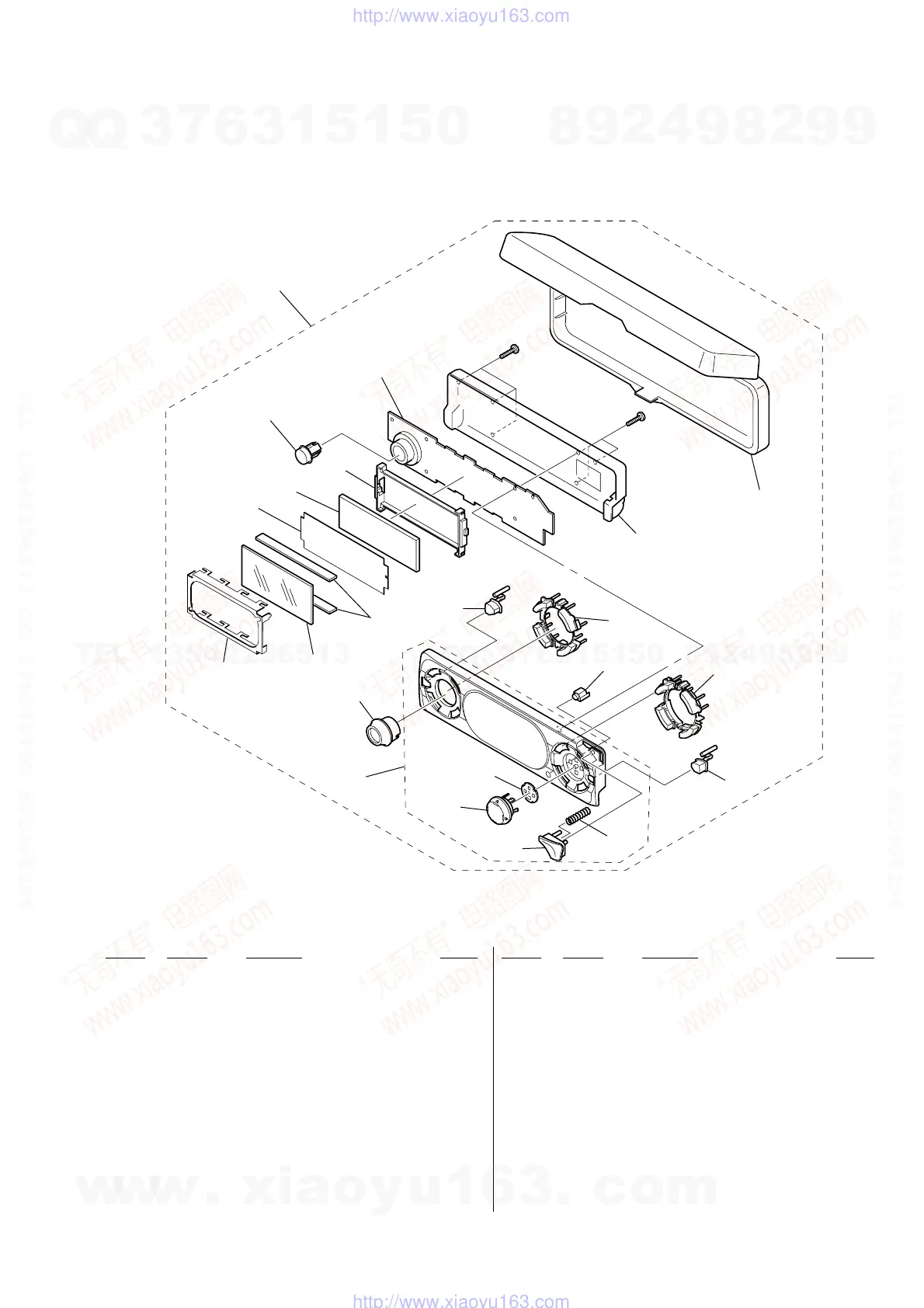

4-3. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
101
102
103
104
105
107
108
109
110
111
112
113
114
115
116
117
118
119
120
#8
#8
LCD901
not supplied
not supplied
(KEY board)
101 3-236-267-01 BUTTON (R) (AEP,UK)
101 3-236-267-11 BUTTON (R) (US,CND)
102 3-236-269-01 BUTTON (EQ7)
103 3-037-267-01 SPRING (OPEN)
104 3-236-273-01 BUTTON (OPEN)
105 3-236-271-01 BUTTON (4-DIR)
107 X-3381-627-1 PANEL (SV) ASSY, FRONT (CA700X:AEP,UK)
107 X-3381-628-1 PANEL (SV) ASSY, FRONT (CA700)
107 X-3381-629-1 PANEL (SV) ASSY, FRONT (US,CND)
108 3-236-272-01 KNOB (VOL)
109 3-236-280-01 WINDOW, RAY CATCHER
110 3-236-266-01 BUTTON (L) (AEP,UK)
110 3-236-266-11 BUTTON (L) (US,CND)
111 3-236-268-01 BUTTON (WL)
112 3-236-284-01 PLATE (LCD), GROUND
113 1-694-882-11 CONDUCTIVE BOARD, CONNECTION
114 3-236-438-01 ILLUMINATOR (LCD)
115 3-236-278-01 PLATE (LCD), LIGHT GUIDE
116 3-236-279-01 HOLDER
117 3-236-270-01 BUTTON (SOURCE)
118 X-3381-274-1 PANEL ASSY, FRONT BACK
119 X-3378-490-2 CASE (PANEL) ASSY (for FRONT PANEL)
120 A-3337-021-A PANEL COMPLETE ASSY, FRONT (CA700)
120 A-3337-023-A PANEL COMPLETE ASSY, FRONT
(CA700X:AEP,UK)
120 A-3337-052-A PANEL COMPLETE ASSY, FRONT (US,CND)
LCD901 1-804-619-11 DISPLAY PANEL, LIQUID CRYSTAL
#8 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
