CDX-CA700/CA700X
M902
M901
#9
#9
#12
256
262
259
260
255
258
261
254
253
252
257
251
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

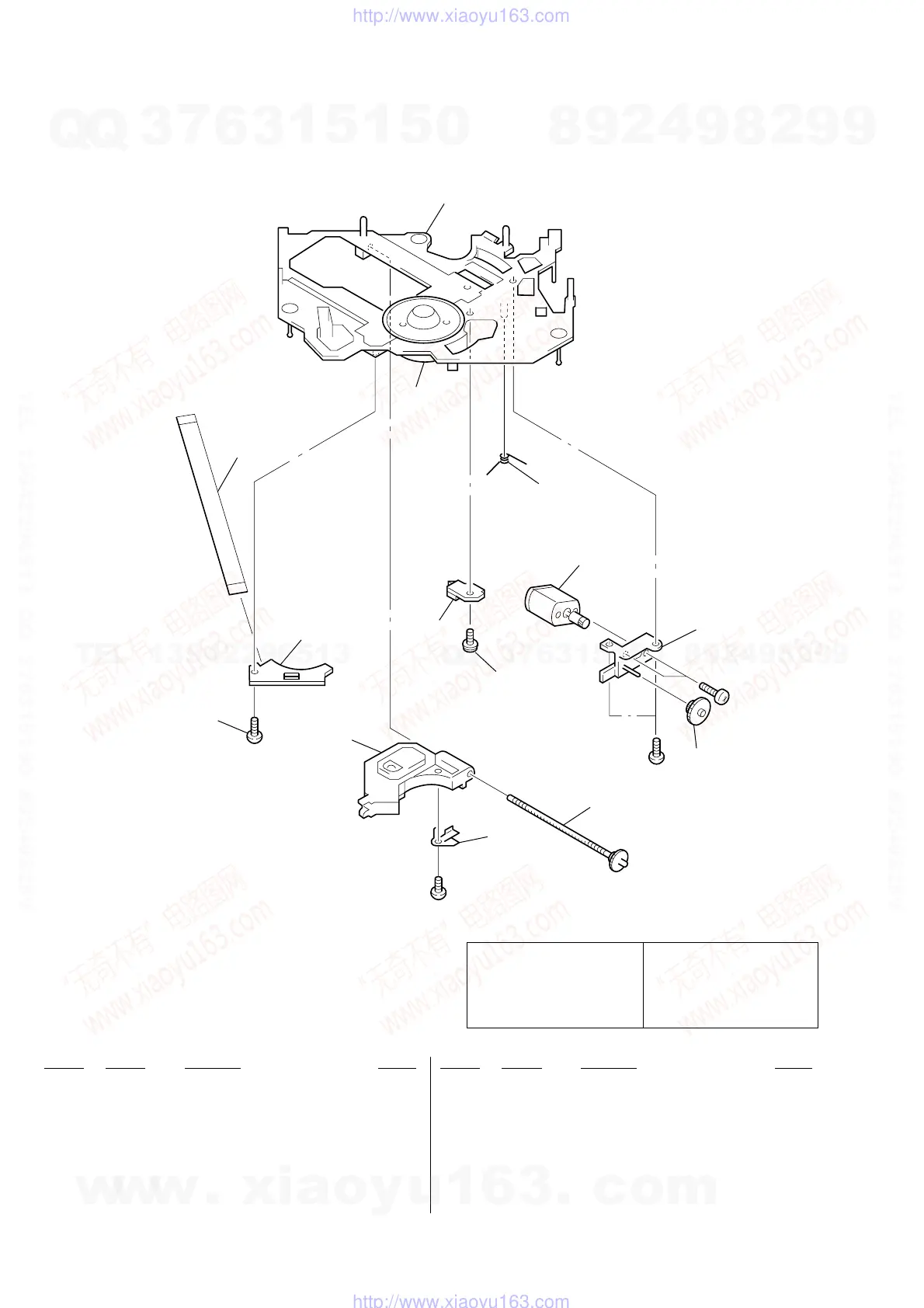

4-6. CD MECHANISM SECTION (3)
(MG-393XA-121//Q)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
251 X-3381-611-1 CHASSIS (OP) ASSY (including M901)
252 3-043-494-01 SPRING (SL), TORSION
253 3-040-170-01 BASE (DRIVING)
254 3-040-419-01 GEAR (MIDWAY)
255 A-3291-669-A SHAFT (FEED) ASSY
256 3-025-743-01 SPRING (FEED), LEAF
257 1-683-665-11 MOTOR FLEXIBLE BOARD
258 1-659-834-11 SUB BOARD
259 3-909-607-01 SCREW
0 260 8-820-103-11 PICK-UP, OPTICAL KSS-720A/C-RP
261 1-659-835-12 LIMIT BOARD
262 3-338-737-01 SCREW (2X3), +PS
M902 A-3291-674-A MOTOR ASSY, SLED (SLED)
#9 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
#12 7-627-850-28 SCREW, PRECISION +P 1.4X3
