CDX-CA700/CA700X
151
152
153
154
155
161
159
156
160
158
157
#9
#9
#11
#11
#9
#10
M903
C
C
not supplied
not supplied
not supplied
not
supplied

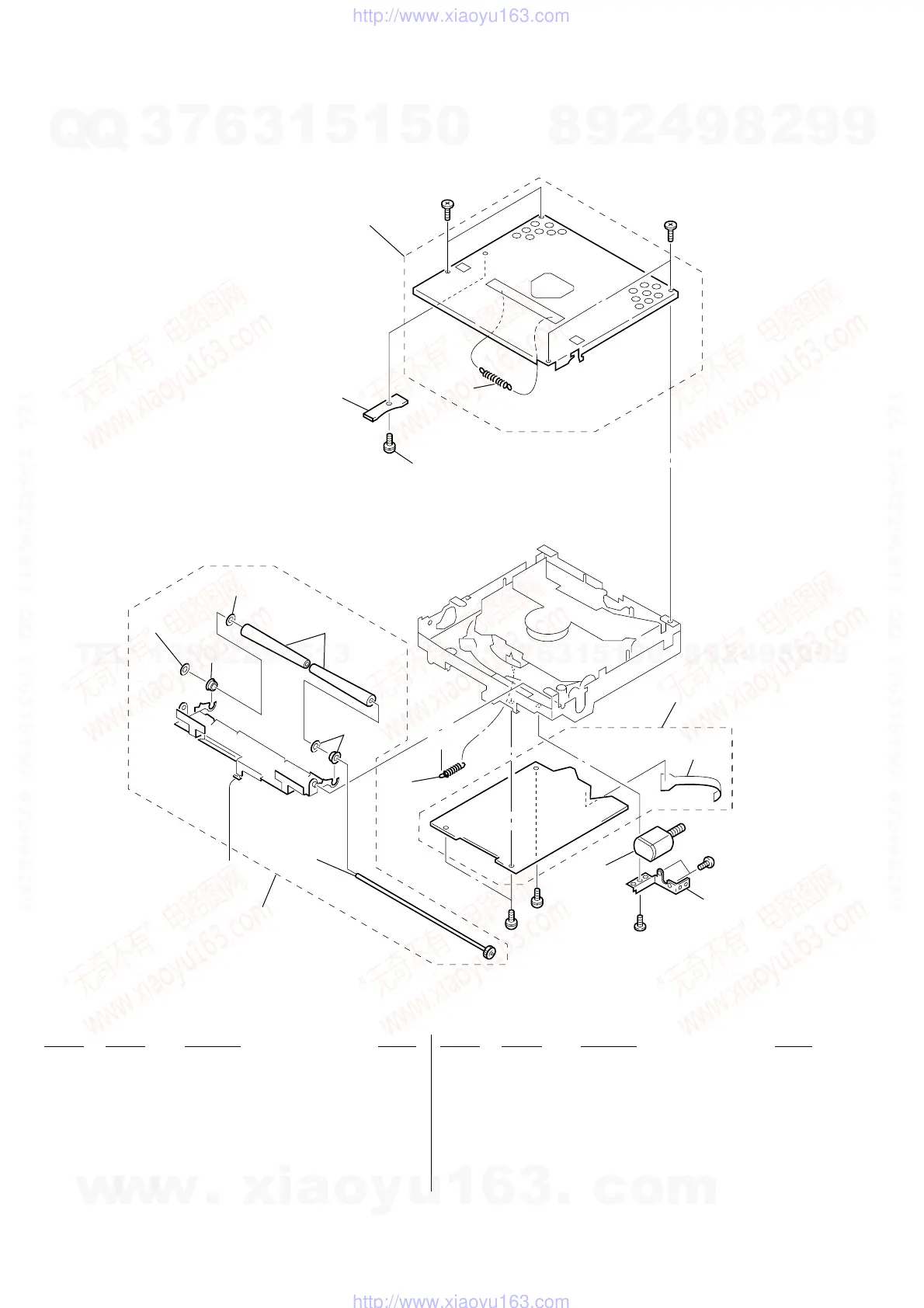

4-4. CD MECHANISM SECTION (1)
(MG-393XA-121//Q)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 A-3315-247-B CHASSIS (T.U) ASSY
152 3-931-909-01 SPRING (LR), TENSION
153 1-659-836-11 DISC IN BOARD
154 3-338-737-01 SCREW (2X3), +PS
155 A-3315-040-A ROLLER ASSY, ARM
156 A-3283-270-A SERVO BOARD, COMPLETE
157 1-683-666-11 PICK-UP FLEXIBLE BOARD
* 158 3-039-629-02 BRACKET (MOTOR)
159 3-225-784-01 SPRING (RA3), TENSION
160 3-933-152-03 ROLLER (S)
161 3-931-913-11 RING (ROLLER), RETAINING
M903 A-3315-039-A MOTOR SUB ASSY, LD (LOADING)
#9 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
#10 7-627-553-17 SCREW, PRECISION +P 2X2 TYPE3
#11 7-628-253-00 SCREW +PS 2X4
