CDX-CA700/CA700X
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
< DIODE >
LED801 8-719-082-38 LED CL-270SR-C-TS (CD WINDOW) (CA700X)
LED801 8-719-082-40 LED CL-270FG-C-TS (CD WINDOW) (CA700)
< SWITCH >
LSW801 1-771-883-11 SWITCH, TACTILE (WITH LED) (Z) (CA700X)
LSW801 1-786-113-11 SWITCH, TACTILE (WITH LED) (Z) (CA700)
*************************************************************
MISCELLANEOUS
***************
9 1-776-207-82 CORD (WITH CONNECTOR) (POWER) (US,CND)
9 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP,UK)
251 X-3381-611-1 CHASSIS (OP) ASSY (including M901)
0 260 8-820-103-11 PICK-UP, OPTICAL KSS-720A/C-RP
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M902 A-3291-674-A MOTOR ASSY, SLED (SLED)
M903 A-3315-039-A MOTOR SUB ASSY, LD (LOADING)
*************************************************************
ACCESSORIES
************
1-477-110-21 REMOTE COMMANDER (RM-X118)
3-230-047-01 LID, BATTERY CASE (for RM-X118)
3-237-606-11 MANUAL, INSTRUCTION (ENGLISH,GERMAN,
FRENCH,ITALIAN,DUTCH) (AEP,UK)
3-237-608-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
GERMAN,FRENCH,ITALIAN,DUTCH)
(AEP,UK)
3-237-887-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
(US,CND)
3-237-888-11 MANUAL, INSTRUCTION INSTALL (ENGLISH,
FRENCH) (US,CND)
X-3378-490-2 CASE (PANEL) ASSY (for FRONT PANEL)
*************************************************************

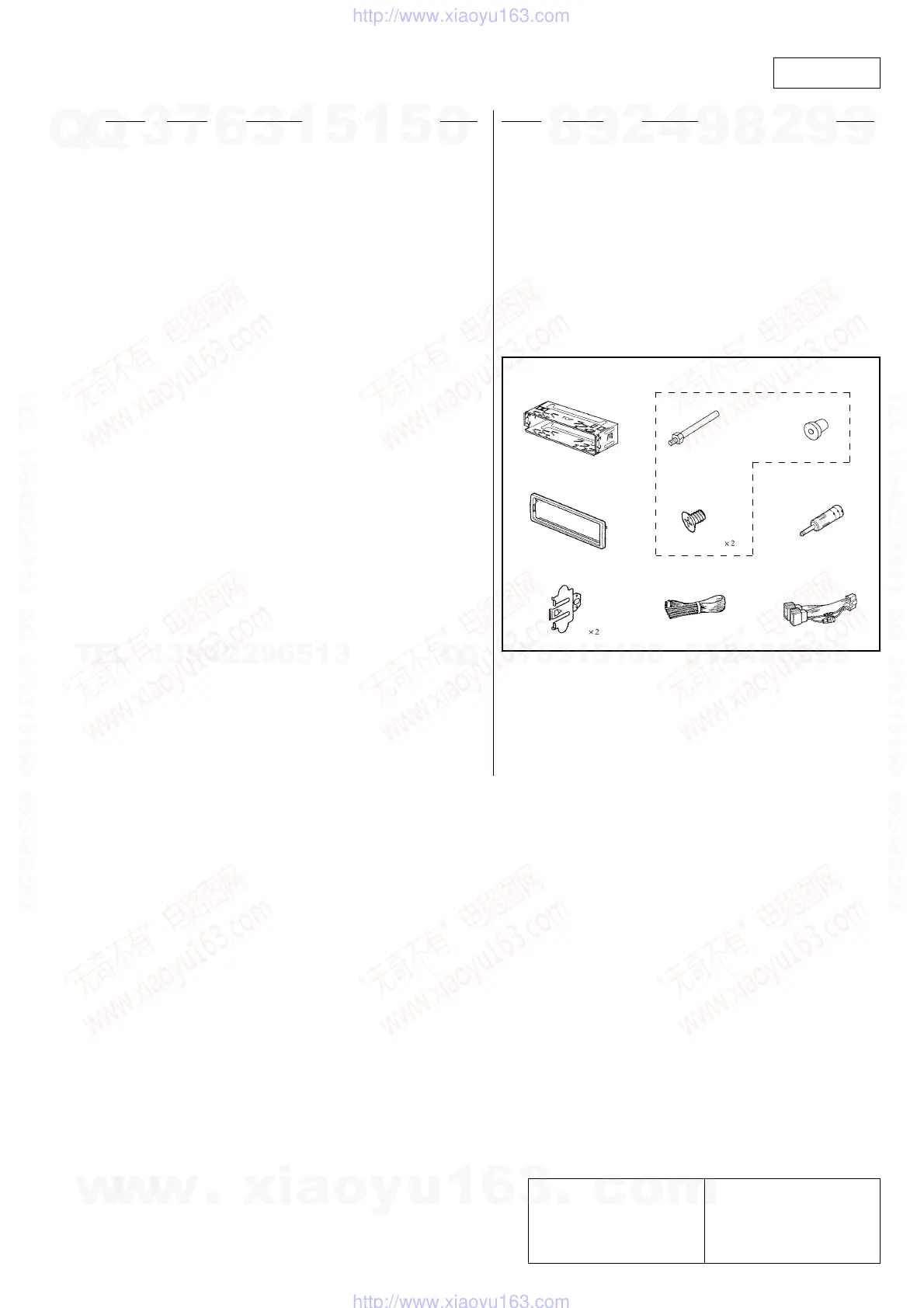

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
301 3-237-206-21 FRAME, FITTING
302 X-3381-148-1 SCREW ASSY (BS2), FITTING (AEP,UK)
303 3-349-410-11 BUSHING (AEP,UK)
304 3-236-447-01 COLLAR
305 3-934-325-01 SCREW, +K (5X8) TAPPING
306 1-465-459-21 ADAPTOR, ANTENNA (AEP,UK)
307 3-233-644-01 SPRING, FITTING
308 1-776-207-82 CORD (WITH CONNECTOR) (POWER) (US,CND)
309 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP,UK)
SUB (CD)
302301
304
303
305 306
307 308 309
