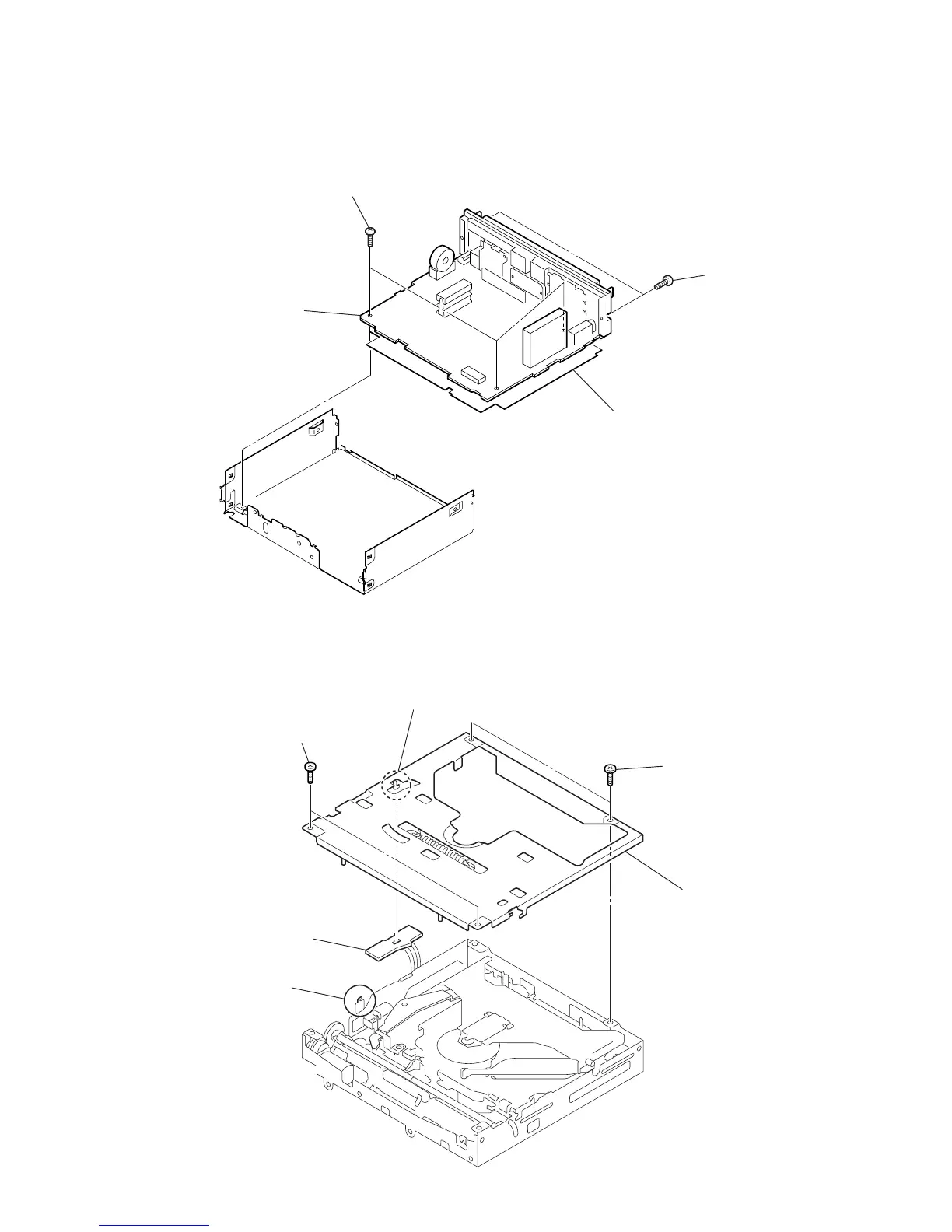

CDX-F5510/F5510X/F5550EE
2-4. CHASSIS (T) SUB
ASSY
2-3. MAIN BOARD
1
three screws
(+BTT)
3
MAIN board
2
two
screws
(+PTT 2.6
x
6)
insulating sheet
5
SENSOR board
6
chassis (T) sub assy
4
claw
3
claw
1
two
screws
(+P 1.7
x
2.2)
2
two
screws
(+P 1.7
x
2.2)
10
12
Table of Contents
Français
4
Default Chapter
4
Table of Contents
4
1 General
5
Location of Controls
5
Card Remote Commander
5
Connections
6
2 Disassembly
9
Sub Panel Assy (CD)
9
CD Mechanism Block
9
Main Board
11
Chassis (T) Sub Assy
11
Roller Arm Assy
12
Chassis (OP) Assy
12
Optical Pick-Up
13
SL Motor Assy (M902)
13
LE Motor Assy (M903)
14
Servo Board
14
3 Diagrams
15
Block Diagram -CD Section
15
Block Diagram -Main Section
16
Block Diagram -Display Section
17
Circuit Boards Location
17
Schematic Diagram -CD Mechanism Section (2/2)
21
Schematic Diagram -Main Section (1/3)
23
Schematic Diagram -Main Section (3/3)
24
Printed Wiring Boards -Main Section
25
Printed Wiring Board -Relay Section
26
Printed Wiring Board -Display Section
27
Schematic Diagram -Display Section
28
4 Exploded Views
36
Main Section
36
Front Panel Section
37
CD Mechanism Section (1)
38
CD Mechanism Section (2)
39
CD Mechanism Section (3)
40
CD Mechanism Section (4)
41
5 Electrical Parts List
42
English
52
1 Diagrams
53
CDX-F5510/F5510X/F5550Ee Section
53
Printed Wiring Boards -CD Mechanism Section
54
Schematic Diagram -CD Mechanism Section (2/2)
56
Schematic Diagram -Main Section (1/3)
57
Schematic Diagram -Main Section (2/3)
58
Schematic Diagram -Main Section (3/3)
59
Printed Wiring Boards -Main Section
60
Printed Wiring Board -Relay Section
61
Schematic Diagram -Relay Section
61
2 Exploded Views
63
Main Section
63
CD Mechanism Section (1)
64
CD Mechanism Section (2)
65
CD Mechanism Section (3)
66
CD Mechanism Section (4)
67
3 Electrical Parts List
68
