CDX-F5510/F5510X/F5550EE
SECTION 2

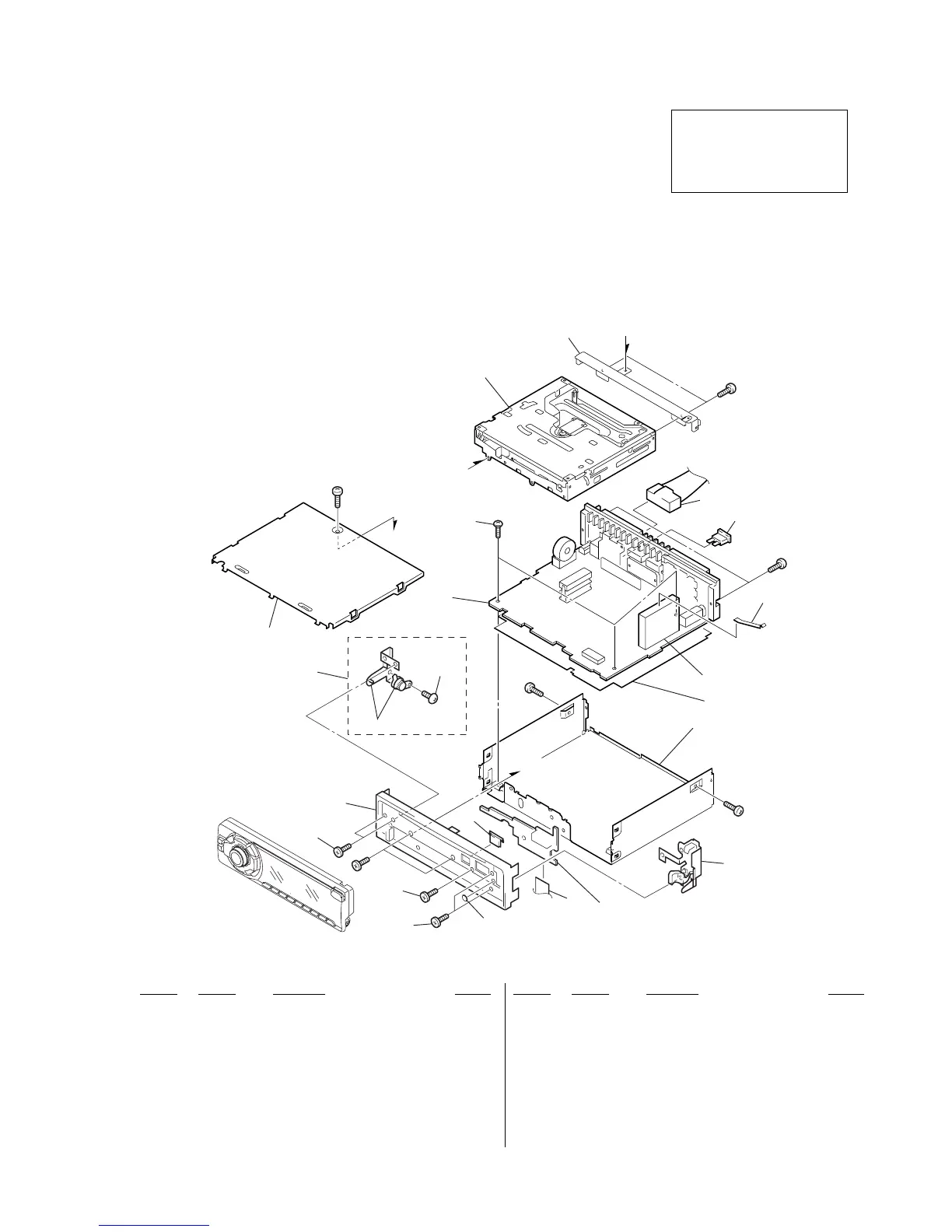

EXPLODED VIEWS
Ref. No. Part No. Description Remark
2-1. MAIN SECTION
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
RR
1 X-3384-259-1 LOCK ASSY
21-792-173-11 CABLE, FLAT (FFC) 12P
33-246-441-01 BUTTON (EJECT)
43-042-244-01 SCREW (T)
5 X-3384-364-3 SUB PANEL ASSY
6 X-3384-203-1 GEAR ASSY
73-713-786-51 SCREW +P 2X3
8 A-1172-509-A MAIN BOARD, COMPLETE
92-021-848-01 SHEET (TU), GROUND
10 2-050-124-01 SCREW +BTT 2.6X5
11 1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)
12 3-260-247-01 CUSHION (SUB PANEL)
F900 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TUX601 A-3220-961-B TUNER UNIT (TUX-032)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
#3 7-685-790-01 SCREW +PTT 2.6X4 (S)
9
F900
not supplied
not supplied
not supplied
not supplied
not supplied
(RELAY board)
TUX601
not supplied
#1
#1
#1
#
2
#3
#1
MG-611TA-186//Q
A
A
B
B
1
2
4
5
6
7
8
4
4
3
10
11
12
