CDX-F5510/F5510X/F5550EE

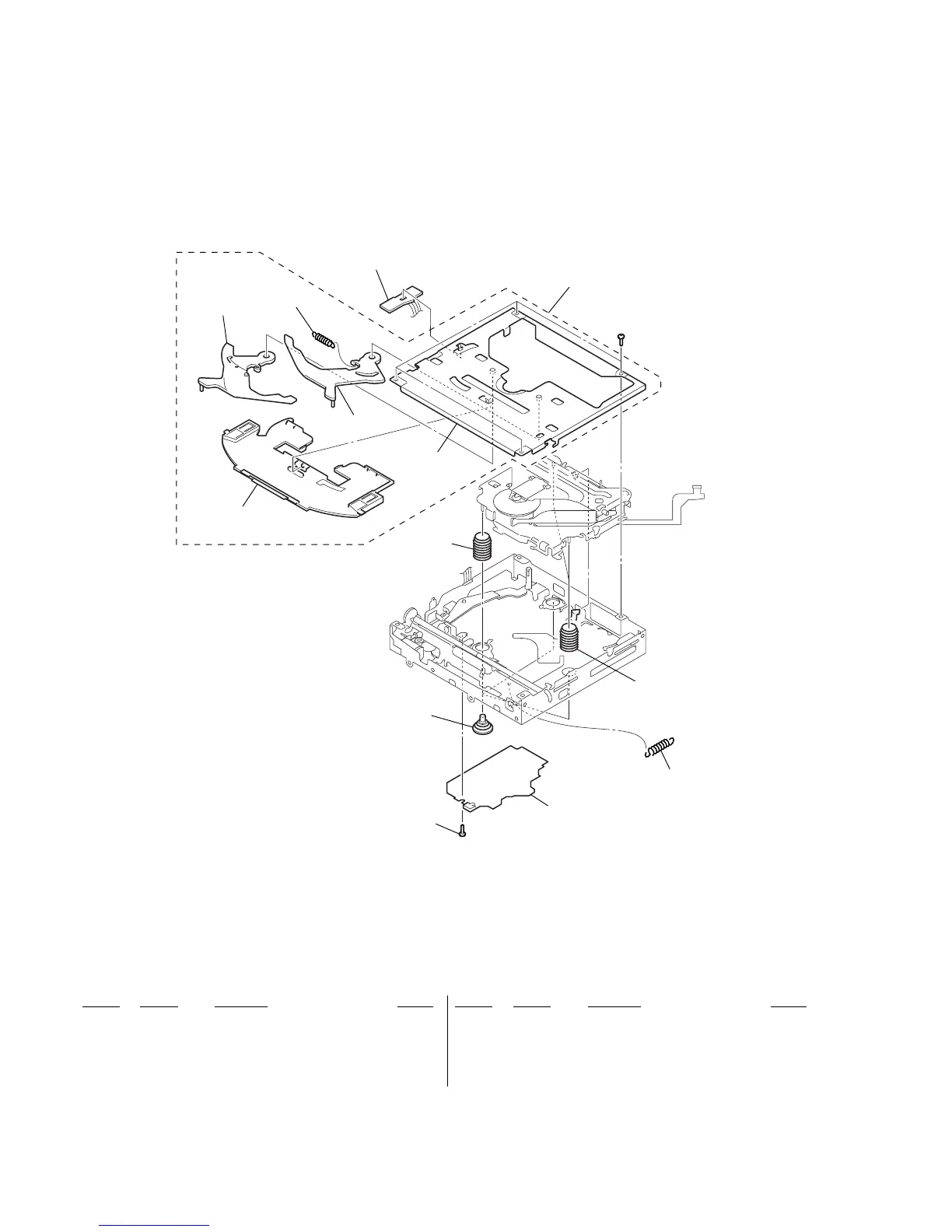

2-2. CD MECHANISM SECTION (1)
(MG-611TA-186//Q)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-3372-444-C CHASSIS (T) SUB ASSY
102 3-253-729-11 SPRING (LR), TENSION COIL
103 3-257-892-12 SPRING (DAMPER), COIL (GREEN)
104 3-257-892-01 SPRING (DAMPER), COIL (NATURAL)
105 2-345-767-11 SPRING (KF60), TENSION
106 3-259-033-01 DAMPER (S)
107 2-587-505-01 SCREW
108 A-1082-772-A SERVO BOARD, COMPLETE
#6 7-627-552-87 SCREW, PRECISION +P 1.7X2.2
not supplied
(SENSOR board)
not supplied
not supplied
not supplied
not supplied
#6
101
102
103
104
105
106
107
108
To Next Page
