CDX-F5510/F5510X/F5550EE

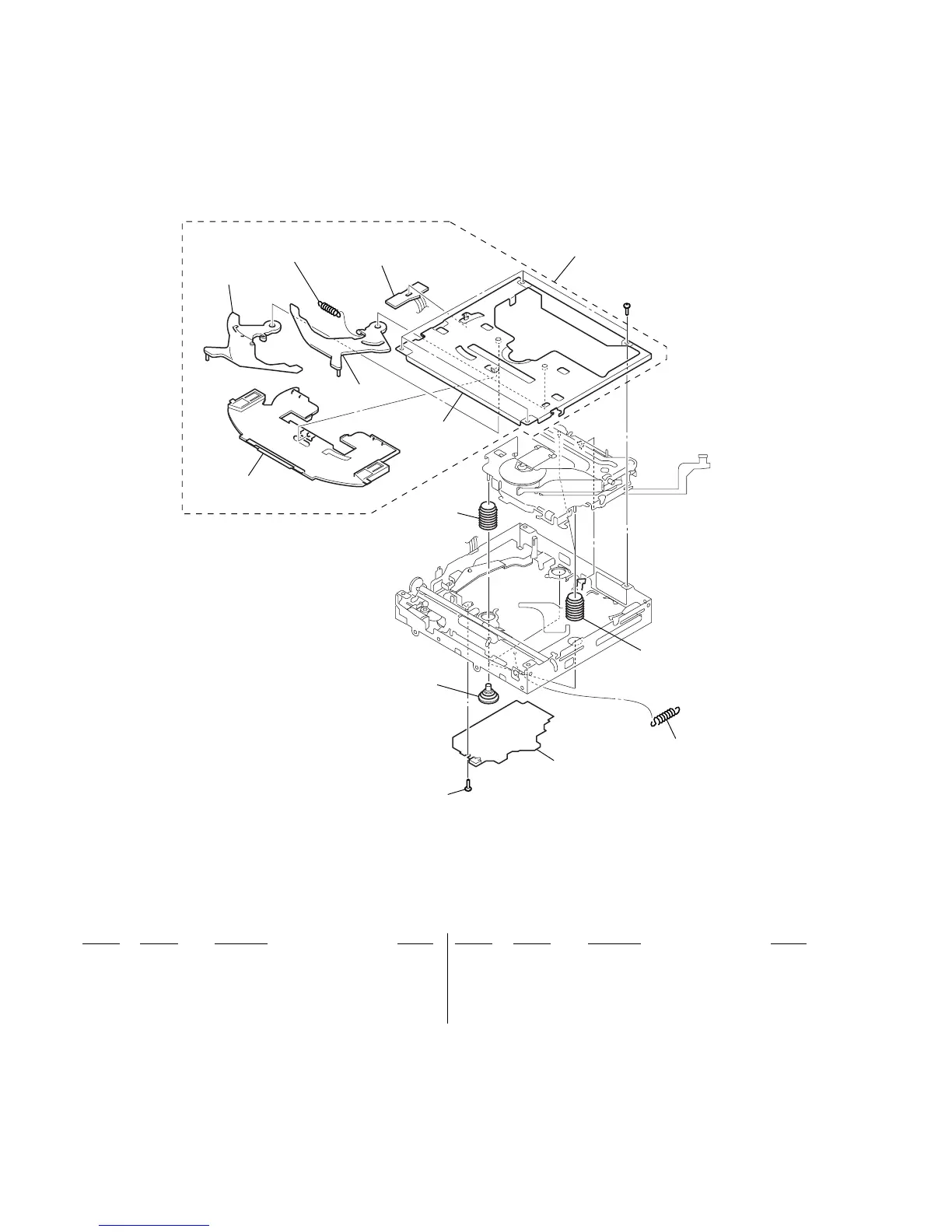

4-3. CD MECHANISM SECTION (1)
(MG-611TA-186//K)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-3372-455-A CHASSIS (T) SUB ASSY
102 3-253-729-01 SPRING (LTR), TENSION COIL
103 3-253-746-14 SPRING (DAMPER), COMPRESSION
104 3-253-746-03 SPRING (DAMPER), COMPRESSION
105 2-345-767-01 SPRING (KF60), TENSION
106 3-253-748-01 DAMPER (S)
107 3-352-758-31 SCREW (M1.7), TOOTHED LOCK
108 A-1075-784-A SERVO BOARD, COMPLETE
#4 7-627-552-87 SCREW, PRECISION +P 1.7X2.2
not supplied
(SENSOR board)
not supplied
not supplied
not supplied
not supplied
#4
101
102
103
104
105
106
107
108
