Sony CDX-F5510 Service Manual

14
CDX-F5510/F5510X/F5550EE

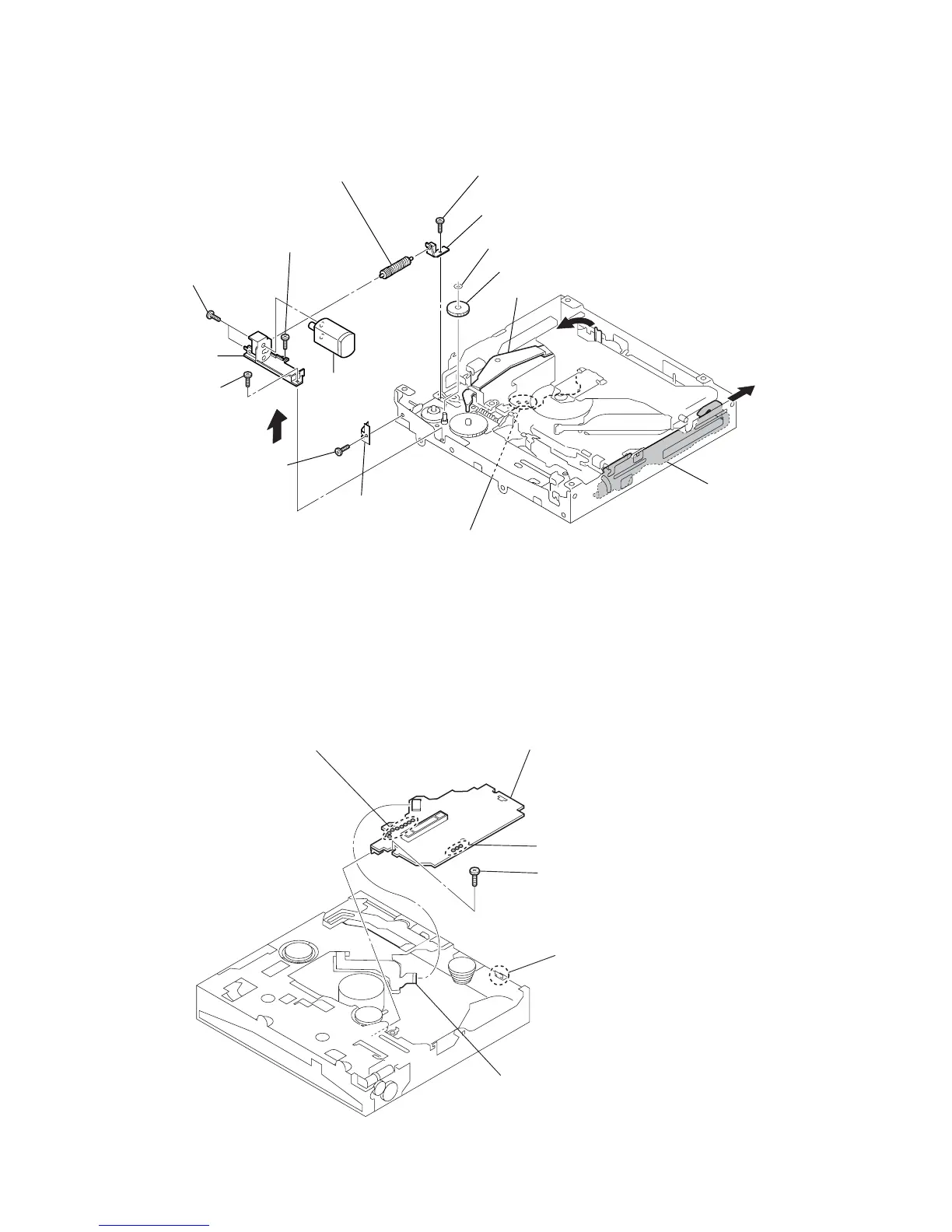

2-9. LE MOTOR ASSY (M903)
2-10. SERVO BOARD
2 washer
4
qd
3
gear (LE1)
7 leaf spring (LE)
5
lever (D)
bracket (LEM-N)
slider (R)
6 screw
(+P 1.7
x 2.2)
8 screw
(+M 1.7
x 2.5)
qa screw
(+M 1.7
x 2.5)
qf two toothed lock screws
(+M 1.4
)
qs screw
(+M 1.7
x 2.5)
9 bearing (LEB-N)
0 gear (LE) assy
qg LE motor assy
(M903)
1 Remove the soldering.
3 CN1 (16P)
5 claw
6 SERVO board
4 toothed lock screw
(M 1.7)
1 Remove the eight solderings.
2 Remove the three solderings.
