CDX-F5510/F5510X/F5550EE
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark

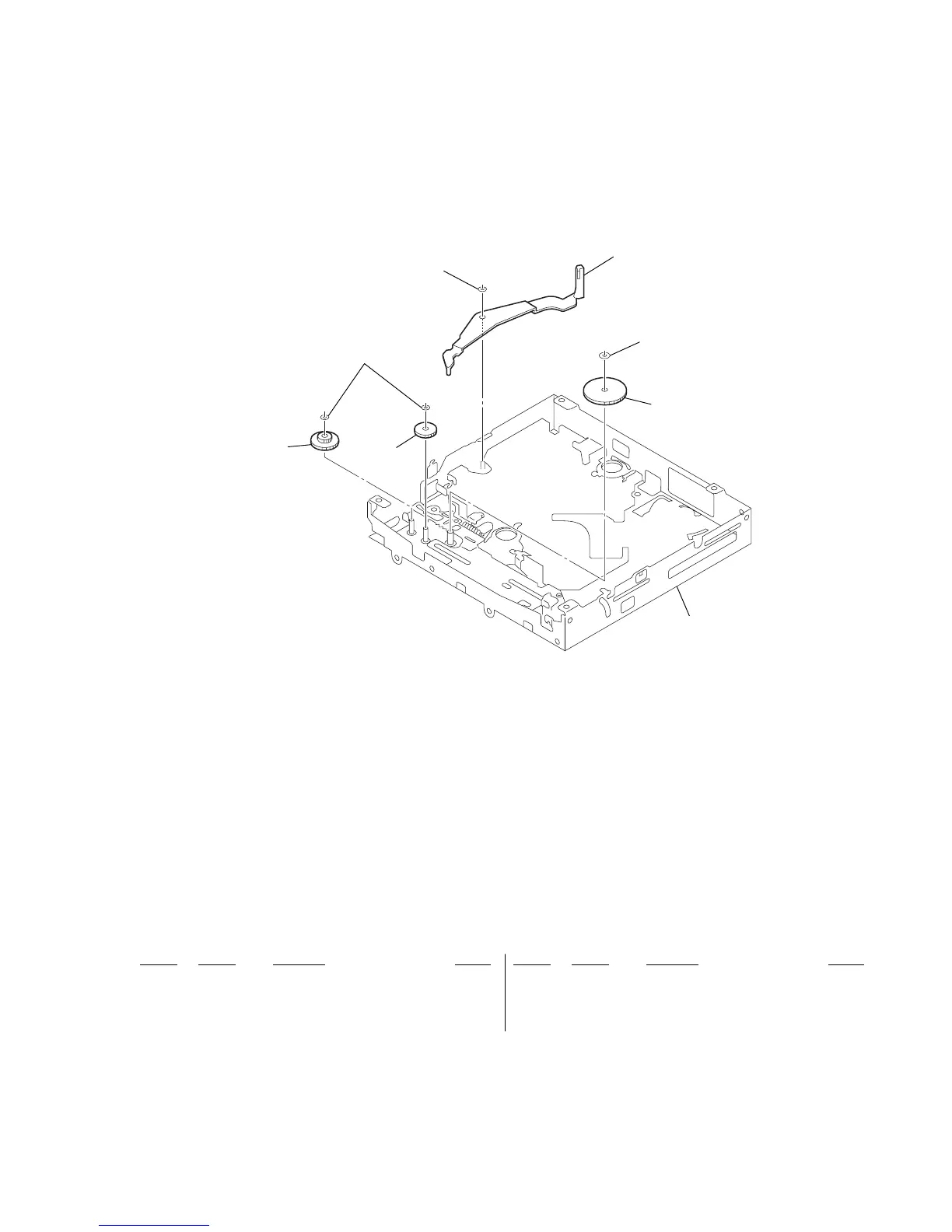

4-6. CD MECHANISM SECTION (4)
(MG-61
1T
A-186//K)
251
2-186-700-11
GEAR (CHK1)
252
3-344-223-01
WASHER
253
3-259-470-01
GEAR (LE1)
254
3-253-755-02
LEVER (D)
255
3-899-829-01
WASHER (SLIT)
256
3-259-032-01
GEAR (LE2)
257
A-1075-791-A
CHASSIS (M) BLOCK ASSY
251
252
252
254
255
256
257
253
40
42
