CDX-F5510/F5510X/F5550EE
SECTION 4
EXPLODED VIEWS
Ref. No. Part No. Description Remark

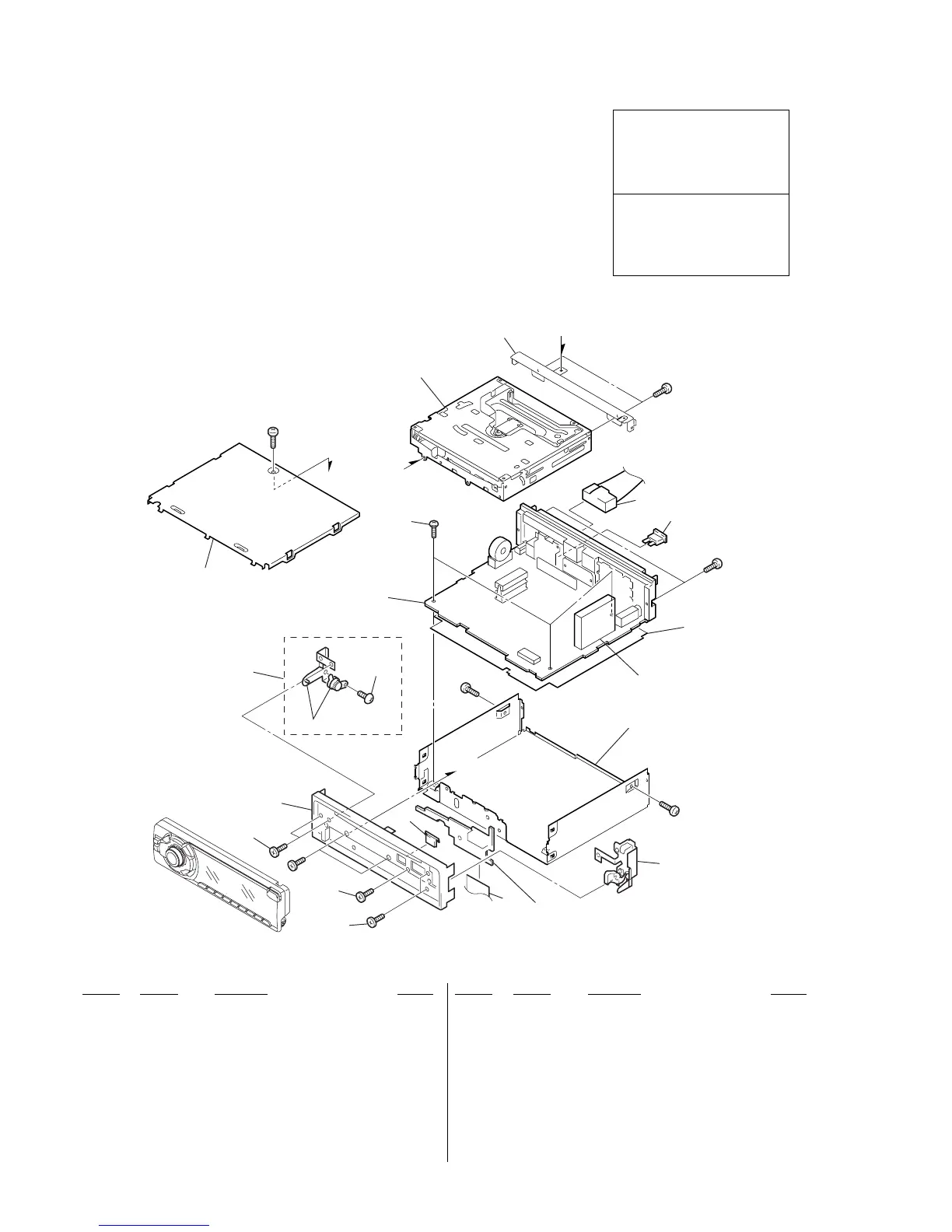

4-1. MAIN SECTION
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
RR
1 X-3384-273-1 LOCK ASSY
2 1-792-173-11 CABLE, FLAT (FFC) 12P
3 3-246-030-01 BUTTON (EJECT)
4 3-261-903-01 SCREW (+BTT M2X5)
5 X-3384-270-1 PANEL ASSY (CD), SUB
6 X-3384-271-2 GEAR ASSY
7 3-713-786-51 SCREW +P 2X3
8 A-1087-889-A MAIN BOARD, COMPLETE (F5510)
8 A-1087-902-A MAIN BOARD, COMPLETE (F5550EE)
8 A-1087-912-A MAIN BOARD, COMPLETE (F5510X)
* 9 3-246-006-31 COVER
10 3-922-535-11 SCREW (+BTT)
11 1-776-207-72 CORD (WITH CONNECTOR) (POWER)
(EXCEPT F5550EE)
11 1-776-527-72 CORD (WITH CONNECTOR) (ISO) (POWER)
(F5550EE)
F900 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TUX601 A-3220-961-A TUNER UNIT (TUX-032)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
F900
not supplied
not supplie
d
not supplied
not supplied
(RELAY board)
TUX601
not supplied
#1
#1
#1
#2
#1
#1
MG-611TA-186//K
A
A
B
B
1
2
4
5
6
7
8
4
4
3
10
11
9
