CDX-F5510/F5510X/F5550EE

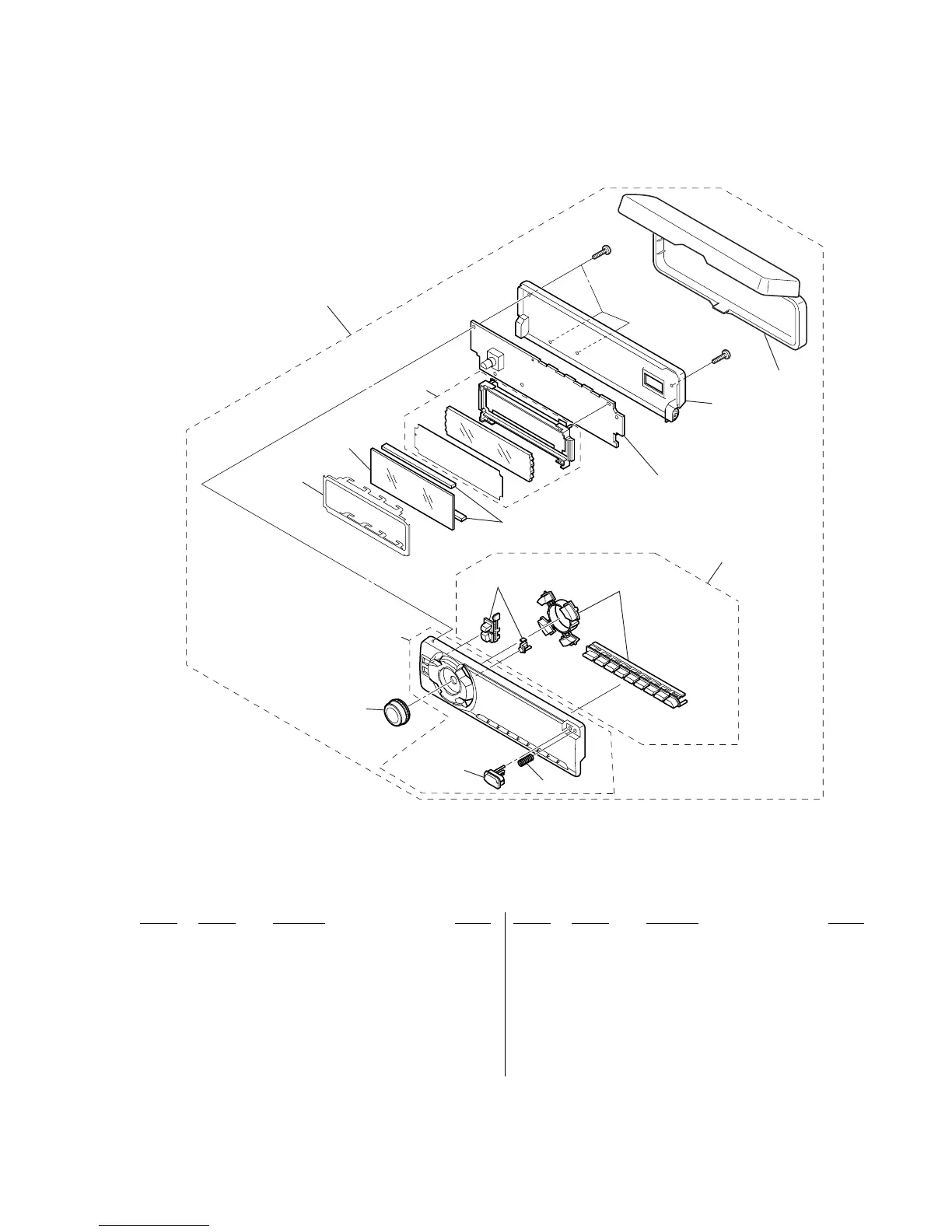

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 X-2024-954-1 KIT (SVX) ASSY, BUTTON (F5510)
51 X-2024-955-1 KIT (SVX) ASSY, BUTTON (F5510X/F5550EE)
52 X-2024-958-1 VOL (SVX) ASSY, KNOB (F5510X/F5550EE)
52 X-3384-637-1 VOL (SVX) ASSY, KNOB (F5510)
53 X-2024-949-1 PANEL ASSY (SVX), FRONT (F5510)
53 X-2024-950-1 PANEL ASSY (SVX), FRONT (F5550EE)
53 X-2024-951-1 PANEL ASSY (SVX), FRONT (F5510X)
54 1-780-097-11 CONDUCTIVE BOARD, CONNECTION
55 X-3384-501-2 PLATE SUB ASSY (N), LIGHT GUIDE
56 X-3384-284-1 PANEL ASSY (SVX), FRONT BACK
57 X-3378-390-3 CASE (PANEL) ASSY (for FRONT PANEL)
58 A-1087-952-A OVERALL ASSY (F5510)
58 A-1087-957-A OVERALL ASSY (F5550EE)
58 A-1087-960-A OVERALL ASSY (F5510X)
LCD901 1-805-739-11 DISPLAY PANEL, LIQUID CRYSTAL (F5550EE)
LCD901 1-805-740-11 DISPLAY PANEL, LIQUID CRYSTAL
(EXCEPT F5550EE)
#3 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
51
52
53
not supplied
not supplied
(DISPLAY board)
LCD901
#3
#3
not
supplied
not
supplied
not
supplied
54
55
56
58
57
not supplied
To Next Page
