CDX-F5510/F5510X/F5550EE
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark

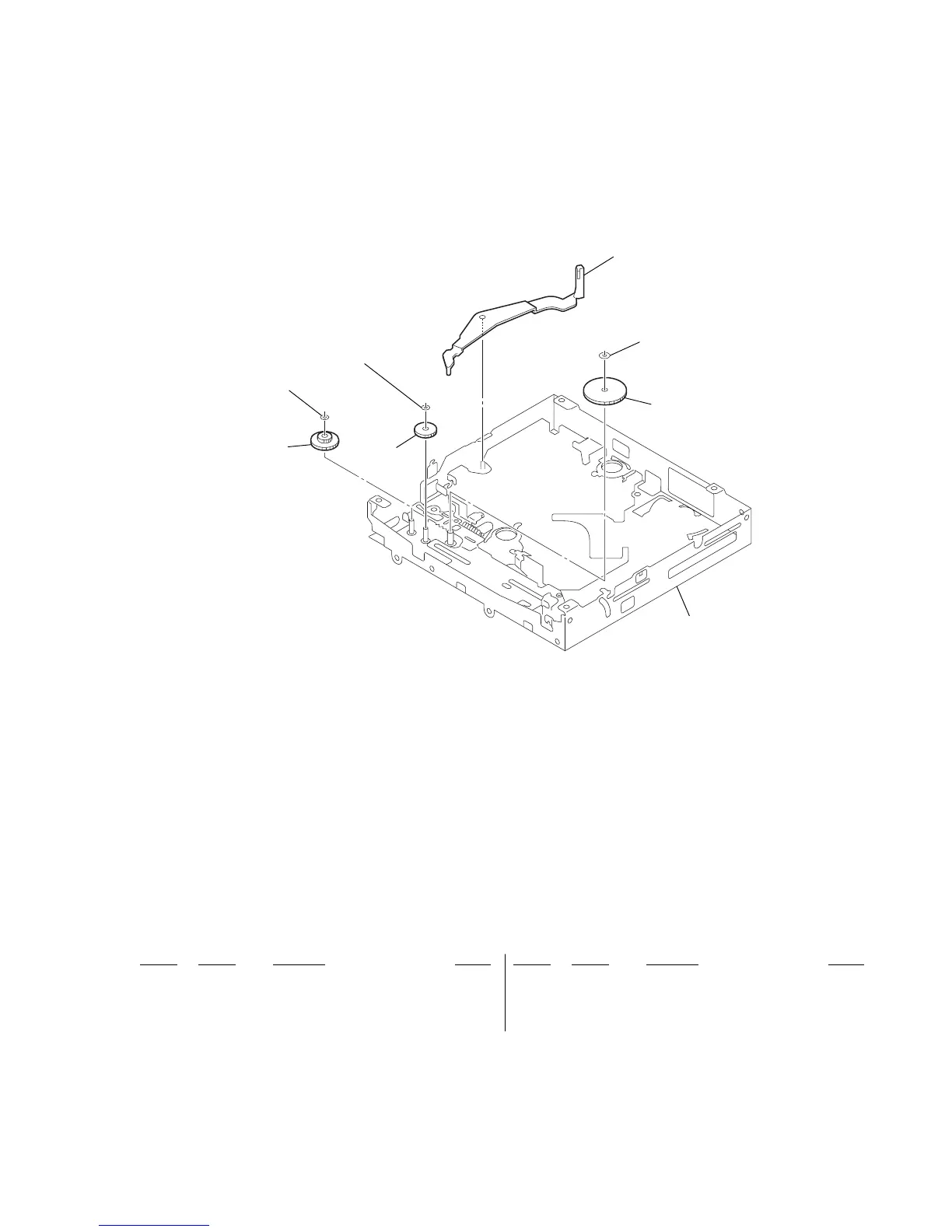

2-5. CD MECHANISM SECTION (4)
(MG-61
1T
A-186//Q)
251
2-186-700-01
GEAR (CHK1)
252
3-344-223-01
WASHER
253
3-259-470-12
GEAR (LE1)
254
3-253-755-41
LEVER (D)
255
2-630-962-01
WASHER (SLIT)
256
2-590-545-31
GEAR (LE2-M)
257
A-1075-640-B
CHASSIS (M) BLOCK ASSY
258
3-348-993-01
WASHER
251
252
254
255
256
257
253
258
66
68
