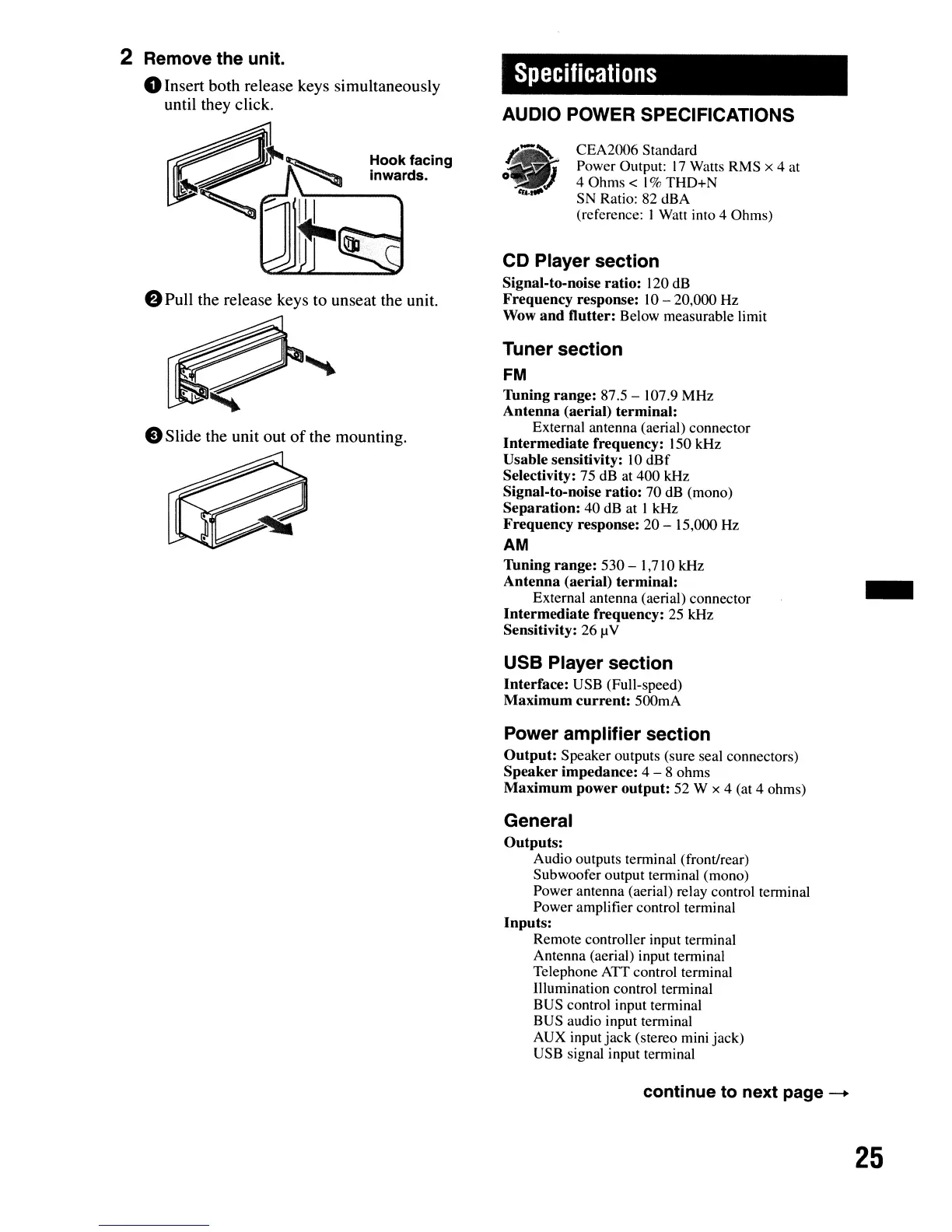

2 Remove the unit.
oInsert both release keys simultaneously
until they click.
Specifications
AUDIO POWER SPECIFICATIONS
Hook facing
inwards.
-
CEA2006 Standard
Power Output: 17 Watts RMS x 4 at
4 Ohms < 1% THD+N
SN Ratio: 82 dBA
(reference: I Watt into 4 Ohms)
Tuner section
FM
Tuning range: 87.5 - 107.9 MHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 150 kHz
Usable sensitivity: 10 dBf
Selectivity: 75 dB at 400 kHz
Signal-to-noise ratio: 70 dB (mono)
Separation: 40 dB at I kHz
Frequency response: 20 - 15,000 Hz
AM
Tuning range: 530 - 1,710 kHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 25 kHz
Sensitivity: 261lV
CD Player section
Signal-to-noise ratio: 120 dB
Frequency response: 10 - 20,000 Hz
Wow and Dutter: Below measurable limit
eSlide the unit out of the mounting.
ePull the release keys to unseat the unit.
USB Player section
Interface: USB (Full-speed)
Maximum current: 500mA
Power amplifier section
Output: Speaker outputs (sure seal connectors)
Speaker impedance: 4 - 8 ohms
Maximum power output: 52 W x 4 (at 4 ohms)
General
Outputs:
Audio outputs terminal (front/rear)
Subwoofer output terminal (mono)
Power antenna (aerial) relay control terminal
Power amplifier control terminal
Inputs:
Remote controller input terminal
Antenna (aerial) input terminal
Telephone ATI control terminal
Illumination control terminal
BUS control input terminal
BUS audio input terminal
AUX input jack (stereo mini jack)
USB signal input terminal
continue to next page --
25
