44
CDX-MP80
SECTION 5
EXPLODED VIEWS
Ref. No. Part No. Description Remark

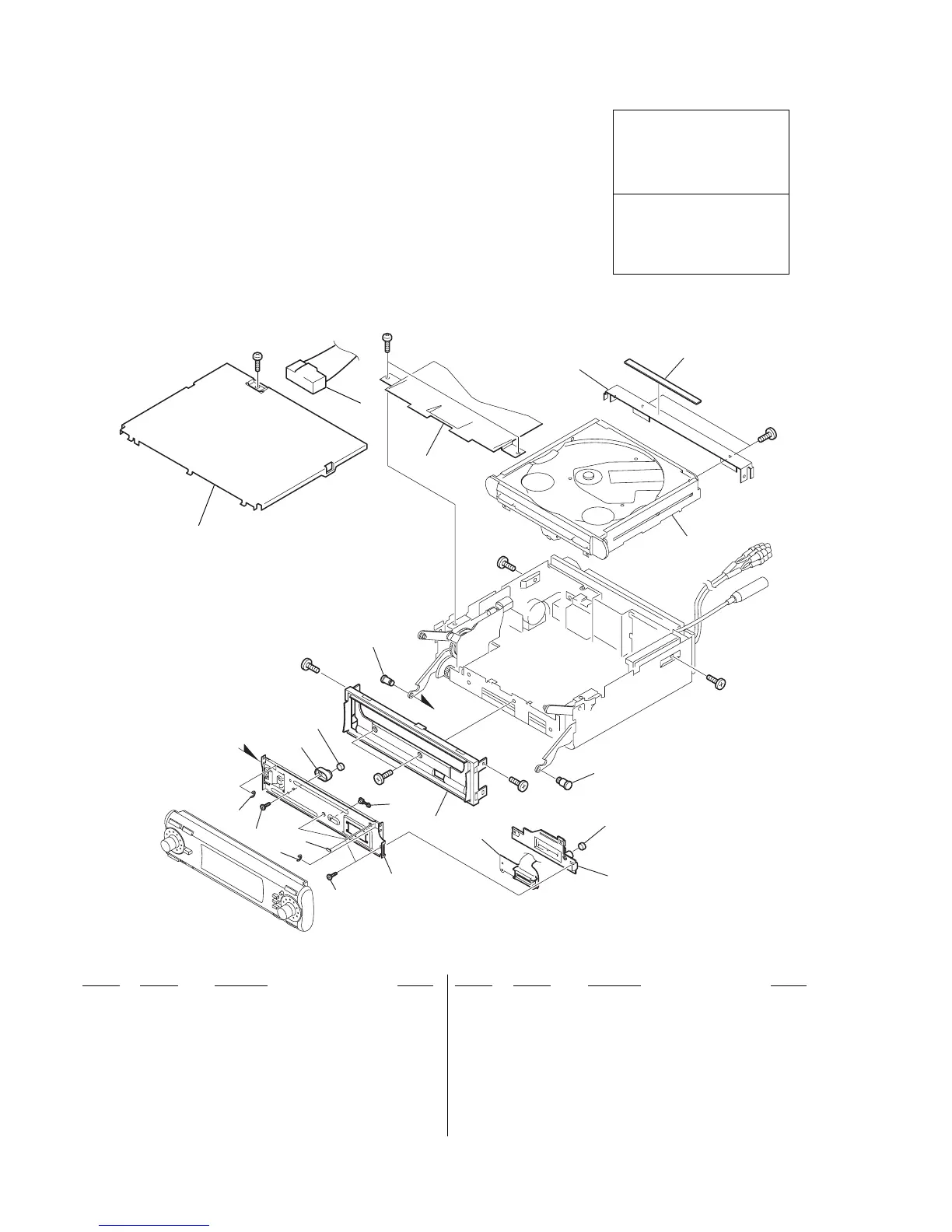

5-1. CHASSIS SECTION
Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
•Abbreviation
CND: Canadian model
RR
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
1
2
3
A
A
#1
#2
not supplied
MG-550M-156
#1
#1
#1
#1
#1
#1
4
5
5
8
9
7
10
11
12
13
12
14
11
6
not supplied
not supplied
1 3-236-999-02 COVER
2 1-776-207-72 CORD (WITH CONNECTOR) (POWER) (US,CND)
2 1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP,UK)
3 3-247-019-01 BRACKET (COVER)
4 3-236-963-02 BRACKET (TRAY)
5 3-242-600-01 SHAFT (BASE PANEL B,D)
6 X-3381-363-2 BASE ASSY, PANEL
7 3-236-978-01 PANEL (CD), SUB
8 3-237-000-02 COVER, PANEL
9 1-761-522-11 FLEXIBLE BOARD
10 3-237-001-01 BUTTON (RESET)
11 3-230-416-01 SCREW
12 3-243-606-01 RING (PANEL), E
13 3-238-969-01 BRACKET (CUSHION)
14 3-226-653-11 PLATE (LCD), BLIND
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-790-09 SCREW +PTT 2.6X4 (S)
To Next Page
