46
CDX-MP80

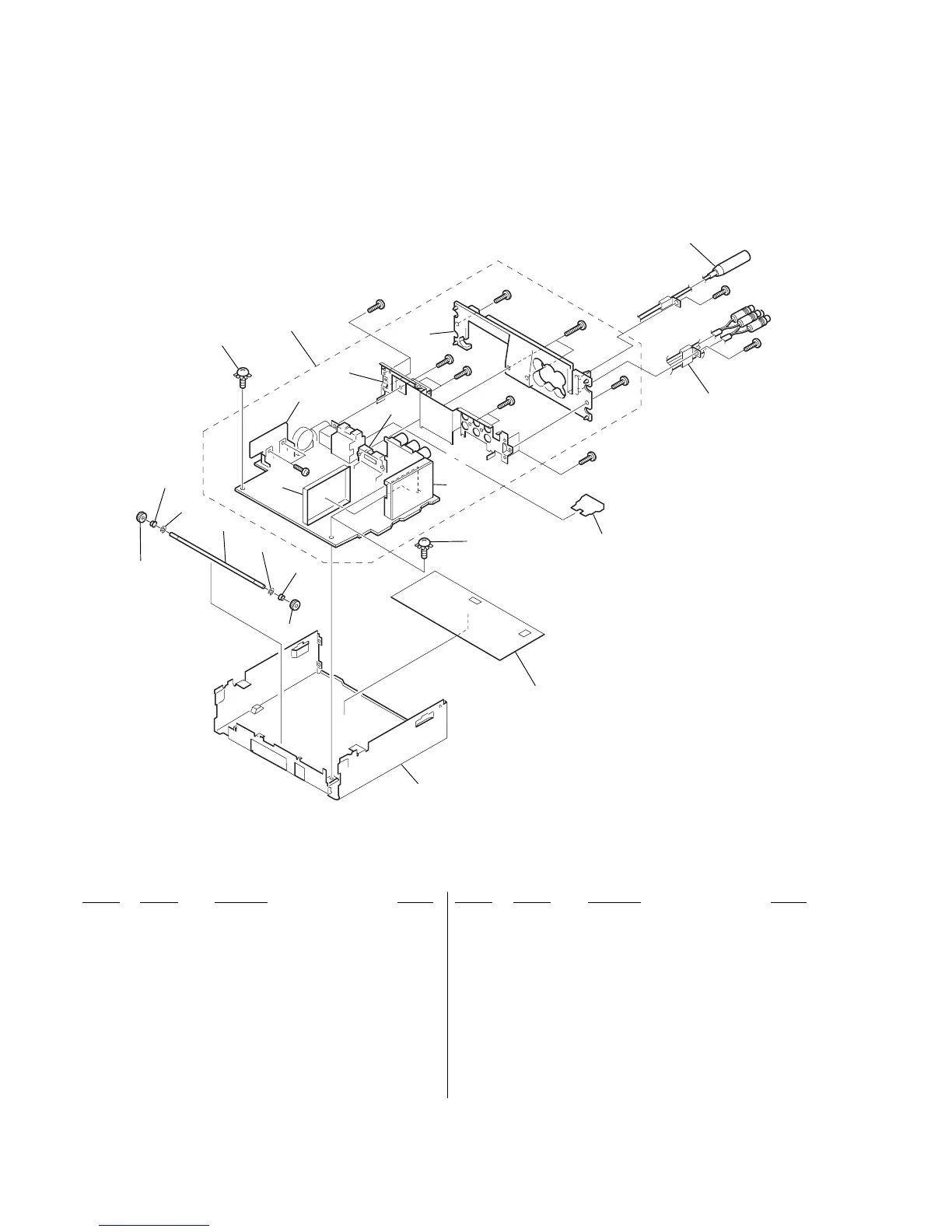

5-3. MAIN BOARD SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
101
F901
TUX201
#1
#1
#1
#3
#1
#1
#1
#1
#6
#1
#1
102
103
103
104
104
105
106
106
107
107
115
108
109
111
110
112
113
114
101 X-3381-657-2 CHASSIS (CD.S) ASSY
102 3-230-417-11 SHEET, INSULATING
103 3-230-493-01 GEAR (DRIVE SHAFT)
104 3-230-444-01 GUIDE (DRIVE SHAFT)
105 3-243-674-01 SHAFT, DRIVE
106 3-040-692-01 RING, CE TYPE RETAINING
107 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
108 A-3274-659-A MAIN BOARD, COMPLETE (US,CND)
108 A-3274-714-A MAIN BOARD, COMPLETE (AEP,UK)
* 109 3-230-513-01 HEAT SINK (REG)
110 3-230-509-02 CHASSIS, BACK
* 111 3-019-565-01 BRACKET (IC)
112 3-230-510-11 HEAT SINK
113 1-777-246-41 CORD (WITH CONNECTOR) (ANTENNA)
114 1-757-775-31 CORD (WITH CONNECTOR) (SUB OUT (MONO),
AUX IN (AUDIO))
* 115 3-048-454-01 SHIELD (COVER) (AEP,UK)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TUX201 A-3282-062-A TUNER UNIT (TUX-020)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#3 7-685-134-19 SCREW +P 2.6X8 TYPE2, NON-SLIT
#6 7-685-794-09 SCREW +PTT 2.6X10 (S)
