CDX-MP80

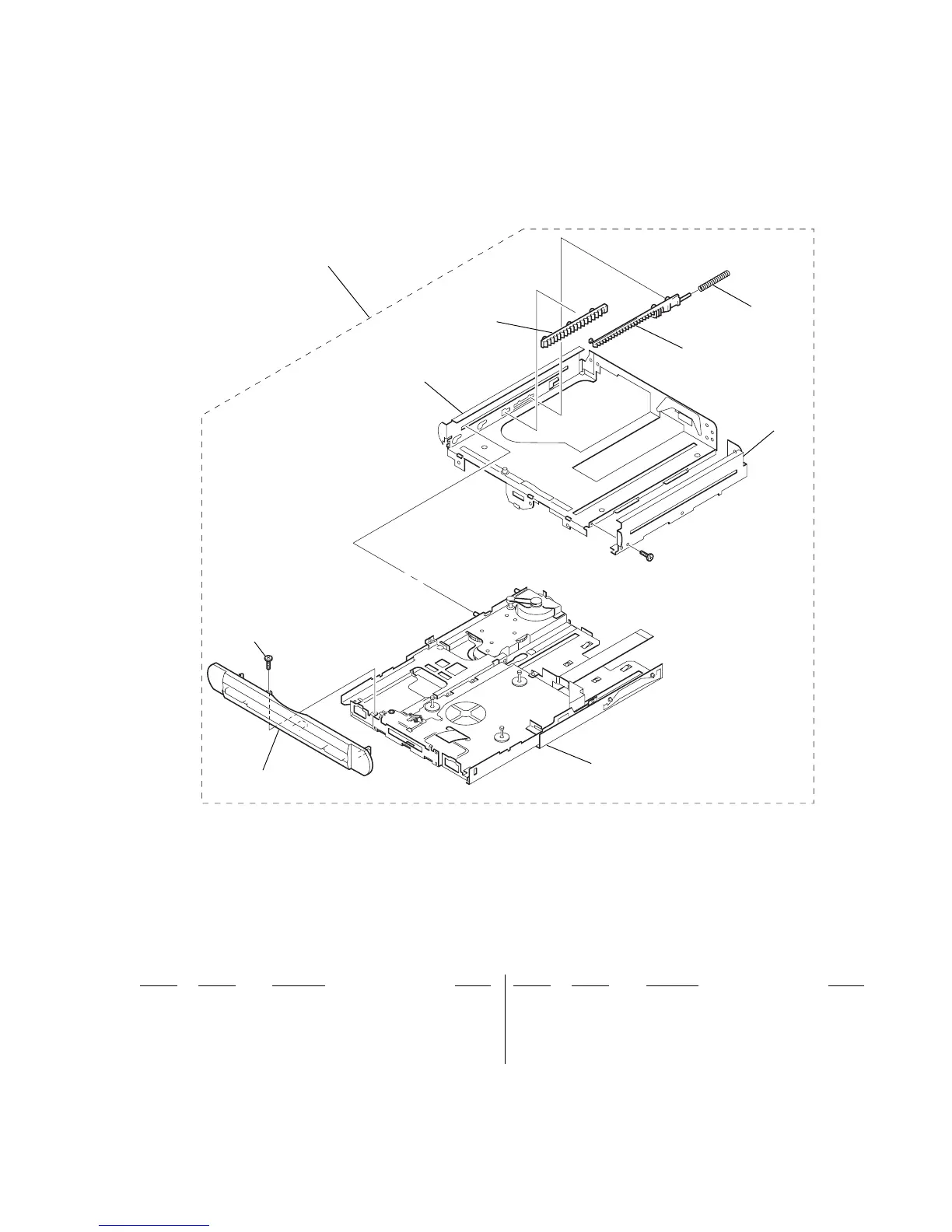

5-6. CD MECHANISM SECTION (2)
(MG-550M-156)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251
252
253
254
255
256
257
258
#8
not supplied
251 X-3381-055-4 PANEL (S) ASSY
252 2-626-869-11 SCREW (M2X3), SERRATION
253 X-3381-029-2 CHASSIS (ML) ASSY
254 3-234-353-01 RACK (M)
255 3-234-328-01 SPRING (SUB RACK M), COMPRESSION
256 3-234-326-01 RACK (SUB M)
257 3-234-352-02 CHASSIS (MR)
258 A-3315-430-C BLOCK (M) ASSY, MECHANICAL
#8 7-627-852-38 SCREW, PRECISION +P 1.7X1.8 TYPE3
