45
CDX-MP80

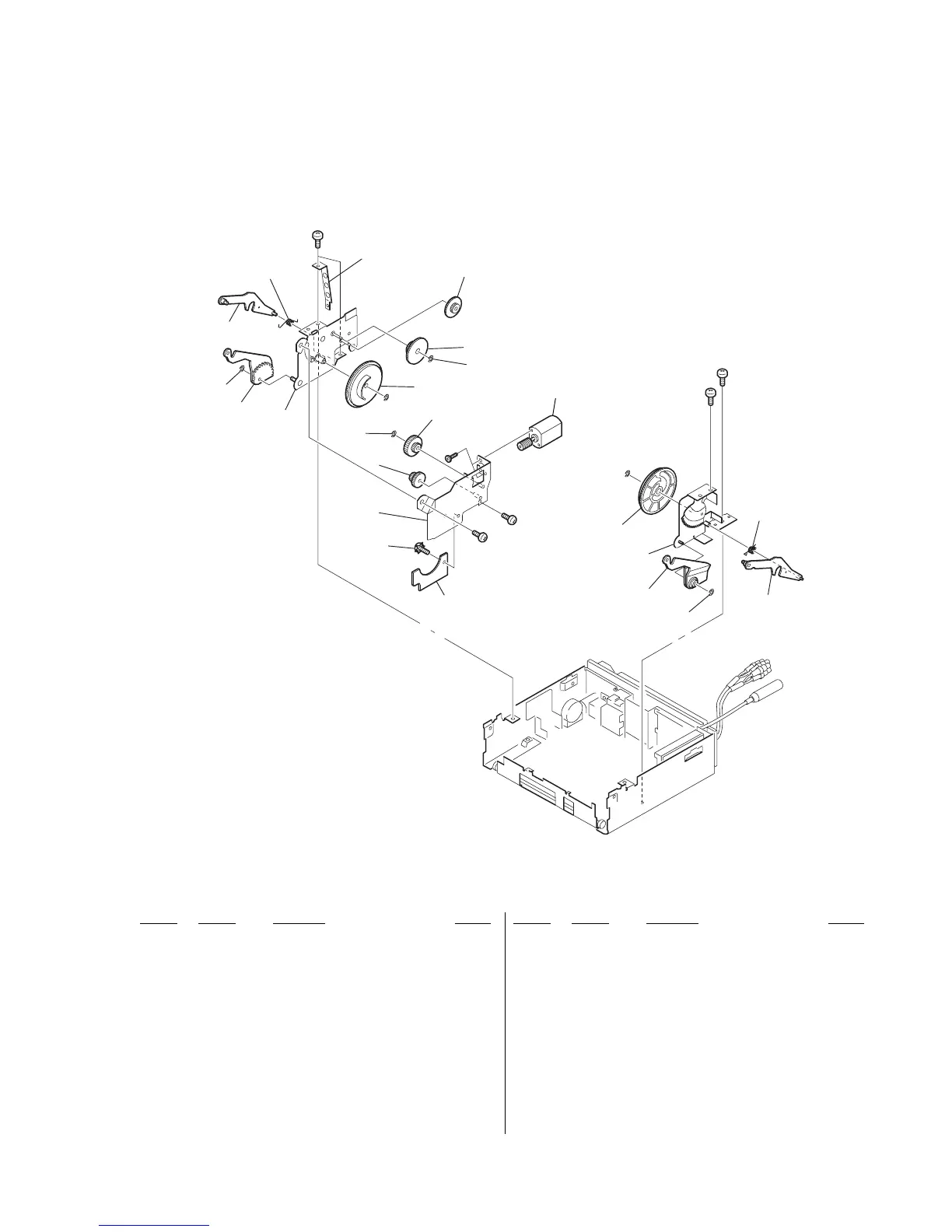

5-2. CAM SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
M601
#1
#5
#1
#1
#1
#1
#4
#4
51
52
53
55
63
56
69
69
67
66
69
57
62
65
64
58
59
60
61
69
54
68
51 A-3340-310-A SWITCH BOARD, COMPLETE
52 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
53 X-3381-368-1 BRACKET (SUB L) (RIVETING) ASSY
54 X-3381-360-2 BRACKET (MAIN R) ASSY
55 X-3381-359-1 BRACKET (MAIN L) ASSY
56 X-3381-599-1 ARM (D.L) ASSY
57 X-3381-364-1 ARM (U.L) ASSY
58 3-236-964-01 SPRING (ARM L)
59 3-236-965-01 SPRING (ARM R)
60 X-3381-365-1 ARM (U.R) ASSY
61 X-3381-600-1 ARM (D.R) ASSY
62 3-238-628-01 COVER (PROTECTION)
63 3-236-947-01 GEAR (CAM L)
64 3-237-005-01 GEAR (C)
65 3-237-004-01 GEAR (B)
66 3-236-946-01 GEAR (WORM WHEEL)
67 3-237-003-01 GEAR (A)
68 3-236-961-01 GEAR (CAM R)
69 3-243-606-01 RING (PANEL), E
M601 A-3315-488-A MOTOR ASSY (OPEN/CLOSE)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#4 7-624-106-04 STOP RING 3.0, TYPE-E
#5 7-627-553-28 SCREW, PRECISION +P 2X2.5
To Next Page
