48
CDX-MP80

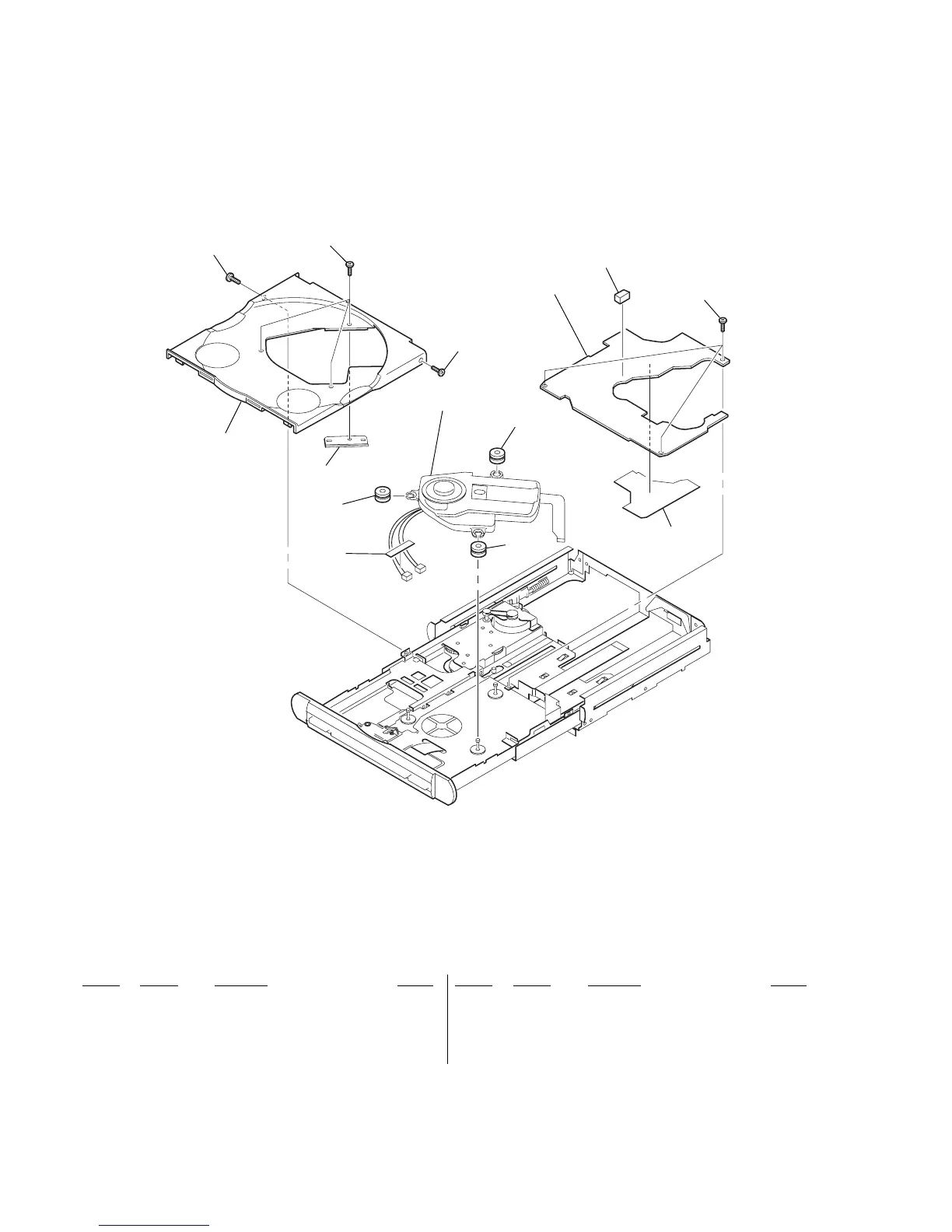

5-5. CD MECHANISM SECTION (1)
(MG-550M-156)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
203
202
201
202
202
204
204
204
205
CDM-3123EBA
207
208
209
206
201 3-378-434-01 CUSHION, SARANET
202 3-235-473-01 INSULATOR
203 X-3381-023-3 TRAY (UM) ASSY
204 2-134-636-31 SCREW (M1.7X2.5)
205 3-235-454-01 SPRING (LC-M), PLATE
206 3-243-340-01 CUSHION (PWB)
207 A-3340-216-A SERVO BOARD, COMPLETE
208 4-628-646-11 SCREW (M2X3.5), TOOTHED LOCK (+) P
209 3-236-286-01 COVER (BOARD)
To Next Page
