50
CDX-MP80
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

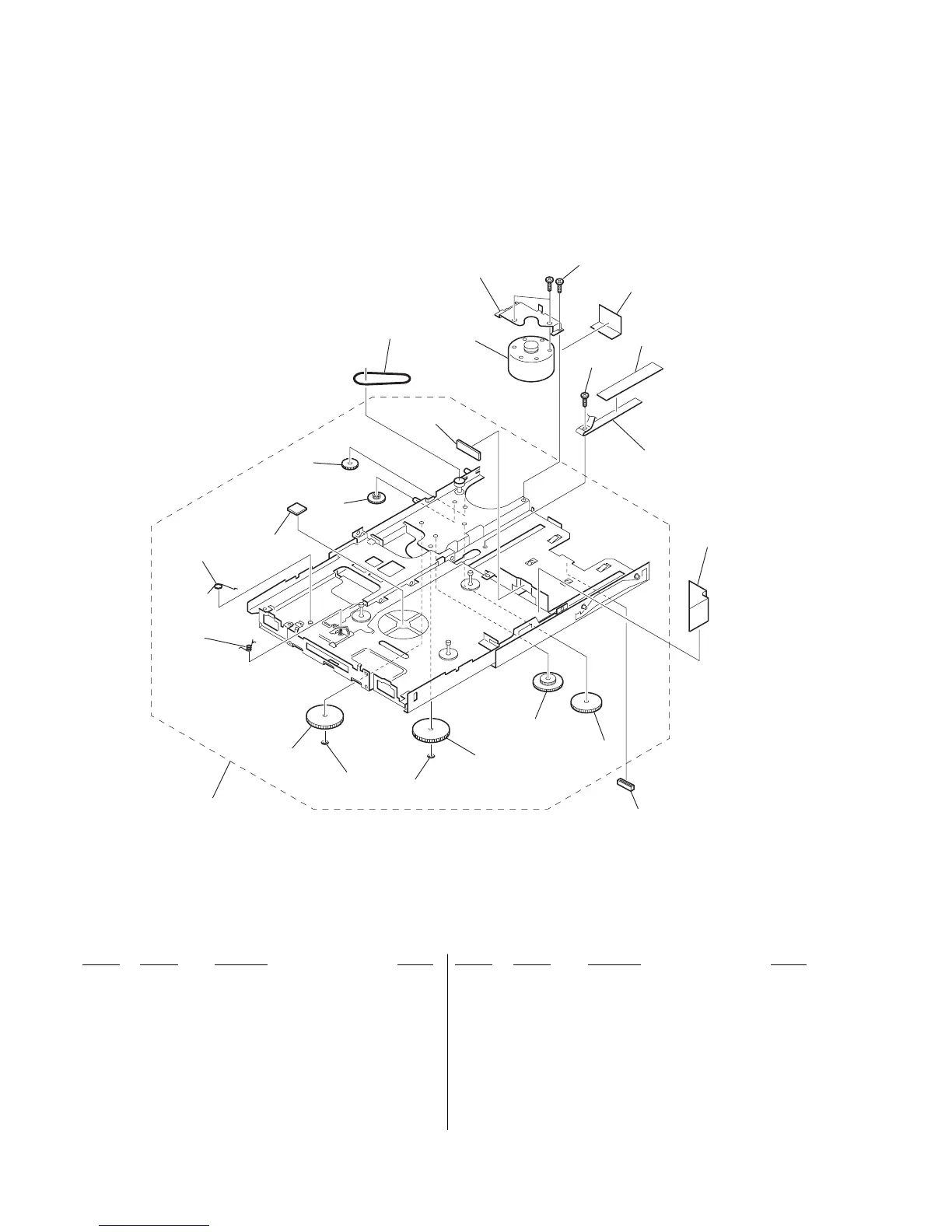

5-7. CD MECHANISM SECTION (3)
(MG-550M-156)
301
302
303
303
304
304
315
314
305
306
307
308
309
310
312
313
316
317
311
#9
M3
not supplied
not supplied
not supplied
301 3-234-340-01 GEAR (4)
302 3-234-339-01 GEAR (5)
303 3-234-330-01 GEAR (6)
304 3-321-813-01 WASHER, COTTER POLYETHYLENE
305 3-234-327-01 SPRING (LEVER LOCK), TORSION
306 3-234-331-01 SPRING (SUB RACK D), TORSION
307 3-234-337-01 GEAR (2)
308 3-234-338-01 GEAR (3)
309 3-234-336-01 BELT (L)
310 3-234-348-01 BRACKET (MOTOR)
311 4-639-357-21 SCREW (M1.7)
312 3-241-004-02 CUSHION (FPC), SARANET
313 3-236-897-01 SCREW (+P M1.4 MECH)
314 3-240-293-01 STOPPER (M)
315 X-3381-224-3 BLOCK (M) ASSY, TRAY
316 3-244-139-01 CUSHION (MOTOR), SARANET
317 1-763-734-12 MOTOR FLEXIBLE BOARD
M3 X-3381-240-1 MOTOR ASSY, LE (LOADING)
#9 7-627-000-07 SCREW, PRECISION +P 1.7X2 TYPE3
