Sony CDX-MP80 Service Manual

47
CDX-MP80

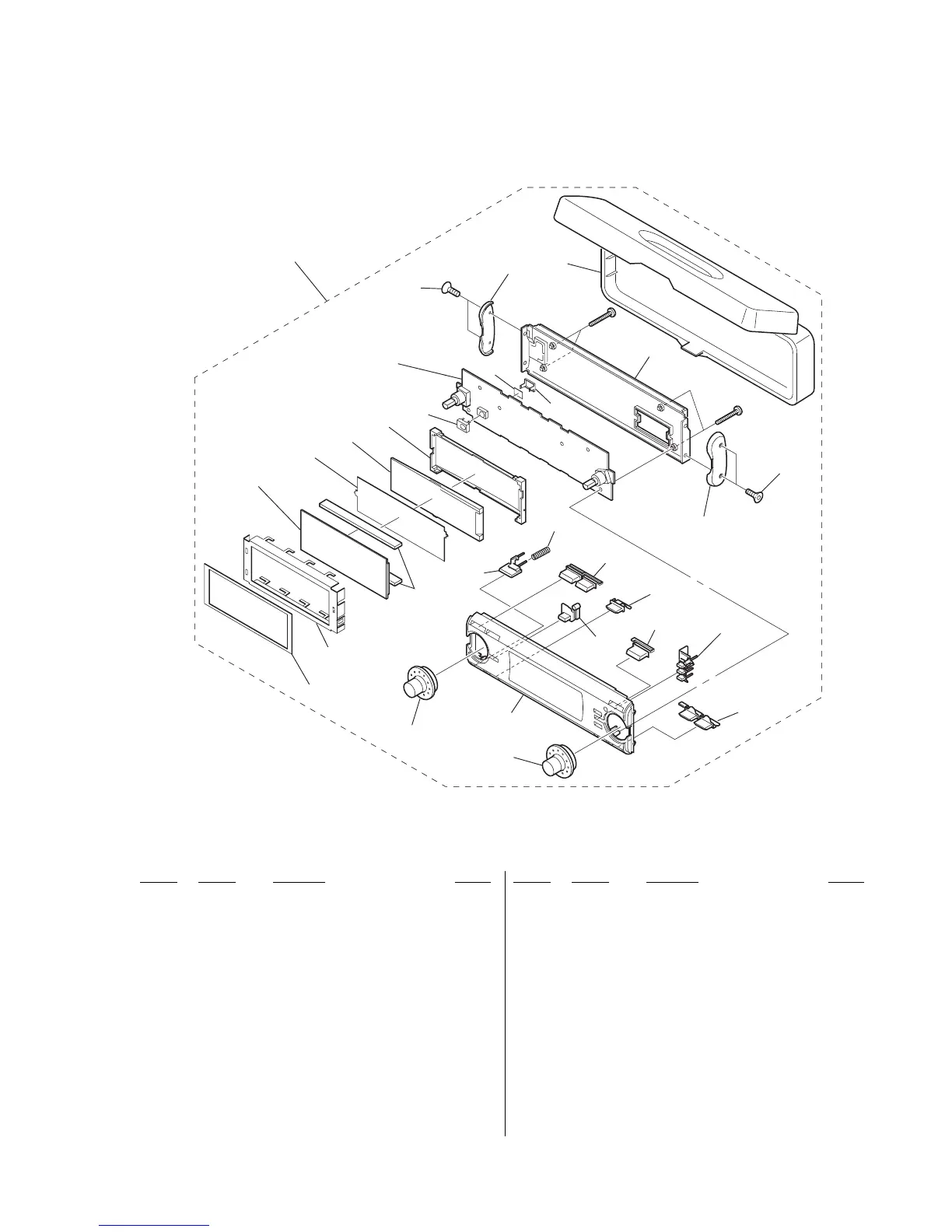

5-4. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
151
151
152
153
154
155
156
157
158
159
160
162
161
164
165
166
171
172
173
167
168
168
167
169
163
170
LCD901
not supplied
not supplied
(KEY board)
#7
#7
151 X-3381-583-2 KNOB (VOL) ASSY
152 X-3383-173-1 PANEL (S) ASSY, FRONT (AEP,UK)
152 X-3383-174-1 PANEL (S) ASSY, FRONT (US,CND)
153 3-236-974-01 BUTTON (SEEK)
154 3-236-975-01 BUTTON (MENU) (AEP,UK)
154 3-236-975-21 BUTTON (MENU) (US,CND)
155 3-236-973-01 BUTTON (EJECT)
156 3-236-972-01 BUTTON (OFF)
157 3-236-971-01 BUTTON (DSPL) (AEP,UK)
157 3-236-971-21 BUTTON (DSPL) (US,CND)
158 3-236-970-01 BUTTON (SOURCE/MODE)
159 3-013-634-01 SPRING (RELEASE)
160 3-236-968-01 BUTTON (RELEASE)
161 1-694-903-11 CONDUCTIVE BOARD, CONNECTION
162 3-236-990-01 PLATE (LCD), GROUND
163 X-3381-407-1 CASE ASSY (for FRONT PANEL)
164 3-236-992-01 SHEET (DIFFUSION)
165 3-236-989-01 PLATE (LCD), LIGHT GUIDE
166 3-236-991-01 HOLDER (LCD)
167 3-237-002-01 PLATE, ORNAMENTAL
168 3-238-973-01 SCREW, ORNAMENTAL
169 3-236-993-02 PANEL, FRONT BACK
170 A-3337-235-A PANEL COMPLETE ASSY, FRONT (US,CND)
170 A-3337-371-A PANEL COMPLETE ASSY, FRONT (AEP,UK)
* 171 3-227-280-01 CASE (IR-T), SHIELD
172 3-242-787-01 PLATE (IR), INSULATED
* 173 3-227-281-02 CASE (IR-B), SHIELD
LCD901 1-804-644-11 DISPLAY PANEL, LIQUID CRYSTAL
#7 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
