Sony CMT-DF1 Service Manual

8
HCD-DF1
3 DVD block
7 MAIN board
1 four connectors
5 flat type wire (9 core)
(MAIN board (CN901), tuner (FM/AM))
4
2 two screws
(BVTP3
× 8)
6 tune r
(FM/AM)

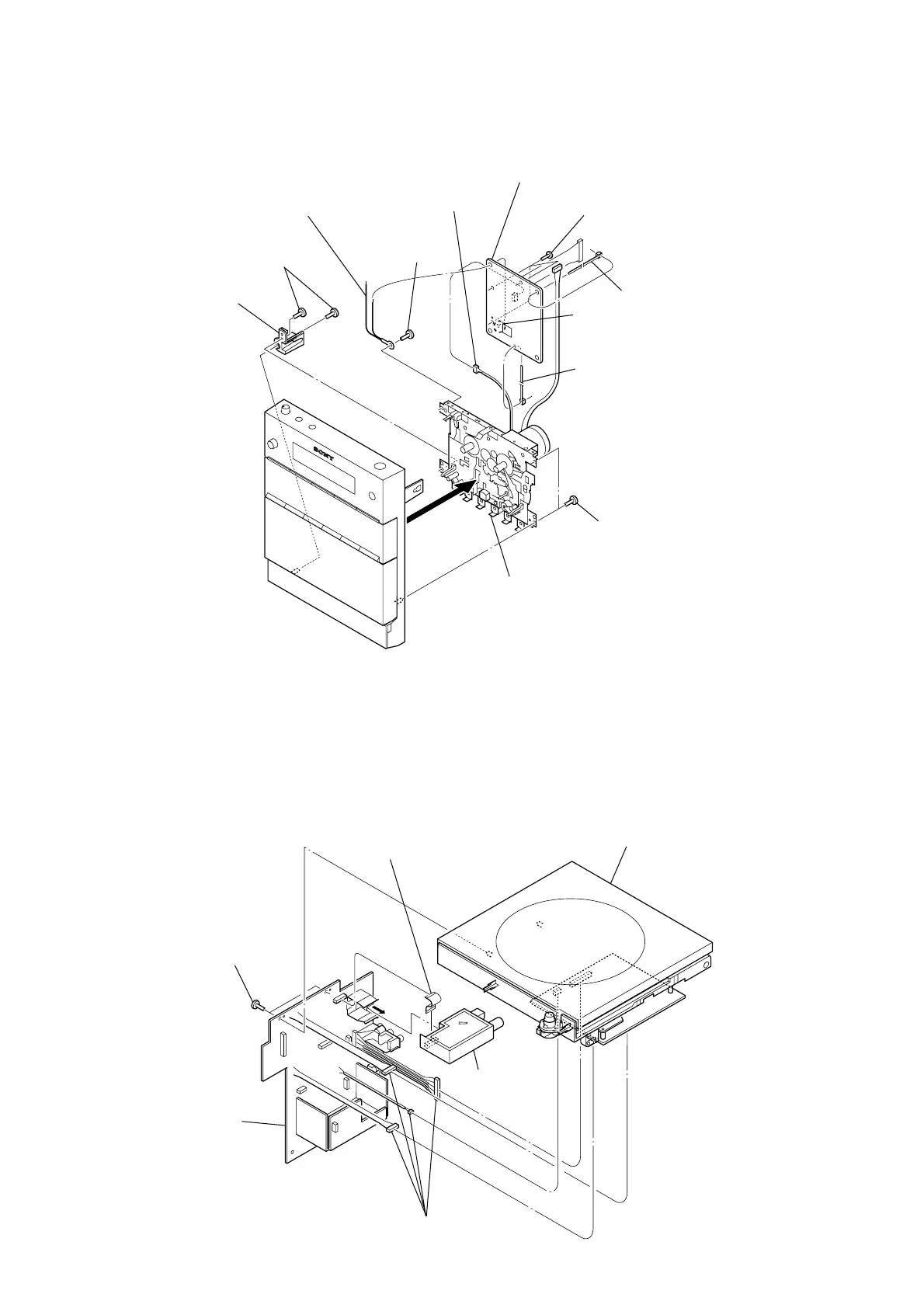

3-6. MAIN BOARD
3-5. MECH DECK (H-21), DECK BOARD
q; holder (PWB)
9 two screws
(BVTP3
× 8)
2 Cut the clamp.
8 ground lead wire
7 s crew
(BVTP3
× 8)
4 connector
(CON101)
6 DECK board
5 three screws
(BVTP2.6)
1 Remove the solder.
3 Cut the clamp.
qa two screws
(BVTP3
× 8)
qs
qd
mech deck (H-21)

Sony CMT-DF1 Specifications

General

Bass reflex	Yes
Speaker type	1-way
RMS rated power	10 W
Number of speakers	2
Mid-range driver diameter	100 mm
Total Harmonic Distortion (THD)	10 %
Type	Home audio micro system
Cassette deck	No
Product color	Gray
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Supported radio bands	AM, FM
Preset stations quantity	40
Display type	LCD
Speaker depth	187 mm
Speaker width	145 mm
Speaker height	212 mm
Video recording	-
Apple docking compatibility	Not supported
Headphone outputs	1
Power source	AC

Weight and Dimensions

Depth	201 mm
Width	169 mm
Height	218 mm
