Sony CMT-DF1 Service Manual

35
HCD-DF1

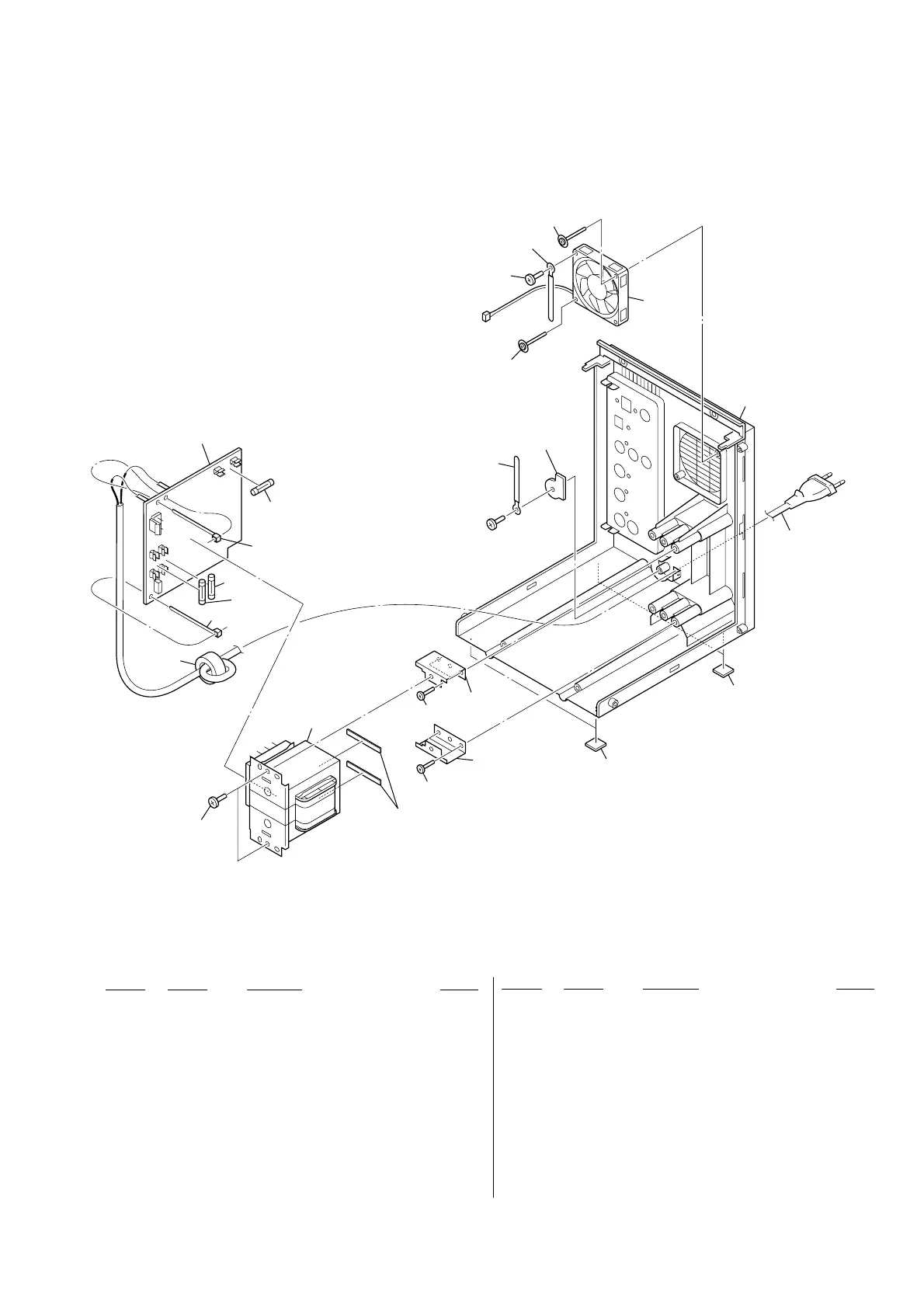

8-5. CABINET REAR SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 1-500-868-11 CORE, FERRITE
202 3-918-696-11 SCREW (M3X6 LOCK ACE)
203 3-564-708-01 SCREW (+P 2X18) (TYPE 2)
204 3-087-053-01 +BVTP 2.6 (3CR)
0 205 1-775-790-81 CORD, POWER (AUS)
0 205 1-827-597-81 CORD, POWER (TW)
0 205 1-834-301-11 CORD, POWER (KR)
0 205 1-834-302-11 CORD, POWER (AEP, RU, E, SP)
0 205 1-834-303-11 CORD, POWER (HK)
206 3-273-016-01 FOOT, RUBBER
207 3-254-145-01 SCREW (B3), (+) BV TAPPING
201
#2
not supplied
not supplied
not supplied
F1
F3
F2
not supplied
M1
not supplied
not supplied
(POWER board)
202
203
208
208
203
204
205
206
206
207
207
T1
209
209
208 4-237-065-01 CLAMP (L35)
209 3-701-748-00 CLAMP
0F1 1-532-500-33 FUSE (T0.63AL/250V)
0F2 1-532-388-33 FUSE (T2AL/250V)
0F3 1-532-388-33 FUSE (T2AL/250V)
M1 1-787-685-11 FAN, D.C. (50 SQUARE)
0T1 1-445-264-11 TRANSFORMER, POWER (AEP, RU)
0T1 1-445-265-11 TRANSFORMER, POWER
(E, HK, SP, TW, KR, AUS)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
