Sony CMT-DF1 Service Manual

9

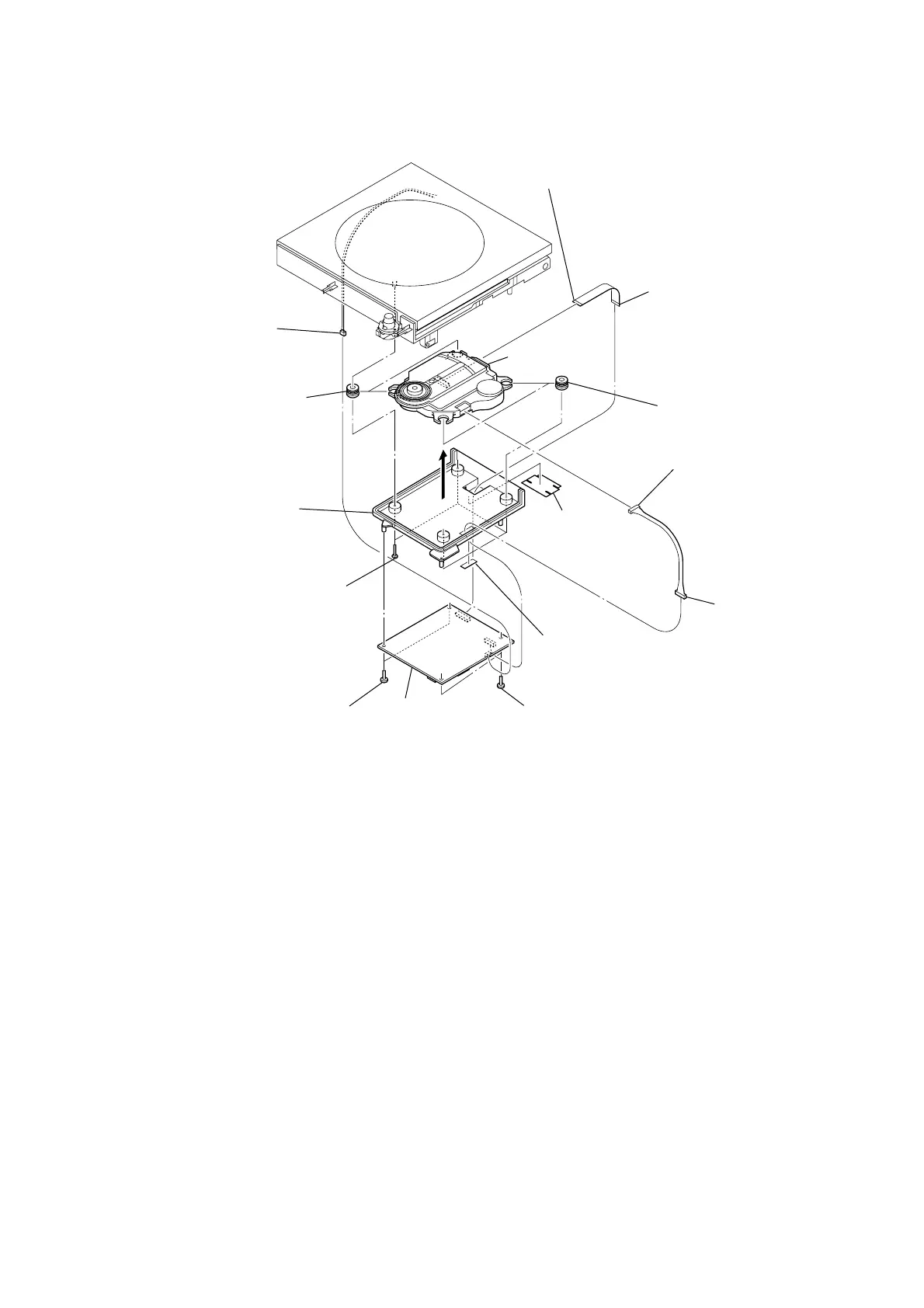

HCD-DF1
5 two screws
(BVTP2.6)
qd two insulators
qf OP assy
(KHM-313AHC)
4 flat type wire (24 core
)
(DVD board)
qa connector
qs flat type wire (24 core)
(OP assy)
3 sheet
(DVD FFC)
6 DVD board
9
5 two screws
(BVTP2.6)
q; plate DVD
qd two insulators
8 four screws
(P2 × 10)
1 connector
7 sheet
(DVD wire)
2 connector
3-7. OP ASSY (KHM-313AHC)

Sony CMT-DF1 Specifications

General

Bass reflex	Yes
Speaker type	1-way
RMS rated power	10 W
Number of speakers	2
Mid-range driver diameter	100 mm
Total Harmonic Distortion (THD)	10 %
Type	Home audio micro system
Cassette deck	No
Product color	Gray
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Supported radio bands	AM, FM
Preset stations quantity	40
Display type	LCD
Speaker depth	187 mm
Speaker width	145 mm
Speaker height	212 mm
Video recording	-
Apple docking compatibility	Not supported
Headphone outputs	1
Power source	AC

Weight and Dimensions

Depth	201 mm
Width	169 mm
Height	218 mm
