Sony CMT-DF1 Service Manual

7
HCD-DF1

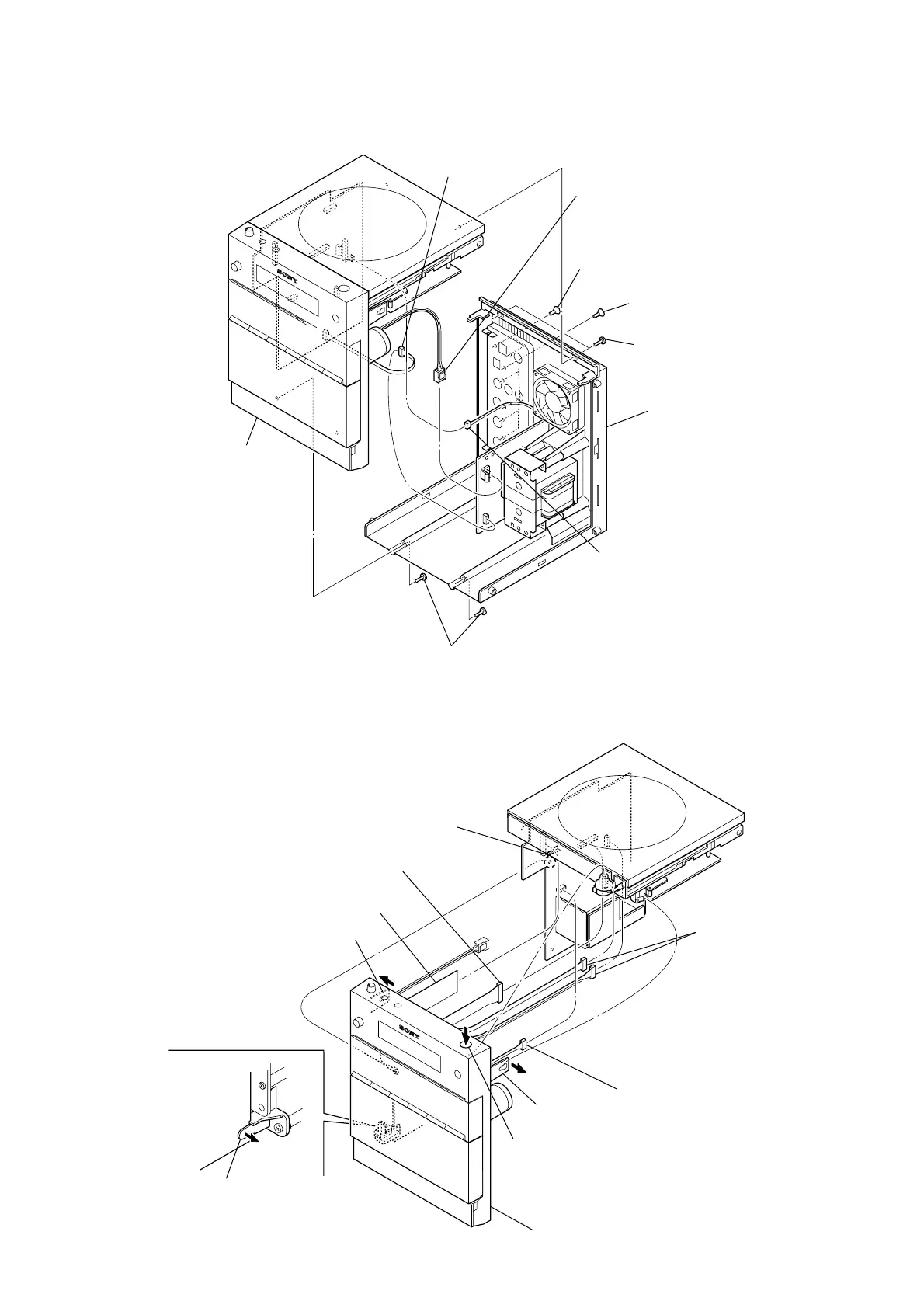

3-3. CABINET REAR BLOCK
9 cabinet rear block
8 DVD/front cabinet block
6 connector
(CN14)
2 two screws
(KTP2.6
× 6)
3 five screws
(KTP2 3
× 8)
5 connector
(CON10: AEP, RU, E, HK, SP, TW and KR models,
CON501: AUS model)
1 two screws
(P2.6
× 8)
7 connector
(CON5)
4 two screws
(P2.6
× 8)
3-4. CABINET FRONT BLOCK
6 holder (PWB)
7 claw
5 flexible flat cable
(12 core) (CON12)
2 two connectors
(CON2, CON100)
3 connector
(CON9)
q; cabinet front block
4 connector
(CON1)
1 Remove the solder.
8 claw
9 Push the button (power).
• Abbreviation
AUS: Australian model
HK : Hong Kong model
KR : Korean model
RU : Russian model
SP : Singapore model
TW : Taiwan model

Sony CMT-DF1 Specifications

General

Bass reflex	Yes
Speaker type	1-way
RMS rated power	10 W
Number of speakers	2
Mid-range driver diameter	100 mm
Total Harmonic Distortion (THD)	10 %
Type	Home audio micro system
Cassette deck	No
Product color	Gray
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Supported radio bands	AM, FM
Preset stations quantity	40
Display type	LCD
Speaker depth	187 mm
Speaker width	145 mm
Speaker height	212 mm
Video recording	-
Apple docking compatibility	Not supported
Headphone outputs	1
Power source	AC

Weight and Dimensions

Depth	201 mm
Width	169 mm
Height	218 mm
