Sony CMT-DF1 Service Manual

2626
HCD-DF1
HCD-DF1

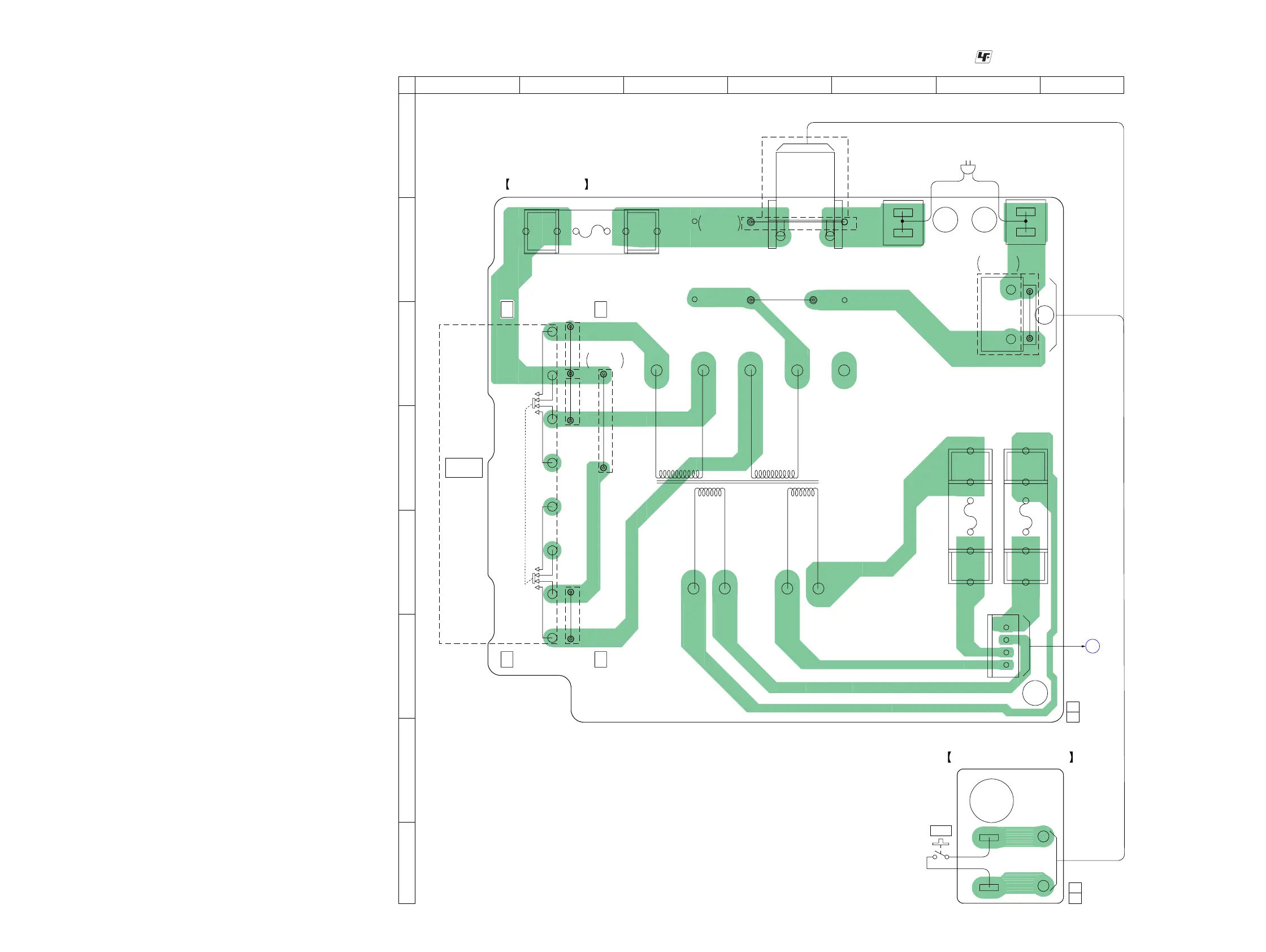

7-14. PRINTED WIRING BOARDS – POWER SUPPLY Section –
• See page 15 for Circuit Boards Location.
: Uses unleaded solder.
(Page 19)
T2
T3
CON10
J507
FH4
F3
FH3
CN14
FH5
FH6
F2
T1
J506
J501
J503
J502
FH1
FH2
F1
J505
CON501
J504
SW2
SW1
1-874-331-
11
(11)
POWER
TRANSFORMER
POWER BOARD
D
MAIN BOARD
CON4
-1
-2
(E, HK, SP)
(TW)
(AUS)
(KR)
(AEP, RU, AUS)
AEP, RU, E,
HK, SP, AUS
AEP, RU, E, HK,
SP, TW, KR
AEP, RU, E, HK,
SP, TW, KR
VOLTAGE
SELECTOR
12
(AUS)
(AC IN)
1
2
1
4
POWER SWITCH BOARD
1-874-334-
11
(11)
BLU
RED
1
2
A
B
C
D
E
F
G
H
1 2 3 4 5 6 7
120V
R
220 V
r
230 – 240V
POWER
