Sony CMT-DF1 Service Manual

33
HCD-DF1

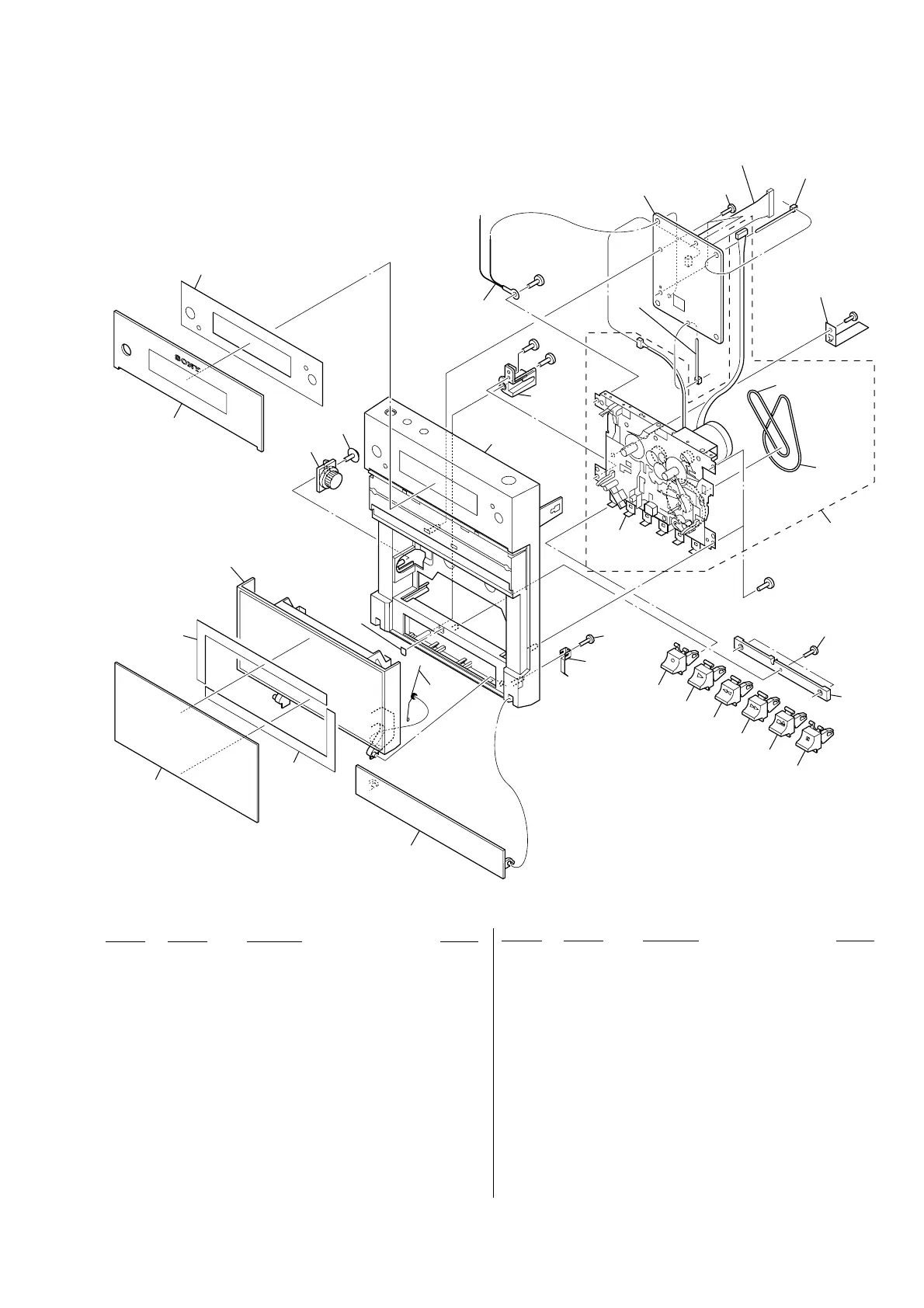

8-3. TAPE DECK SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 3-196-184-01 COVER CASSETTE
102 3-215-196-01 SPRING (CASSETTE)
103 3-214-987-01 SHEET (AZIMUTH)
104 3-196-215-01 PLATE (CASSETTE AL)
105 3-273-017-01 SHEET (CASSETTE AL)
106 3-196-183-01 CASSETTE DOOR
107 3-196-186-01 WINDOW DISPLAY
108 3-270-522-01 SHEET (DISPLAY)
109 X-2179-666-1 DAMPER ASSY (FR)
110 3-252-830-01 SCREW (B3), (+) PWH TAPPING
111 3-196-177-01 CABINET FRONT
112 3-087-053-01 +BVTP 2.6 (3CR)
113 1-797-374-21 DECK, MECH (H-21)
114 2-670-390-01 BELT (2)
115 2-670-389-01 BELT (1)
116 3-196-218-01 SPRING (PLATE CASSETTE)
117 3-196-191-01 PLATE (CASSETTE BUTTON)
118 3-196-213-01 BUTTON (CASSETTE) (S)
119 3-196-213-11 BUTTON (CASSETTE) (sA)
120 3-196-213-21 BUTTON (CASSETTE) (J)
121 3-196-213-31 BUTTON (CASSETTE) (j)
122 3-196-213-41 BUTTON (CASSETTE) (G)
123 3-196-213-51 BUTTON (CASSETTE) (a)
124 3-701-748-00 CLAMP
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#6 7-685-780-01 SCREW +PTT 2X3 (S)
101
#6
#2
#2
#2
#2
not
supplied
not supplied
not supplied
not supplied
not
supplied
not supplied
(DECK board)
102
103
104
105
105
106
107
108
109
110
111
112
112
112
113
114
115
116
117
118
119
120
121
122
123
124
124

Sony CMT-DF1 Specifications

General

Bass reflex	Yes
Speaker type	1-way
RMS rated power	10 W
Number of speakers	2
Mid-range driver diameter	100 mm
Total Harmonic Distortion (THD)	10 %
Type	Home audio micro system
Cassette deck	No
Product color	Gray
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Supported radio bands	AM, FM
Preset stations quantity	40
Display type	LCD
Speaker depth	187 mm
Speaker width	145 mm
Speaker height	212 mm
Video recording	-
Apple docking compatibility	Not supported
Headphone outputs	1
Power source	AC

Weight and Dimensions

Depth	201 mm
Width	169 mm
Height	218 mm
