Sony CMT-DF1 Service Manual

32
HCD-DF1

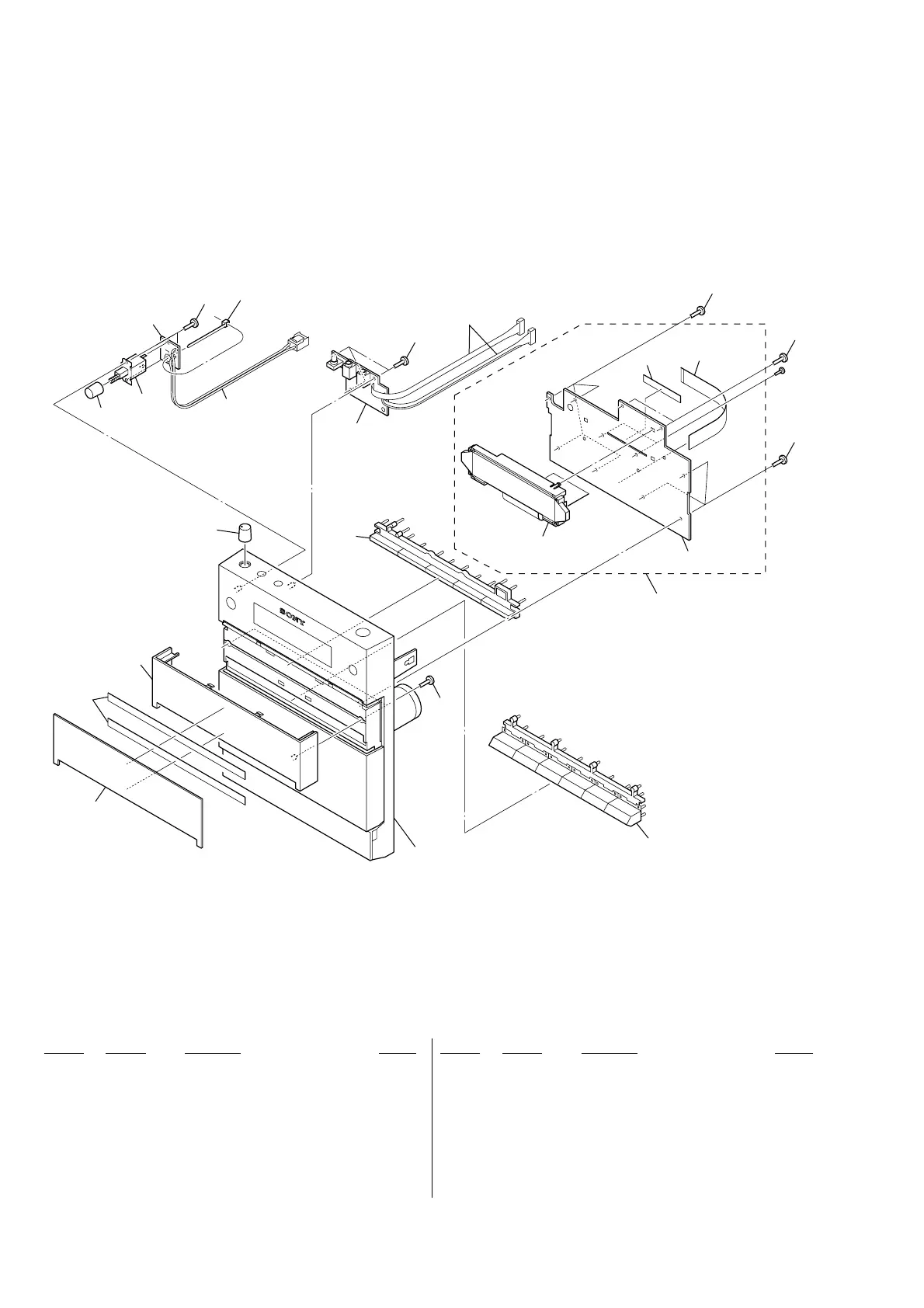

8-2. PANEL BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 3-196-216-01 PLATE (OPERATION AL)
52 3-273-018-01 SHEET (OPERATION AL)
53 3-196-185-01 PANEL (FRONT)
54 3-196-196-01 MIC VOLUME KNOB
55 3-196-211-01 BUTTON (POWER)
56 3-087-053-01 +BVTP 2.6 (3CR)
57 3-196-195-01 BUTTON (FUNCTION) (FUNCTION, TUNER/
BAND, DISPLAY, PROGRESSIVE, DSGX)
51
not supplied
TAPE deck section
CON11
#5
PANEL board
not supplied
not supplied
SW1
not supplied
(MICROPHONE board)
not supplied
(POWER
SWITCH board)
52
53
54
55
56
56
56
56
56
66
56
57
68
65
67
65 A-1283-893-A PANEL BOARD, COMPLETE
66 3-273-019-01 SHEET (HEAT RESISTANT)
67 3-701-748-00 CLAMP
68 X-2187-759-1 BUTTON ASSY, OPERATION
CON11 1-831-615-21 CABLE, FLEXIBLE FLAT (12 CORE)
SW1 1-786-268-11 SWITCH, POWER (POWER)
#5 7-685-504-19 SCREW +BTP 2.6X6 TYPE2 N-S
Ver. 1.3

Sony CMT-DF1 Specifications

General

Bass reflex	Yes
Speaker type	1-way
RMS rated power	10 W
Number of speakers	2
Mid-range driver diameter	100 mm
Total Harmonic Distortion (THD)	10 %
Type	Home audio micro system
Cassette deck	No
Product color	Gray
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Supported radio bands	AM, FM
Preset stations quantity	40
Display type	LCD
Speaker depth	187 mm
Speaker width	145 mm
Speaker height	212 mm
Video recording	-
Apple docking compatibility	Not supported
Headphone outputs	1
Power source	AC

Weight and Dimensions

Depth	201 mm
Width	169 mm
Height	218 mm
