Sony CMT-DF1 Service Manual

6
HCD-DF1
Note: Follow the disassembly procedure in the numerical order given.

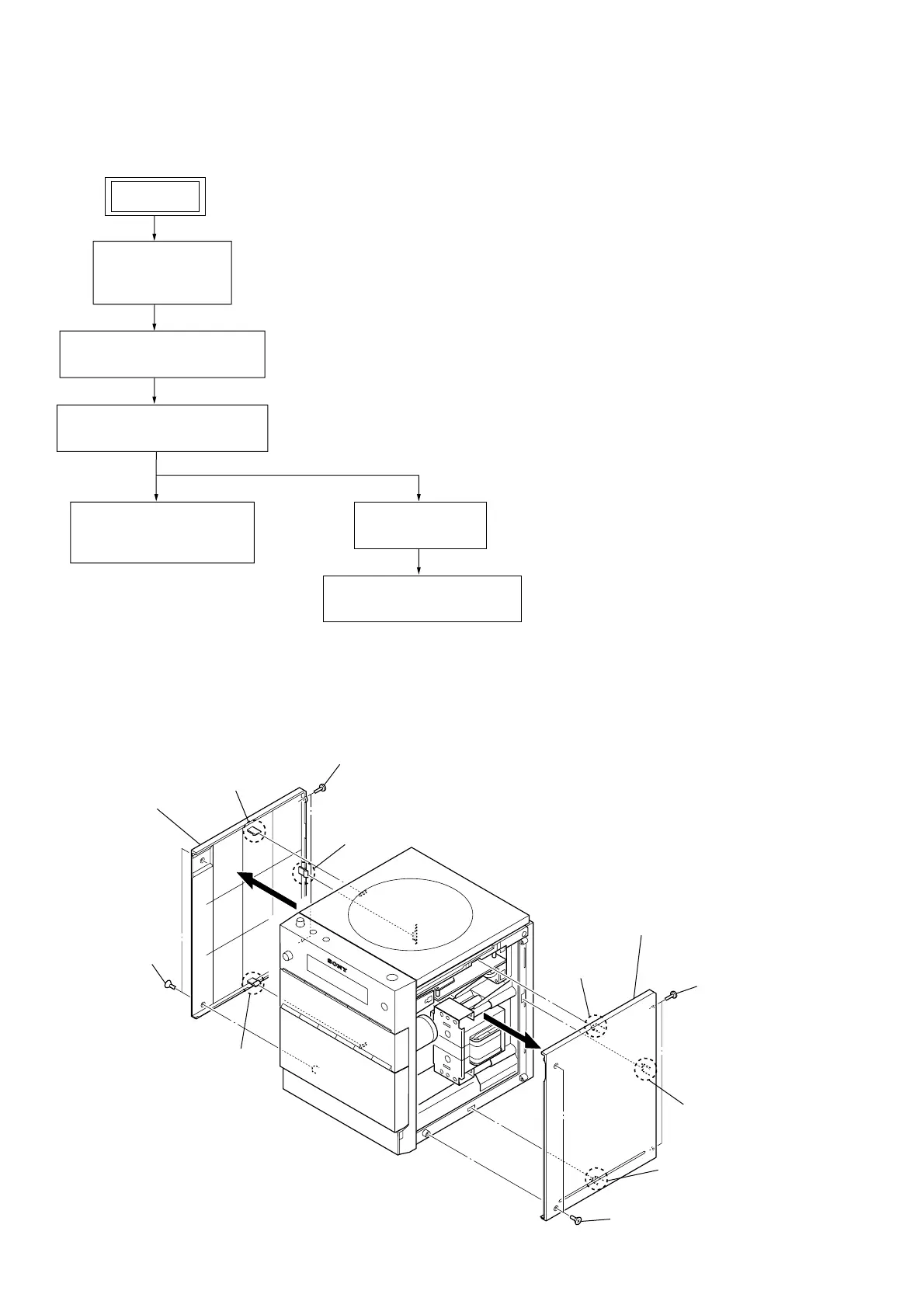

3-2. PANEL LEFT, PANEL RIGHT
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
7 two screws
(P2.6 × 8)
8 two screws
(KTP2 3 × 8)
q; claw
9 claw
qa claw
qs panel right
1 two screws
(P2.6 × 8)
3 claw
5 claw
6 panel left
2 two screws
(KTP2 3 × 8)
4 claw
3-2. PANEL LEFT,
PANEL RIGHT
(Page 6)
3-5. MECH DECK (H-21),
DECK BOARD
(Page 8)
3-3. CABINET REAR BLOCK
(Page 7)
3-4. CABINET FRONT BLOCK
(Page 7)
3-7. OP ASSY (KHM-313AHC)
(Page 9)
3-6. MAIN BOARD
(Page 8)
SET

Sony CMT-DF1 Specifications

General

Bass reflex	Yes
Speaker type	1-way
RMS rated power	10 W
Number of speakers	2
Mid-range driver diameter	100 mm
Total Harmonic Distortion (THD)	10 %
Type	Home audio micro system
Cassette deck	No
Product color	Gray
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Supported radio bands	AM, FM
Preset stations quantity	40
Display type	LCD
Speaker depth	187 mm
Speaker width	145 mm
Speaker height	212 mm
Video recording	-
Apple docking compatibility	Not supported
Headphone outputs	1
Power source	AC

Weight and Dimensions

Depth	201 mm
Width	169 mm
Height	218 mm
