Sony CMT-DF1 Service Manual

31
HCD-DF1
1
#1
#1
#1
#1
#4
#1
PANEL board section,
TAPE deck section
cabinet rear section
DVD section
2
2
2
3

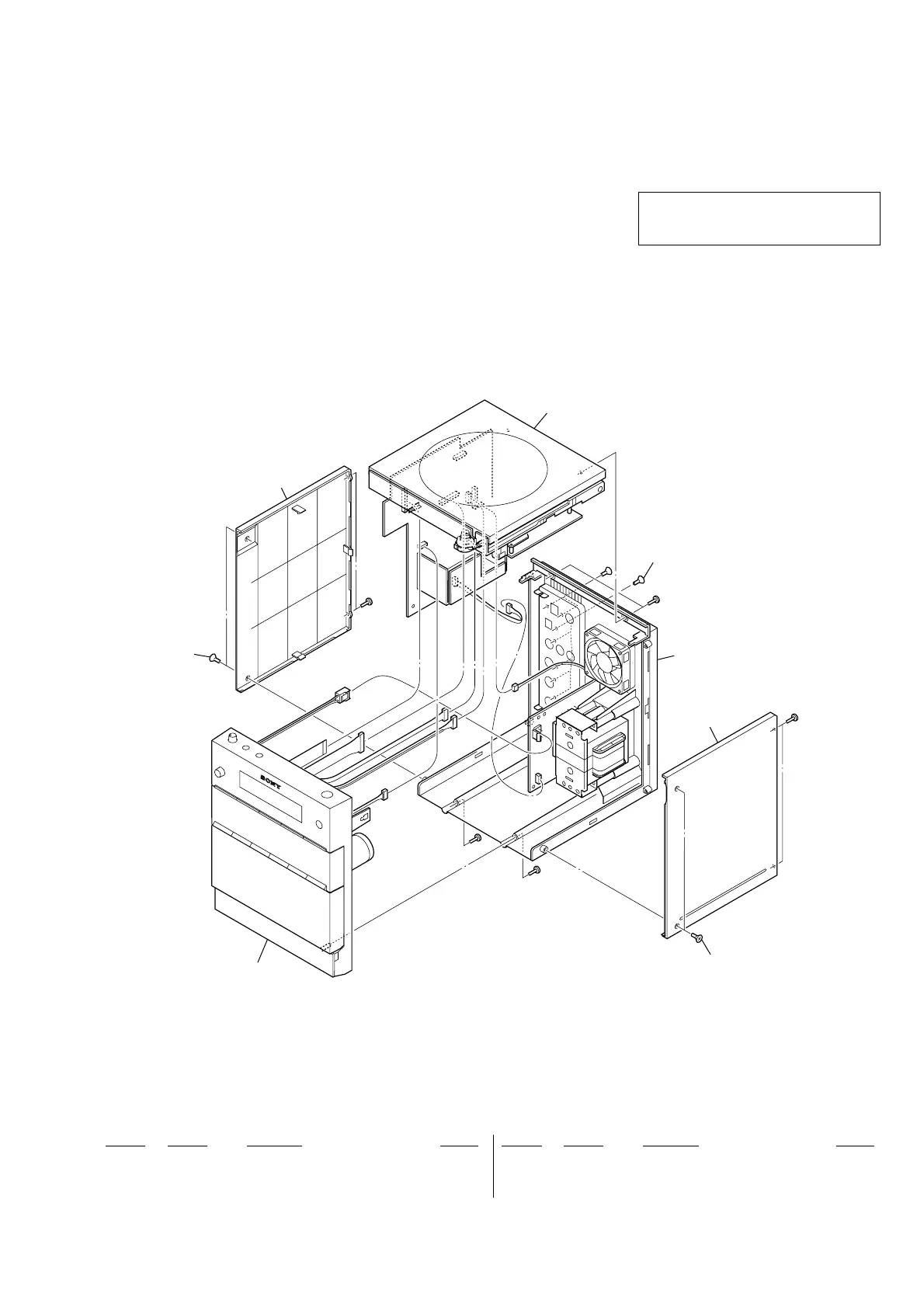

SECTION 8
EXPLODED VIEWS
Ref. No. Part No. Description Remark
8-1. PANEL SECTION
Ref. No. Part No. Description Remark
13-196-179-01 PANEL LEFT
22-580-644-01 SCREW, +KTP2 3X8
33-196-180-01 PANEL RIGHT
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
AUS: Australian model
HK : Hong Kong model
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
#1 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
#4 7-685-233-19 SCREW +KTP 2.6X6 TYPE2 NON-SLIT
KR : Korean model
RU : Russian model
SP : Singapore model
TW : Taiwan model

Sony CMT-DF1 Specifications

General

Bass reflex	Yes
Speaker type	1-way
RMS rated power	10 W
Number of speakers	2
Mid-range driver diameter	100 mm
Total Harmonic Distortion (THD)	10 %
Type	Home audio micro system
Cassette deck	No
Product color	Gray
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Supported radio bands	AM, FM
Preset stations quantity	40
Display type	LCD
Speaker depth	187 mm
Speaker width	145 mm
Speaker height	212 mm
Video recording	-
Apple docking compatibility	Not supported
Headphone outputs	1
Power source	AC

Weight and Dimensions

Depth	201 mm
Width	169 mm
Height	218 mm
