Sony CX-LDB20 - MAIN Board, Power Transformer; Lid (Cassette)

10
CX-LDB10/LDB20

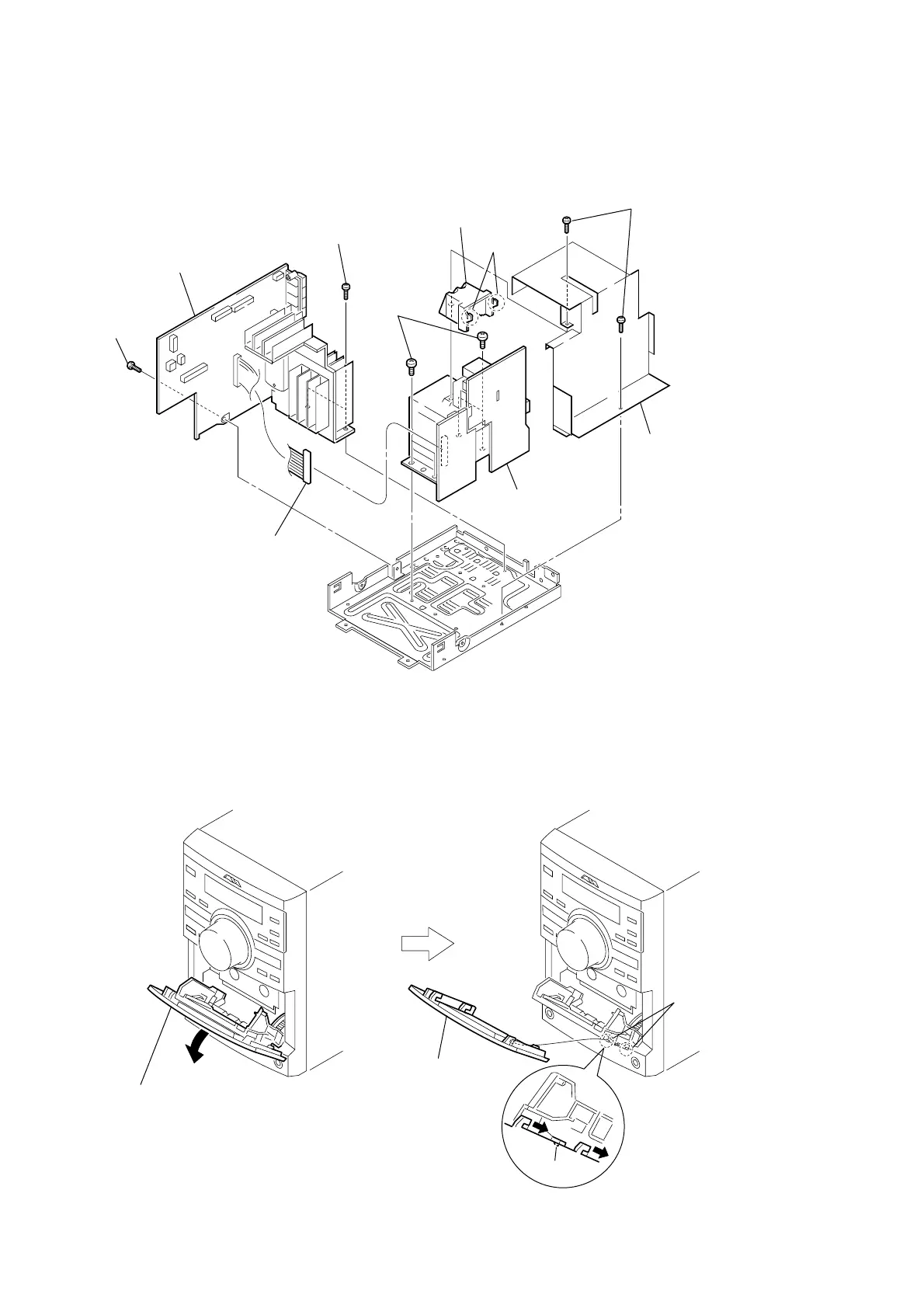

3-7. MAIN BOARD, POWER TRANSFORMER
3-8. LID (CASSETTE)
2 screw
(BVTP3
× 8)
3 two sumitite screws
(B3)
5 two tapping screws (B3)
9 four screws
7 two claws
8 holder (pwb PT)
6 shield cover
4 MAIN board
1 connector
(13P)(CN902)
q; power transformer
1 Open the lid cassette.
3 lid cassette
claw
two hooks
2
2
