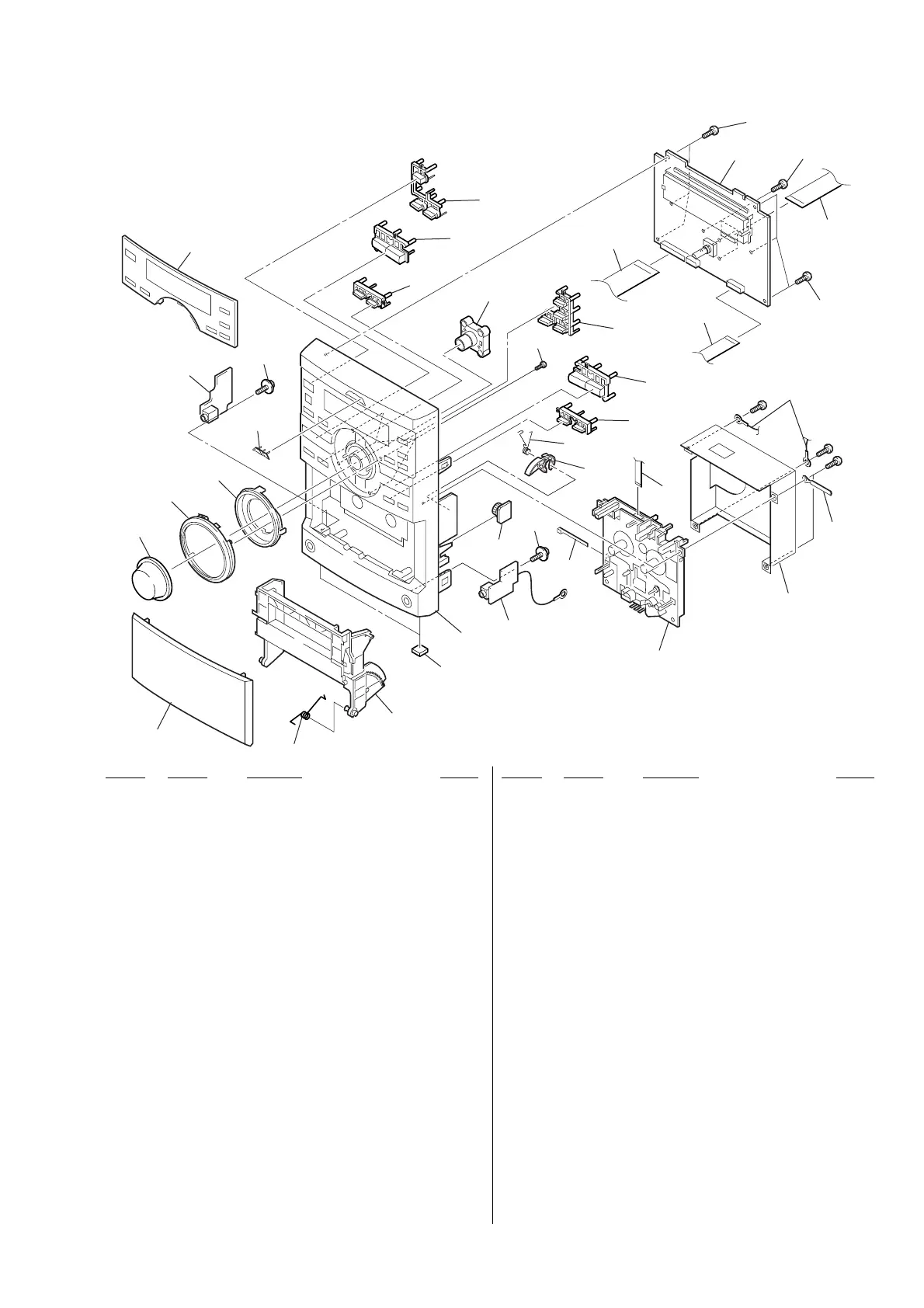

Sony CX-LDB20 - Front Panel Assembly Exploded View

37
CX-LDB10/LDB20
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 2-548-352-01 LID (CASSETTE) (LDB20)
51 2-548-352-21 LID (CASSETTE) (LDB10)
52 4-254-959-01 CASETTE SPRING
53 2-582-003-01 HOLDER (CASSETTE)
54 4-247-752-01 FOOT, RUBBER
55 2-546-919-01 KNOB (VOL)
56 2-546-920-01 RING (VOL)
57 2-548-364-01 PLATE (VOL), LIGHT GUIDE (LDB20)
57 2-548-364-11 PLATE (VOL), LIGHT GUIDE (LDB10)
58 A-1095-582-A HEADPHONE BOARD, COMPLETE (LDB20)
58 A-1095-622-A HEADPHONE BOARD, COMPLETE (LDB10)
59 3-252-828-01 SCREW (B2.6), (+) PWH TAPPING
60 2-548-353-01 WINDOW (DISPLAY)
61 2-548-363-01 BUTTON (ALBUM)
62 2-548-358-01 BUTTON (TAPE)
63 2-548-354-01 BUTTON (POWER)
64 2-548-367-01 HOLDER (KNOB)
65 3-254-070-01 SCREW
66 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
67 A-1095-579-A CONTROL BOARD, COMPLETE (LDB20: AEP)
67 A-1095-619-A CONTROL BOARD, COMPLETE (LDB10: AEP)
67 A-1108-989-A CONTROL BOARD, COMPLETE (LDB20: E51)
67 A-1109-022-A CONTROL BOARD, COMPLETE
(LDB10: MX, AR, E51)
67 A-1113-012-A CONTROL BOARD, COMPLETE (LDB20: RU)
67 A-1113-022-A CONTROL BOARD, COMPLETE (LDB10: RU)
67 A-1116-003-A CONTROL BOARD, COMPLETE
(LDB10: KR, SP, MY, AUS)
68 2-548-355-01 BUTTON (DISPLAY)
69 2-548-356-01 BUTTON (STOP)
70 2-548-362-01 BUTTON (TUNING)
71 4-231-841-01 SPRING (HEART CAM-B)
72 4-231-825-01 CAM (B), HEART
73 4-242-318-01 OIL-DAMPER (70N)
74 1-796-352-41 DECK, MECHANICAL
75 A-1095-585-A AUX BOARD, COMPLETE
76 2-548-351-01 CABINET (FRONT) (LDB20: E51, RU)
76 2-548-351-11 CABINET (FRONT) (LDB20: AEP)
76 2-548-351-31 CABINET (FRONT)
(LDB10: MX, KR, AR, SP, MY, E51, RU, AUS)
76 2-548-351-41 CABINET (FRONT) (LDB10: AEP)
77 1-829-022-11 WIRE (FLAT TYPE) (23 CORE)
78 1-828-994-11 WIRE (FLAT TYPE) (17 CORE)
79 1-828-987-11 WIRE (FLAT TYPE) (15 CORE) (AEP)
79 1-828-967-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP)
80 1-828-944-11 WIRE (FLAT TYPE) (7 CORE)
81 3-701-748-00 CLAMP
#2 7-685-646-14 SCREW +BVTP 3X8 TYPE2 N-S
8-2. FRONT PANEL SECTION
not
supplied
not
supplied
not
supplied
not
supplied
#2
#2
#2
51
55
58
60
61
62
64
65
68
69
66
66
66
67
70
80
81
71
72
63
56
57
52
53
54
76
75
79
77
78
74
73
59
59
