Sony CX-LDB20 - Printed Wiring Board - CONTROL Board (2;2)

2626
CX-LDB10/LDB20
CX-LDB10/LDB20

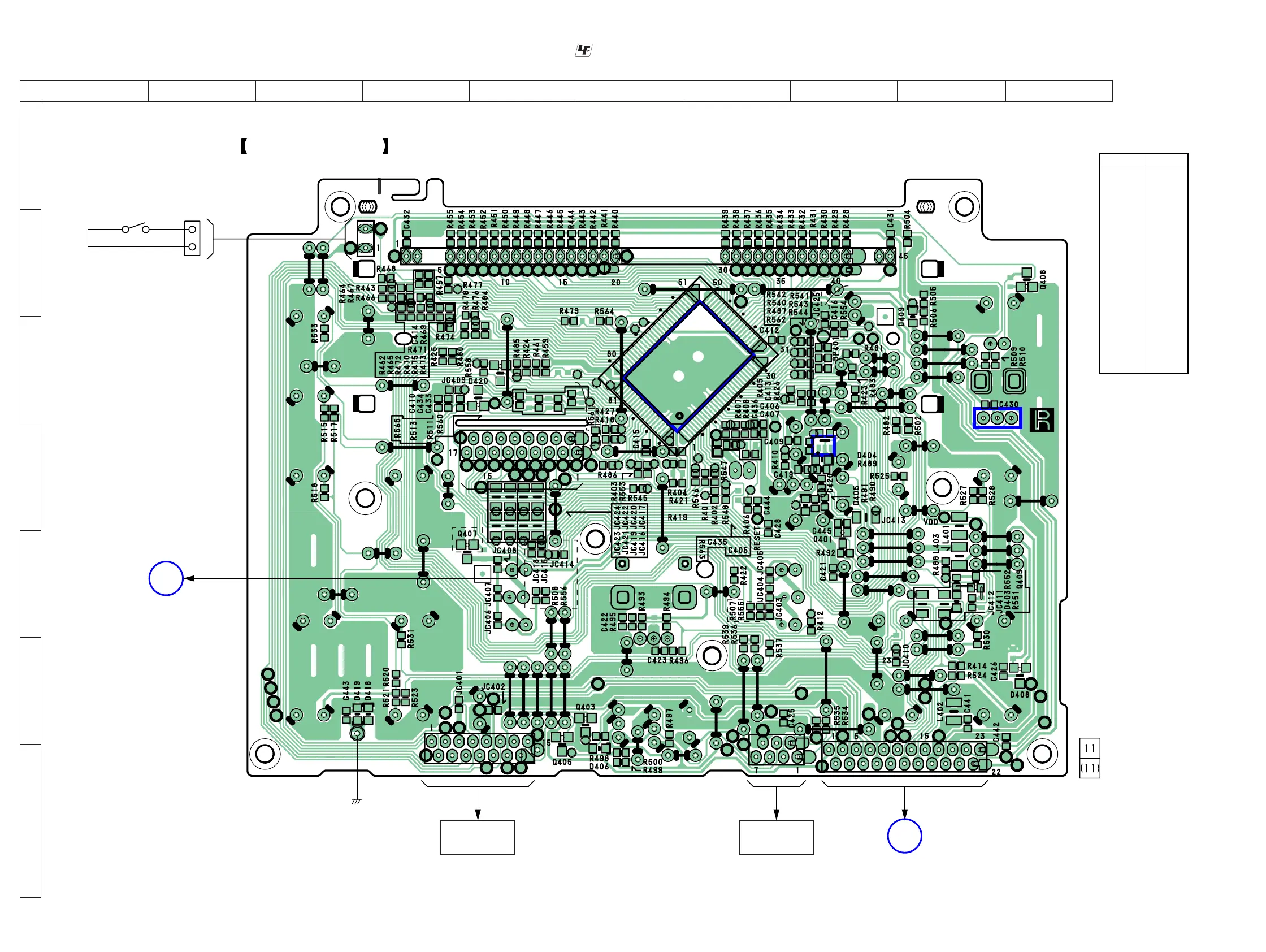

7-11. PRINTED WIRING BOARD — CONTROL BOARD (2/2) —
• See page 15 for Circuit Boards Location. :Uses unleaded solder.
IC401
IC403
IC402
CONTROL BOARD (SIDE B)
1-865-484-
MAIN
BOARD
CN002
(Page 21)
D
TUNER PACK TAPE DECK
CD DOOR
OPEN/CLOSE
MAIN
BOARD
CN003
(Page 21)
B
(FLUORESCENT INDICATOR TUBE)
FL401
CN401
W401
CN402
CN404
CN403
(CHASSIS)
12
A
B
C
D
E
34567 9
8
10
F
G
LDB20
LDB20
LDB20
LDB20
LDB20
• Semiconductor
Location
Ref. No. Location
D403 E-9
D404 D-8
D405 D-8
D406 G-6
D408 F-10
D409 B-9
D418 F-4
D419 F-3
D420 C-5
IC401 C-7
IC402 C-9
IC403 D-8
Q401 E-8
Q403 F-6
Q405 G-5
Q407 E-4
Q408 B-10
Q409 E-9
