Sony CX-LDB20 - Printed Wiring Board - CONTROL Board (1;2)

2525
CX-LDB10/LDB20
CX-LDB10/LDB20

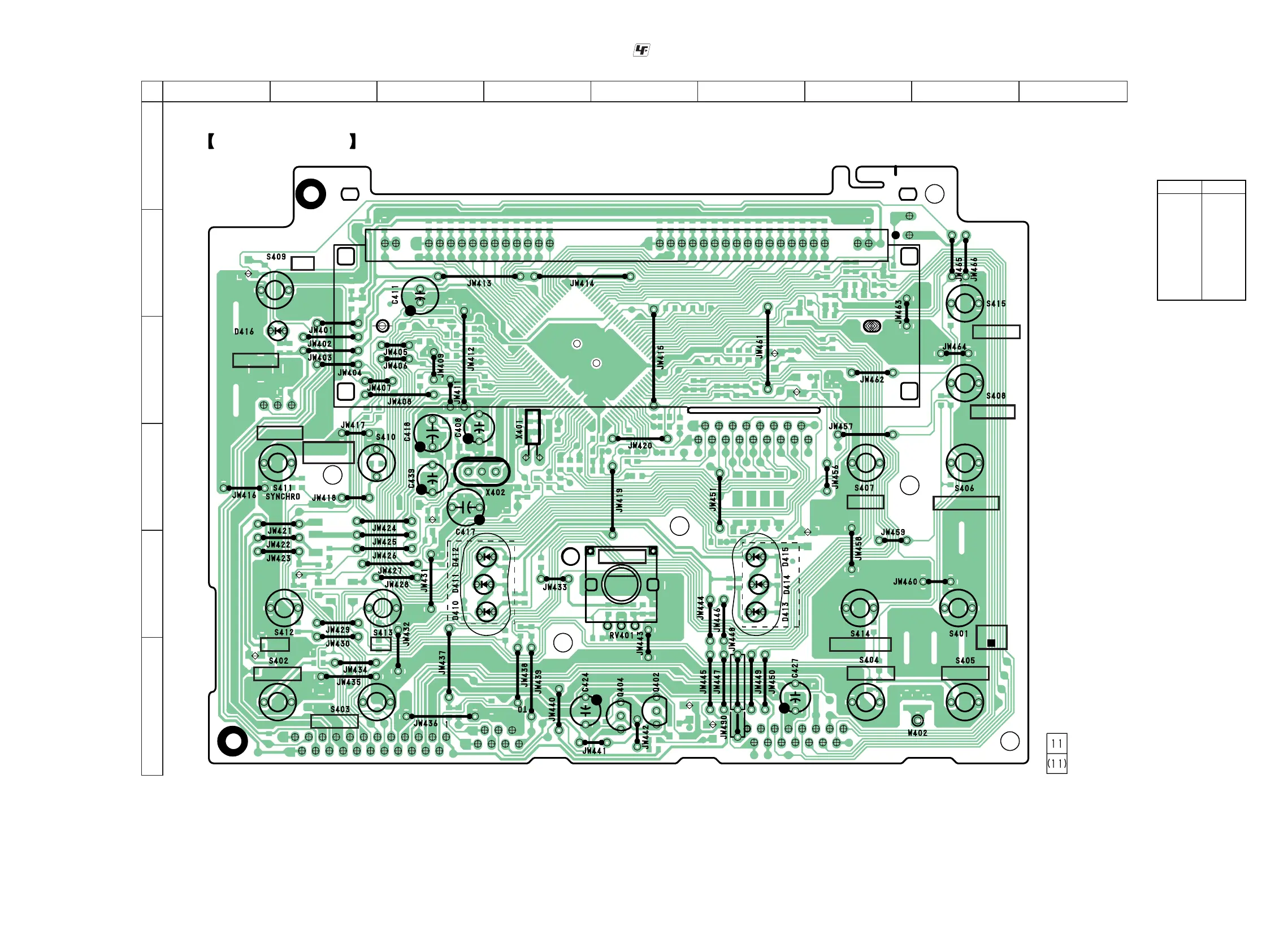

7-10. PRINTED WIRING BOARD — CONTROL BOARD (1/2) —
• See page 15 for Circuit Boards Location. :Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D410 E-4
D411 E-4
D412 E-4
D413 E-6
D414 E-6
D415 E-6
D416 C-2
Q402 F-5
Q404 F-5
I/1
STANDBY
CD
CD SYNC
zREC
PAUSE/START
TAPE
FOLDER –
FOLDER +
TUNING – TUNING +
TUNER/BAND
STOP
i-BASS
BASS/TREBLE
DISPLAY
AUDIO IN
VOLUME
LDB20
LDB20
CONTROL BOARD (SIDE A)
1-865-484-
12
A
B
C
D
E
34567 9
8
F
