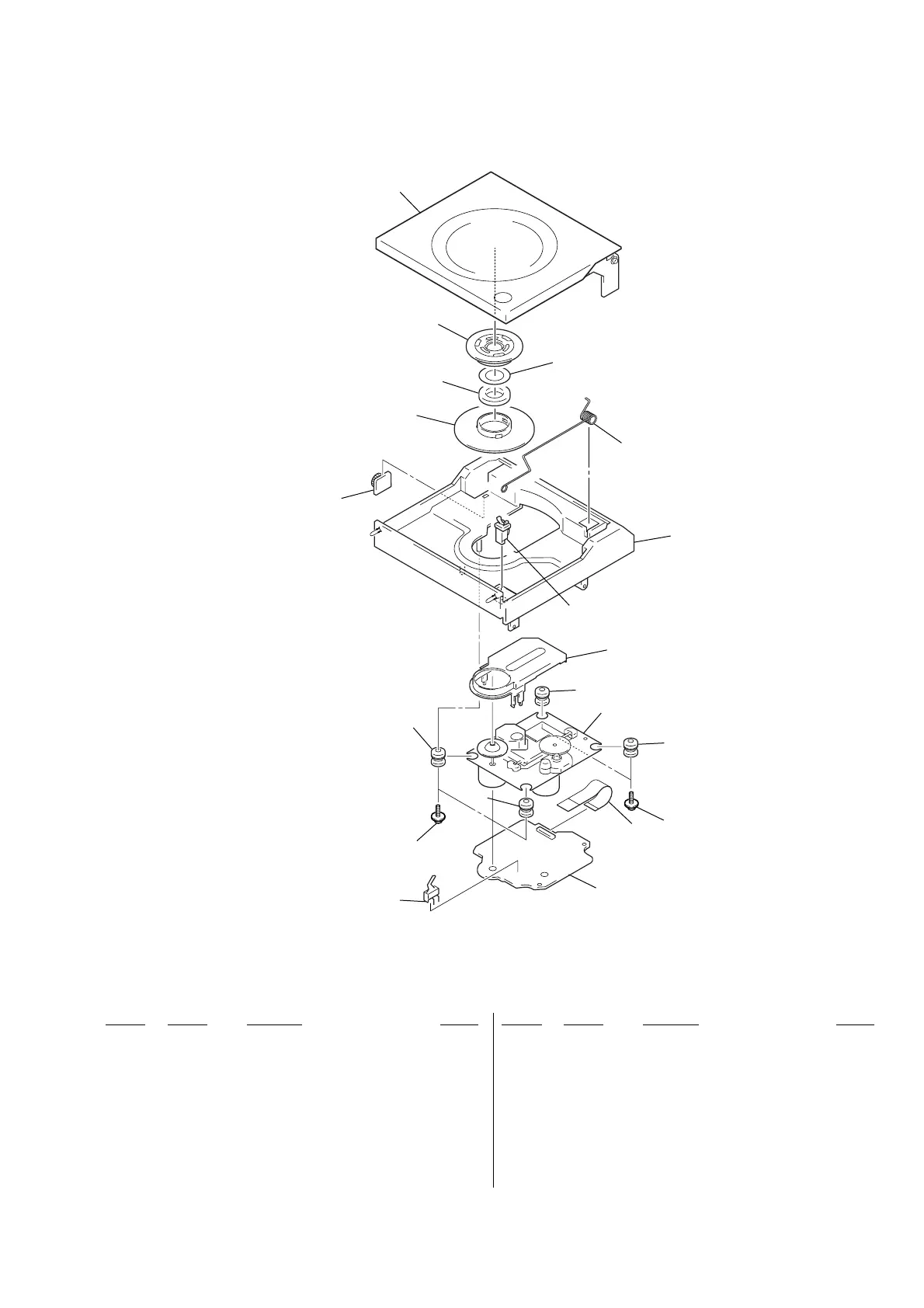

Sony CX-LDB20 - Top Panel Assembly Exploded View

39
CX-LDB10/LDB20
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 3-252-828-01 SCREW (B2.6), (+) PWH TAPPING
152 A-1119-080-A CD BOARD, COMPLETE (MX)
152 A-4751-434-A CD BOARD, COMPLETE (EXCEPT MX)
153 3-931-379-31 RUBBER, VIBRATION PROOF
154 3-931-379-21 RUBBER, VIBRATION PROOF
155 4-242-171-01 DAMPER 150 N
156 4-246-193-01 HOLDER, CHUCK A
157 4-249-238-01 MAGNET (18-30-5)
158 4-246-192-01 BASE, CHUCK N
159 4-246-195-21 LID, CD
160 4-246-191-11 PLATE, MAGNET
161 2-548-365-01 CABINET (TOP)
162 4-248-711-01 SPRING (CD)
163 1-827-992-11 WIRE (FLAT TYPE) (16 CORE)
0167 8-820-221-01 OPTICAL PICK-UP (KSM-213EDP/C2NP)
S101 1-771-853-11 SWITCH, DETECTION
S820 1-692-960-11 SWITCH, PUSH (1 KEY)
8-4. TOP PANEL ASSY
not supplied
S820
S101
153
153
161
154
167
154
155
156
157
160
162
158
159
163
151
151
152
