7
CX-LDB10/LDB20
SECTION 3
DISASSEMBLY

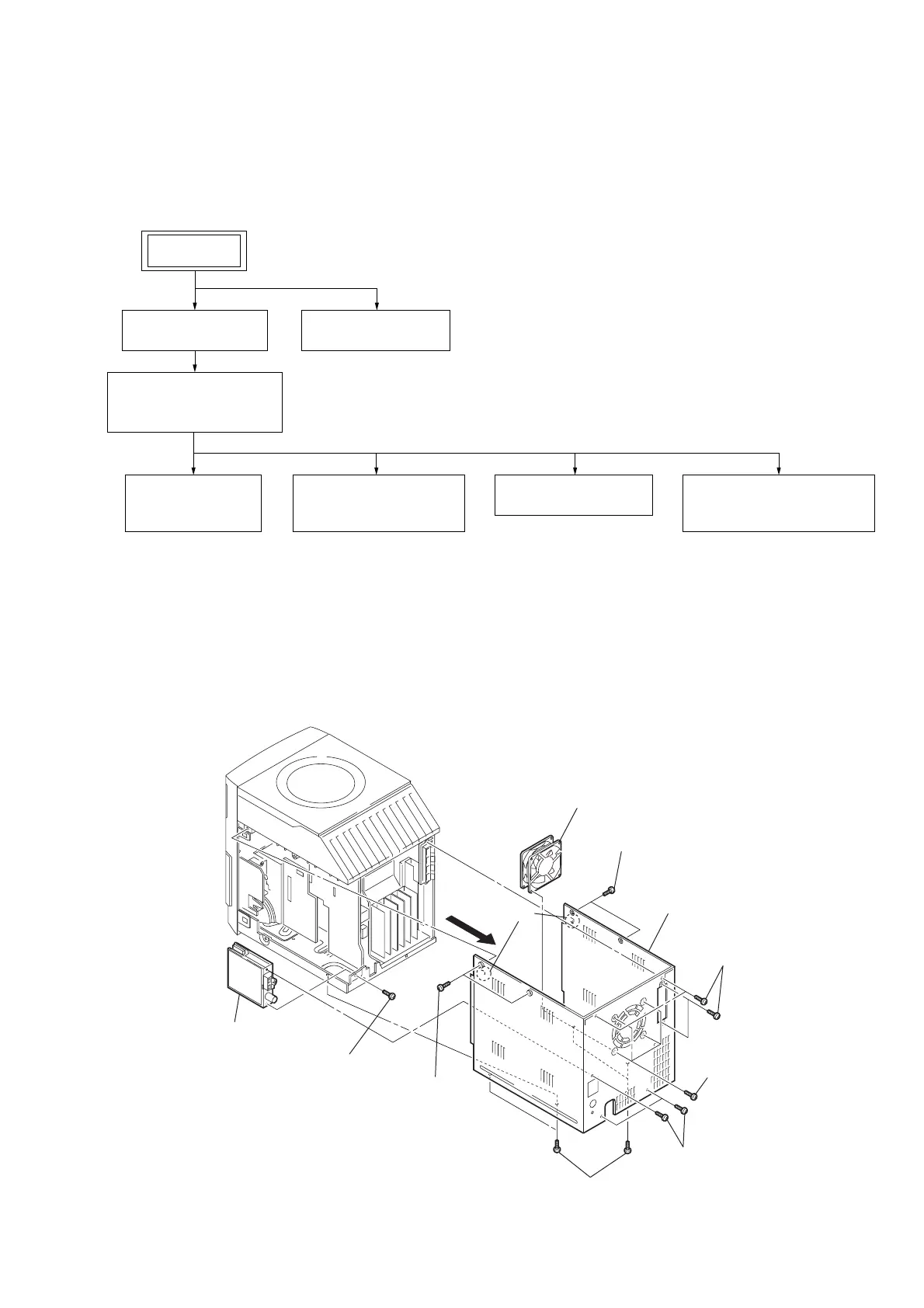

•This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
3-2. REAR CABINET
3-2. REAR CABINET
(Page 7)
3-8. LID (CASSETTE)
(Page 10)
3-5. MECHANICAL DECK
(CMAL5Z220A)
(Page 9)
3-7. MAIN BOARD,
POWER TRANSFORMER
(Page 10)
3-6. CONTROL BOARD
(Page 9)
3-4. BASE UNIT
(BU-K7BD81B)
(Page 8)
3-3. TOP PANEL ASSY,
FRONT PANEL ASSY
(Page 8)
SET
8 DC fan
9 rear cabinet
5 two screws
(BVTP3
× 8)
6 two screws
(BVTP3
× 8)
7 two claws
2 four screws
(BVTP3
× 8)
0 screw
(BVTP3
× 8)
1 four screws
(BVTP3
× 8)
4 four screws
(BVTP3
× 8)
3 three screws
(BVTP3
× 8)
qa AM/FM tuner
