Sony CX-LDB20 - Chassis Section Exploded View

38
CX-LDB10/LDB20
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-1095-588-A MAIN BOARD, COMPLETE (LDB20: AEP)
101 A-1095-625-A MAIN BOARD, COMPLETE (LDB10: AEP)
101 A-1108-992-A MAIN BOARD, COMPLETE (LDB20: E51)
101 A-1109-025-A MAIN BOARD, COMPLETE
(LDB10: MX, SP, MY, E51)
101 A-1113-015-A MAIN BOARD, COMPLETE (LDB20: RU)
101 A-1113-025-A MAIN BOARD, COMPLETE (LDB10: RU)
101 A-1119-304-A MAIN BOARD, COMPLETE
(LDB10: AR, KR, AUS)
102 1-830-474-11 WIRE (FLAT TYPE) (27 CORE)
103 X-2025-539-1 HEAT SINK ASSY
104 3-970-608-11 SUMITITE (B3), +BV
105 A-1118-890-A REG BOARD, COMPLETE
106 3-254-143-01 SCREW (B3), (+) BV TAPPING
107 4-900-386-01 SCREW
108 A-1095-599-A POWER (1) BOARD, COMPLETE
(LDB20: AEP, RU)
108 A-1095-628-A POWER (1) BOARD, COMPLETE
(LDB10: AEP, AR, KR, AUS, RU)
108 A-1108-995-A POWER (1) BOARD, COMPLETE (LDB20: E51)
108 A-1109-028-A POWER (1) BOARD, COMPLETE
(LDB10: E51, SP, MY)
109 A-1109-035-A POWER (1) BOARD, COMPLETE (LDB10: MX)
109 A-1095-601-A POWER (2) BOARD, COMPLETE (LDB20)
109 A-1095-629-A POWER (2) BOARD, COMPLETE (LDB10)
0110 1-769-079-41 CORD, POWER (KR)
0110 1-775-790-71 CORD, POWER (AUS)
0110 1-827-226-31 CORD, POWER (MX)
0110 1-829-387-11 CORD, POWER (AR)
0110 1-830-188-11 CORD, POWER (AEP, E51, SP, MY, RU)
0111 3-703-244-00 BUSHING (2104), CORD (EXCEPT MX)
0111 3-703-571-12 BUSHING (S) (4516), CORD (MX)
112 3-252-829-01 SCREW (B3), (+) BV TAPPING
(LDB10: MX, E51, SP, MY/LDB20)
0T902 1-443-674-11 TRANSFORMER, POWER (LDB20: AEP, RU)
0T902 1-443-675-11 TRANSFORMER, POWER (LDB10: AEP, RU)
0T902 1-443-727-11 TRANSFORMER, POWER (LDB20: E51)
0T902 1-443-728-11 TRANSFORMER, POWER
(LDB10: MX, SP, MY, E51, AUS)
0T902 1-443-732-11 TRANSFORMER, POWER (LDB10: AR, KR)
#2 7-685-646-14 SCREW +BVTP 3X8 TYPE2 N-S

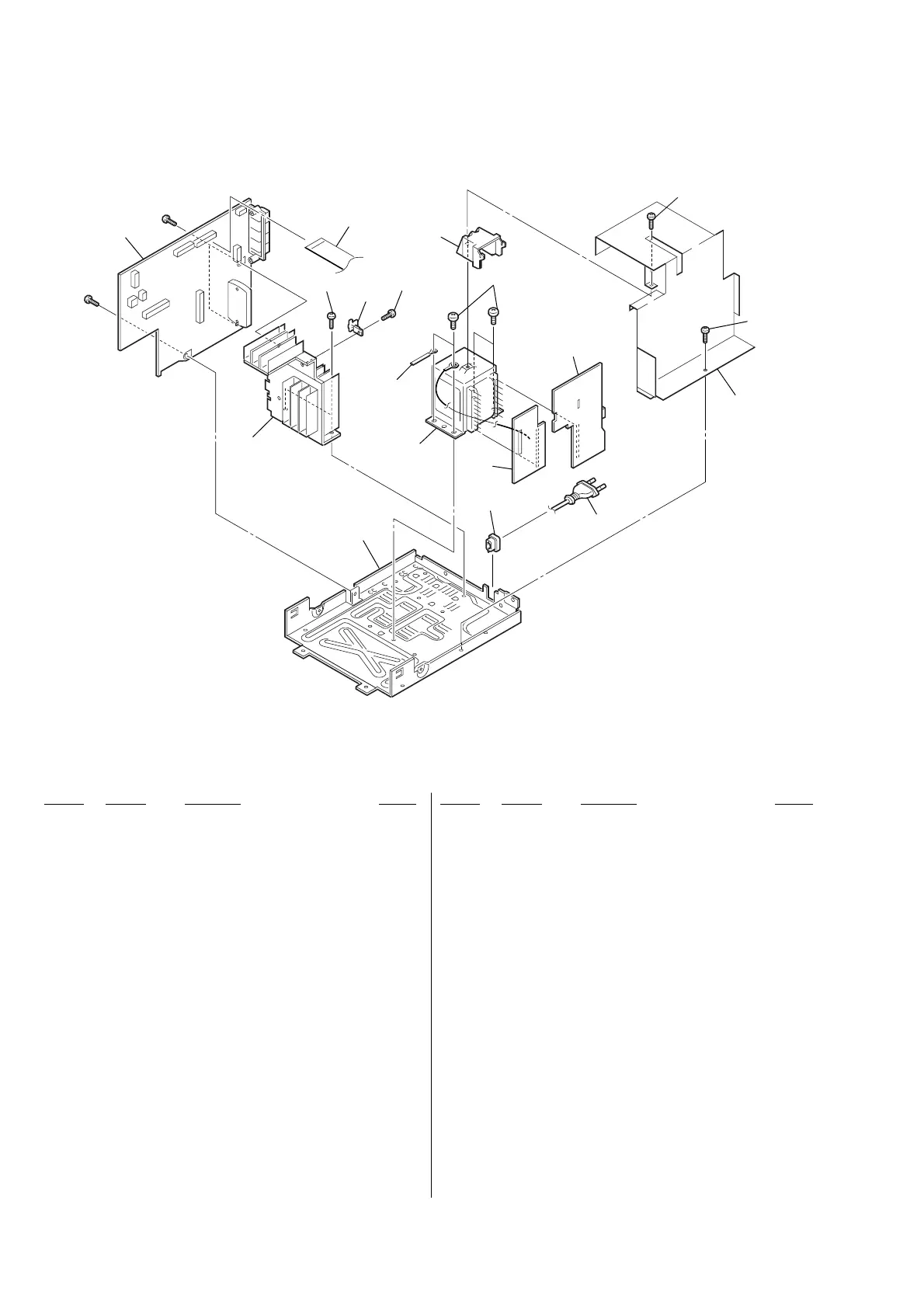

8-3. CHASSIS SECTION
not
supplied
not
supplied
not
supplied
not
supplied
T902
#2
#2
103
102
104
105
106
112
106
110
109
108
111
107
101
