Sony CX-LDB20 - Mechanical Deck (CMAL5 Z220 A); CONTROL Board

9
CX-LDB10/LDB20

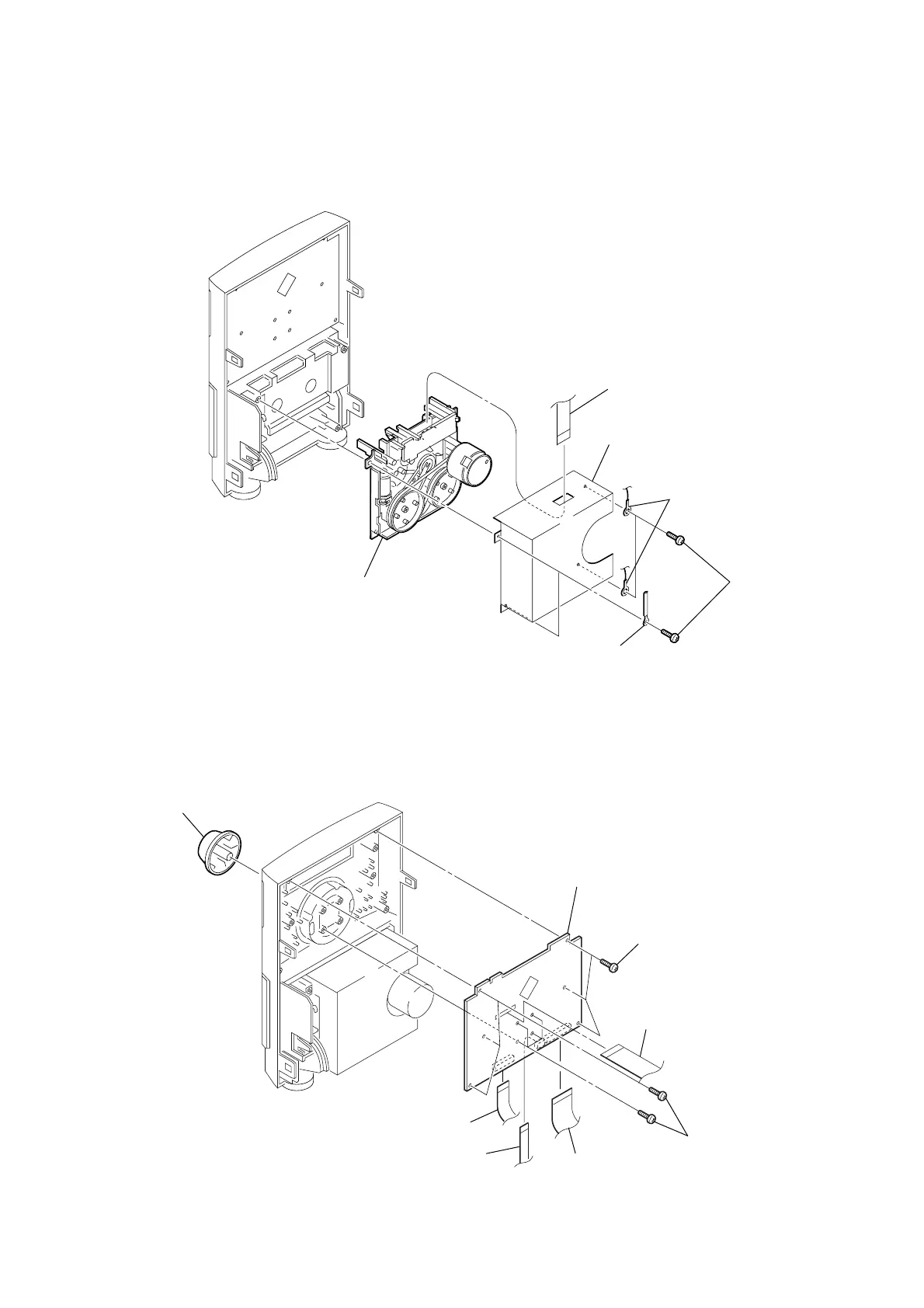

3-5. MECHANICAL DECK (CMAL5Z220A)
3-6. CONTROL BOARD
2 four screws
(BVTP3 × 8)
3 coating clip
4 two earth wires
1 wire (flat type)
(7core)
5 plate (shield cassette)
6 mechanical deck (CMAL5Z220A)
8 CONTROL board
2 three screws
(BVTP2.6
× 8)
3 seven screws
(BVTP2.6
× 8)
1 knob (VOL)
4 wire (flat type)
(17core) (CN401)
5 wire (flat type)
(23core) (CN403)
6 wire (flat type)
(7core) (CN404)
7 wire (flat type)
(11core) (CN402)
