Sony CX-LDB20 - Exploded Views; Overall Section Exploded View

36
CX-LDB10/LDB20
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS:Australian model
AR : Argentine model
E51 : Chilean and peruvian models
KR : Korea model
MX : Mexican model
MY : Malaysia model
RU : Russian model
SP : Singapore model
Ref. No. Part No. Description Remark
1 1-693-626-11 TUNER (FM/AM) (AEP)
1 1-693-628-21 TUNER (FM/AM) (MX, AR, SP, MY, E51, AUS)
1 1-693-629-11 TUNER (FM/AM) (KR, RU)
2 2-548-366-01 CABINET (REAR) (LDB20)
2 2-548-366-21 CABINET (REAR) (LDB10)

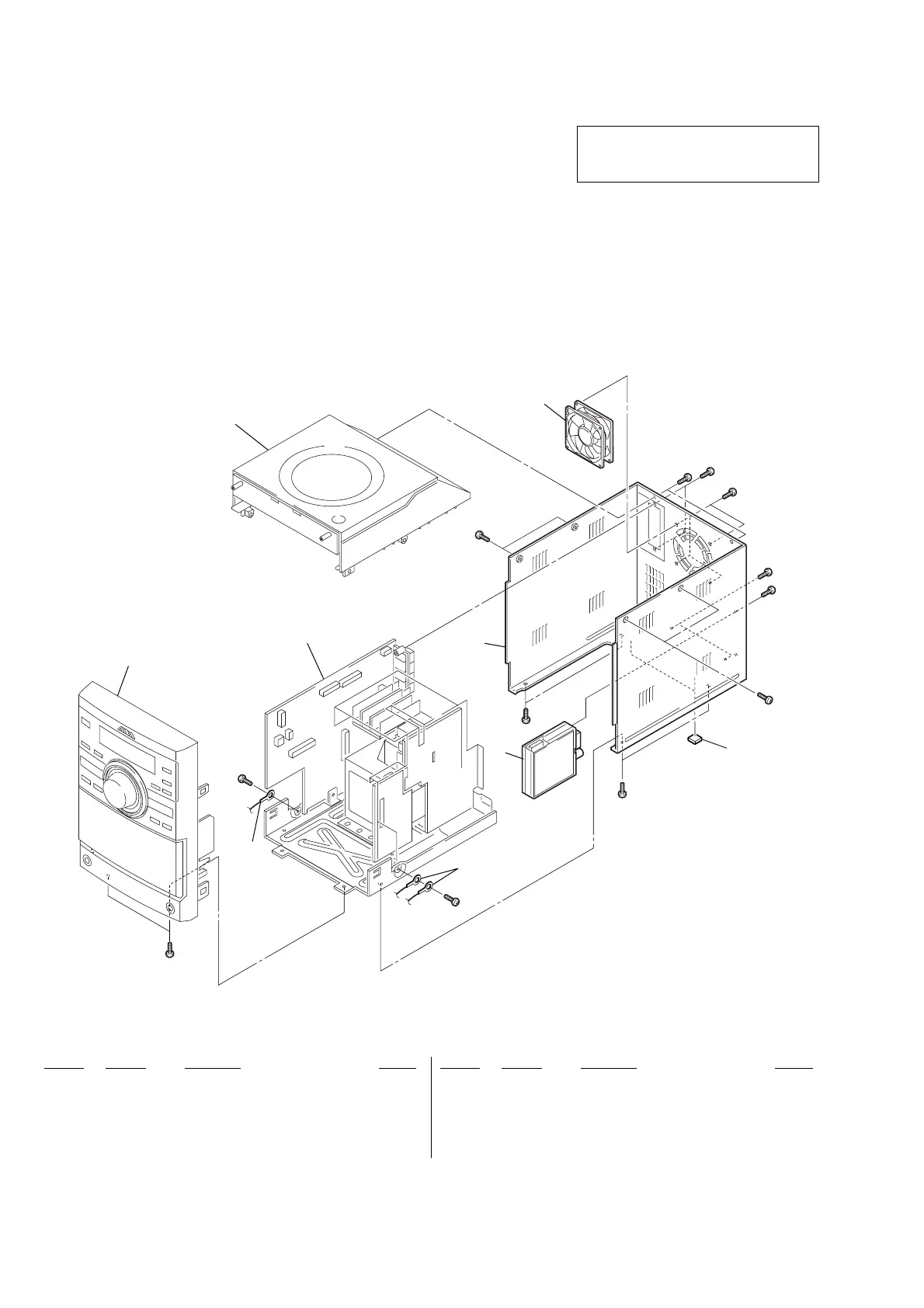

8-1. OVERALL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
3 1-787-360-11 DC FAN
4 4-247-752-01 FOOT, RUBBER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-646-14 SCREW +BVTP 3X8 TYPE2 N-S
Ref. No. Part No. Description Remark
not
supplied
not
supplied
front panel section
chassis section
top panel assy
#1
#1
#1
#2
#2
#2
#2
#2 #2
#2
#2
#
2
1
4
2
3
