31
CX-LDB10/LDB20

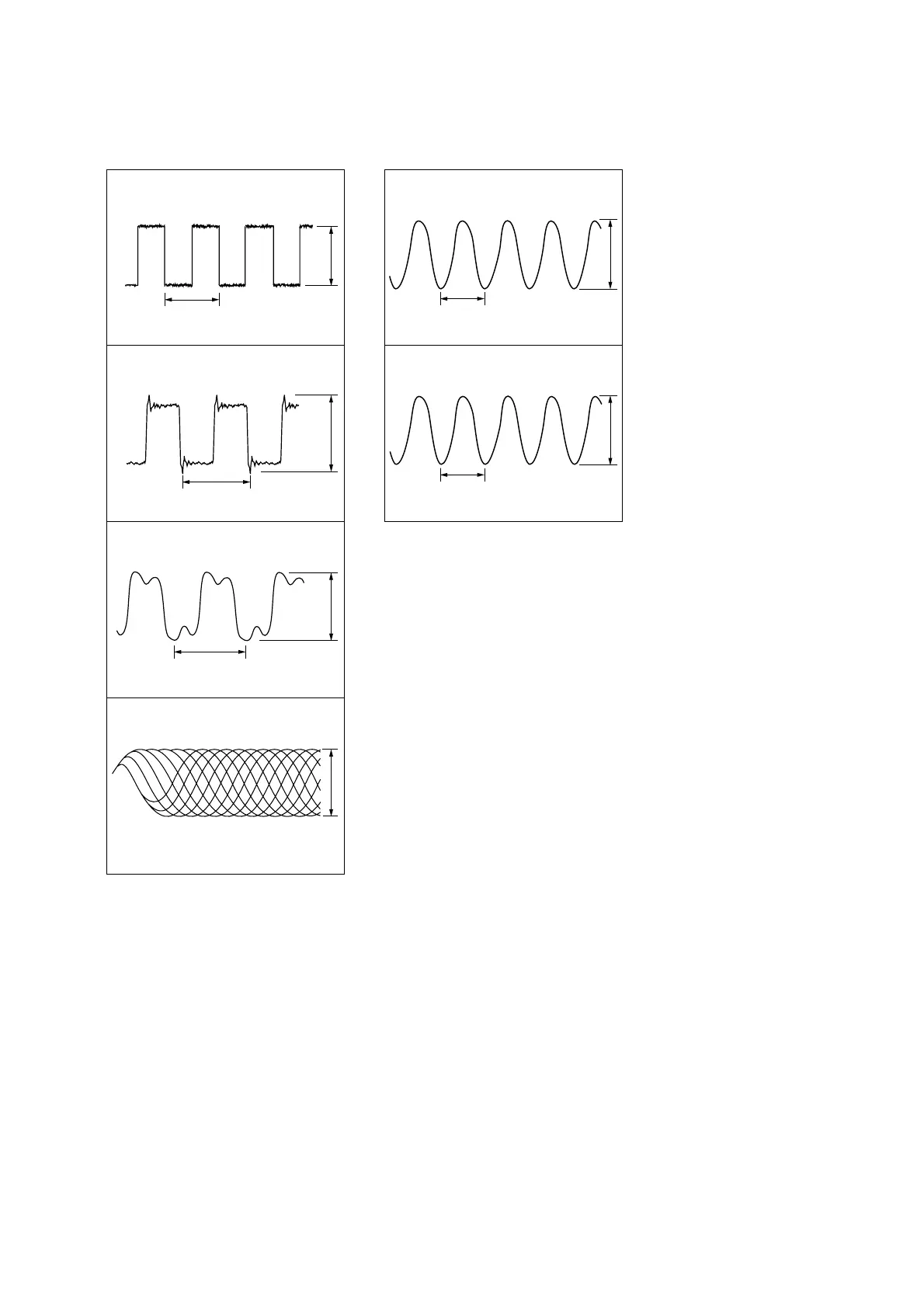

• Waveforms
– CD Board –
1 IC101 yd (LRCK)
2 IC101 yh (BCK)
3 IC101 uj (XTAO)
4 IC101 ra (RFACO)
4.4 Vp-p
2 V/DIV, 10
µ s/DIV
22.8 µ s
4.5 Vp-p
2 V/DIV, 100 ns/DIV
472 ns
4.5 Vp-p
2 V/DIV, 20 ns/DIV
59 ns
Approx.800 mVp-p
200 mV/DIV, 1
µ s/DIV
5 IC401 0 (I-XT1)
6 IC401 qd (XIN-16 MHz)
3.7 Vp-p
1 V/DIV, 10
µ s/DIV
30.5 µ s
2.9 Vp-p
1 V/DIV, 50 ns/DIV
100 ns
– CONTROL Board –
