6-5
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_ADJ
6-1. CAMERA SECTION ADJUSTMENTS
1-1. PREPARATIONS BEFORE ADJUSTMENTS
(CAMERA SECTION)
1-1-1. Preparations

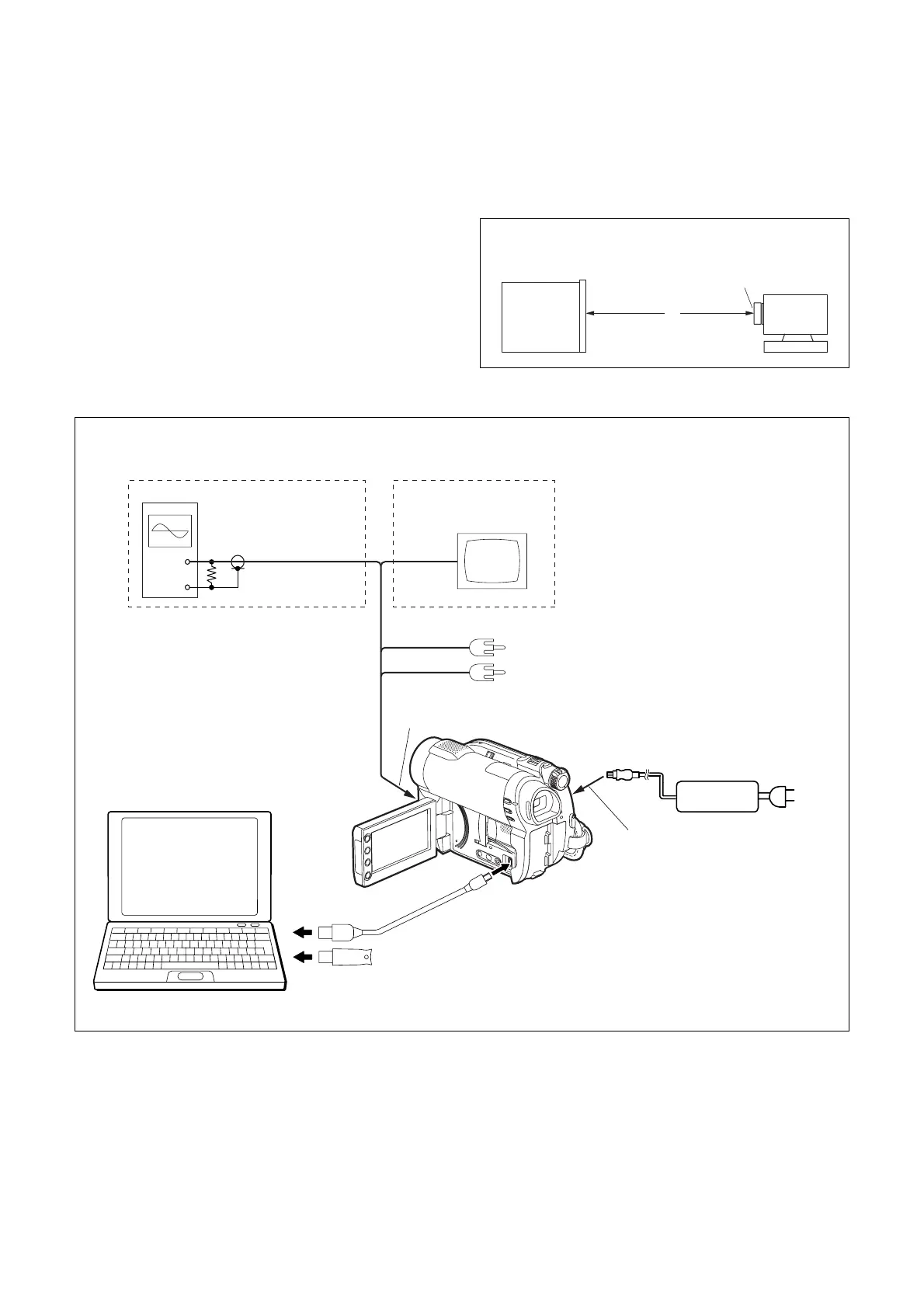

1) Connect the equipment for adjustments according to Fig. 6-1-3.
Fig. 6-1-2
Fig. 6-1-3
Pattern box
Front of the lens
L = 1 m (PTB-450)
L = 40 cm (PTB-1450)
L
Camera
PC
(The SeusEX must be installed in the PC.)
OS: Windows 2000/XP
RAM: 256MB or more recommended
USB: 2.0 recommended (also compatible with 1.1)
Two connectors are required.
HASP Key
USB cable
(1-829-868-31)
To DC IN jack
AC IN
AC adaptor
AC-L200/L200B
(1-479-285-21/41)
Audio R
Video
S-Video or
Video
Color monitor
Video system Adjustment Camera system Adjustment
Oscilloscope
Ter minated
75 Ω
Audio L
To A/V jack
To Next Page
