Sony DCR-DVD110E - LENS SECTION (DVD310 E;DVD410 E;DVD710;DVD710 E;DVD810;DVD810 E)

5-10
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2
HARDWARE LIST

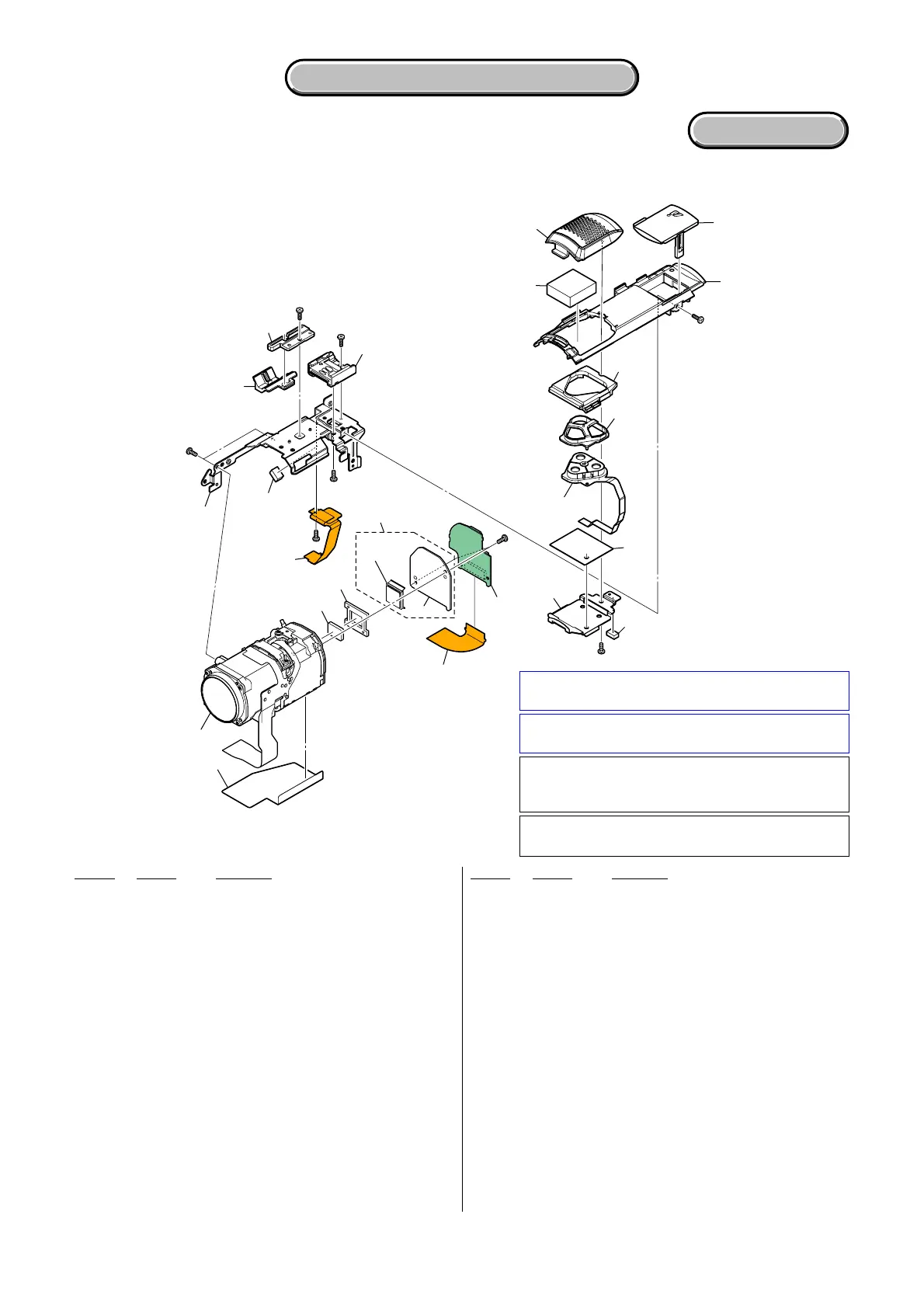

5-1-9. LENS SECTION (DVD310E/DVD410E/DVD710/DVD710E/DVD810/DVD810E)
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
* 401 3-281-814-01 SHEET, LENS TERMINAL PROTECTION
402 A-1248-849-A LENS (BLOCK ASSY 1180 (J1))
403 1-788-523-11 OPTICALFILTER BLOCK (OFB-06-11)
404 3-088-645-01 RUBBER (Z), SEAL
405 A-1511-867-A CCD BLOCK ASSY (1M SSGE) (CCD IMAGER)
(Note 1)
406 1-874-947-11 FP-838 FLEXIBLE BOARD
407 A-1244-919-A CD-672 BOARD, COMPLETE
(DVD710E/DVD810E)
407 A-1244-919-A CD-687 BOARD, COMPLETE (Note 2)
408 1-874-949-11 FP-840 FLEXIBLE BOARD
* 409 3-281-802-01 FRAME, LENS
410 3-281-804-01 KNOB (262), NS
* 411 2-699-280-01 PLATE, NS CLICK
413 3-281-806-01 GRILLE, MICROPHONE (262)
414 A-1438-988-A COVER ASSY (262), SHOE
(DVD310E/DVD710/DVD710E)
414 A-1438-989-A COVER ASSY (263), SHOE
(DVD410E/DVD810/DVD810E)
415 3-281-813-01 CABINET, TOP (262)
(DVD310E/DVD710/DVD710E)
415 3-281-813-11 CABINET, TOP (262)
(DVD410E/DVD810/DVD810E)
* 416 3-281-810-01 INSULATOR
* 417 3-281-808-01 HOLDER, MICROPHONE
* 418 3-281-811-01 CUSHION, MICROPHONE
* 419 2-898-042-01 GASKET (MIC)
* 420 3-096-097-01 CUSHION (P), EMC
421 3-281-807-01 SCREEN, WIND
CN901 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)
MIC901 1-542-723-31 MICROPHONE UNIT
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
Note 1: Be sure to read “Precautions for Replacement of
Imager” on page 4-2 when changing the imager.
Note 1: イメージャの交換時は4-3ページのイメージャ
交換時の注意を必ずお読みください。
401
402
403
404
408
409
410
411
406
405
(Note 1)
407
(Note 2)
ns
(IC7002)
#12
#3
#3
CN901
#11
#11
MIC901
ns
#3
#2
#3
ns
420
413
414
415
416
417
418
419
421
Note 2: CD-687基板は供給されません。代わりにCD-672
基板が供給されます。
Note 2: CD-672 complete board is supplied instead of
CD-687 complete board, because CD-672 complete
board and CD-687 complete board are compatible.
