Sony DCR-DVD110E - CABINET R SECTION-2

5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD110E/DVD115E/DVD310E/DVD410E/DVD610/
DVD610E/DVD710/DVD710E/DVD810/DVD810E_L2

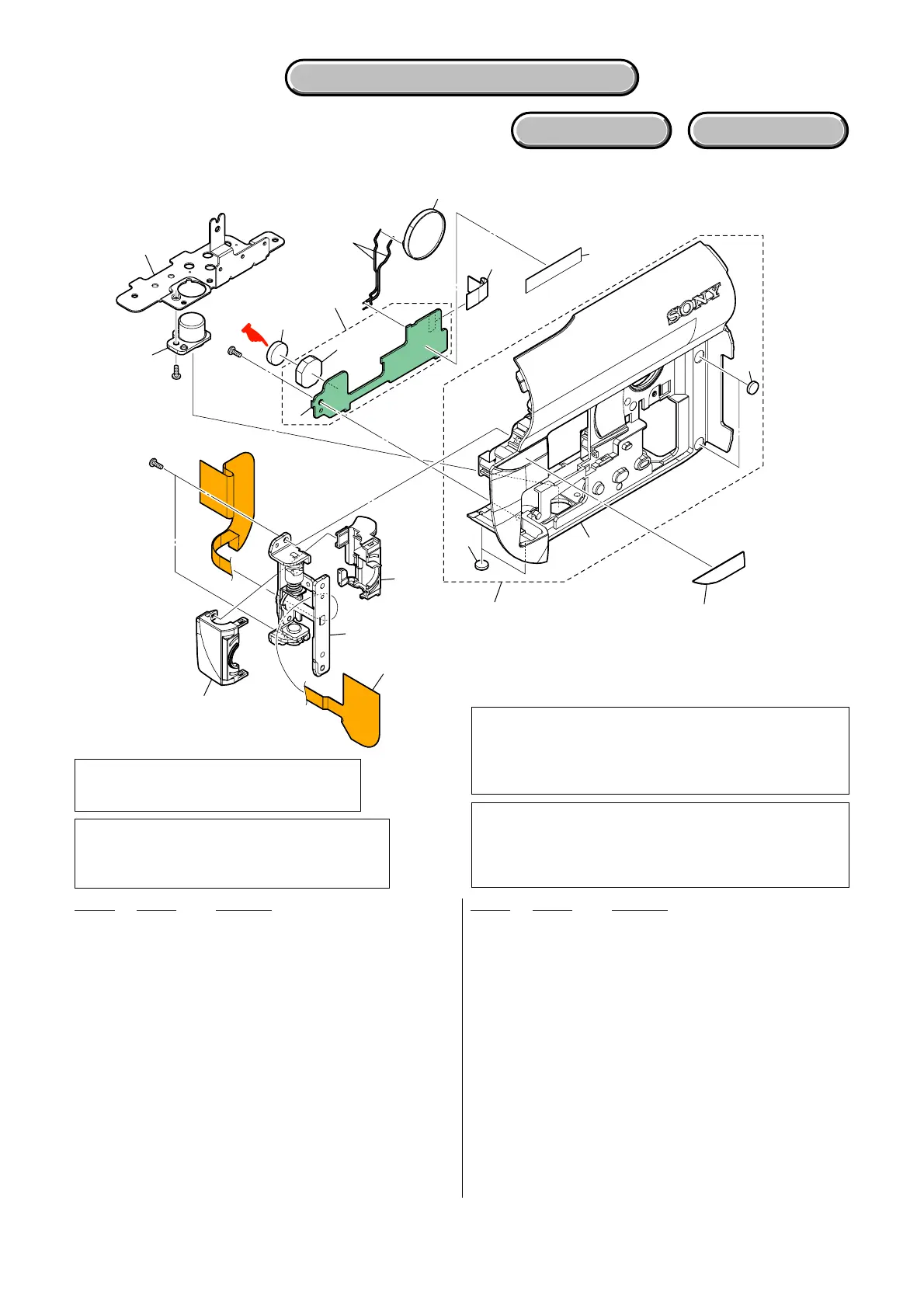

5-1-3. CABINET R SECTION-2
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
* 101 3-290-774-01 SHEET (261), MUFFLE
102 1-871-287-11 FP-573 FLEXIBLE BOARD
103 3-281-846-01 COVER (C), HINGE
(DVD110E/DVD115E/DVD610/DVD610E)
103 3-281-846-11 COVER (C), HINGE (DVD310E/DVD710/DVD710E)
103 3-281-846-21 COVER (C), HINGE (DVD410E/DVD810/DVD810E)
104 X-2187-937-1 HINGE ASSY (281M)
105 3-281-847-01 COVER (M), HINGE
106 A-1519-609-A CABINET (R) ASSY (261) (SERVICE)
(DVD110E/DVD115E/DVD610/DVD610E)
106 A-1519-610-A CABINET (R) ASSY (262) (SERVICE)
(DVD310E/DVD710/DVD710E)
106 A-1519-611-A CABINET (R) ASSY (263) (SERVICE)
(DVD410E/DVD810/DVD810E)
107 2-589-376-01 FOOT (395), RUBBER
108 3-281-841-01 CABINET (R), ORNAMENTAL BELT
109 3-283-643-01 SCREW, TRIPOD
* 110 3-281-851-01 FRAME, BOTTOM
111 A-1439-630-A CK-191 BOARD, COMPLETE
(DVD110E/DVD115E/DVD610/DVD610E)
111 A-1439-643-A CK-192 BOARD, COMPLETE
(DVD310E/DVD710/DVD710E)
111 A-1439-644-A CK-192 BOARD, COMPLETE
(DVD410E/DVD810/DVD810E)
112 1-964-966-11 HARNESS (HN-024)
113 1-833-210-11 CABLE, FLEXIBLE FLAT (FFC-089)
0*BH5801 1-756-615-51 HOLDER, BATTERY (Note)
0 BT901 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note)
SP901 1-825-260-41 LOUD SPEAKER (1.6CM)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#11 3-078-890-11 SCREW, TAPPING (Silver)
• Refer to page 5-1 for mark 0.
108
102
103
104
105
106
107
107
#11
#11
BT901
(Note)
SP901
BH5801
(Note)
#3
ns
ns
109
111
113
101
112
110
! : BT901 (BATTERY, STORAGE, LITHIUM)
Board on the mount position. (See page 4-44, 45
)
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Note: Replace the battery holder (BH5801) together when replac-
ing the lithium battery (BT901) on the CK-191/192 board.
(The battery holder removed once cannot be used again.)
When mounting these parts, mount new battery holder first
and attach new lithium battery next.
Note: CK-191/192基板のリチウム電池（BT901）を交換する場合
はバッテリホルダ（BH5801）も同時に新品に交換して下
さい。（一度使用したバッテリホルダは再使用できませ
ん。）
部品取り付けの際は，先にバッテリホルダを取り付けてか
らリチウム電池を装着してください。
